Vehicle Stability Control System

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

NOTICE:
Turn the ignition switch off before removing parts.

HINT
* If no abnormality is found when inspecting parts, inspect the skid control ECU and ground points for poor contact.
* If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the page for the respective "DTC Code" in the DTC chart.
* When 2 or more DTCs are detected, perform circuit inspection one by one until the problem is identified.
* Inspect the fuse and relay before investigating the trouble areas as shown in the table below.

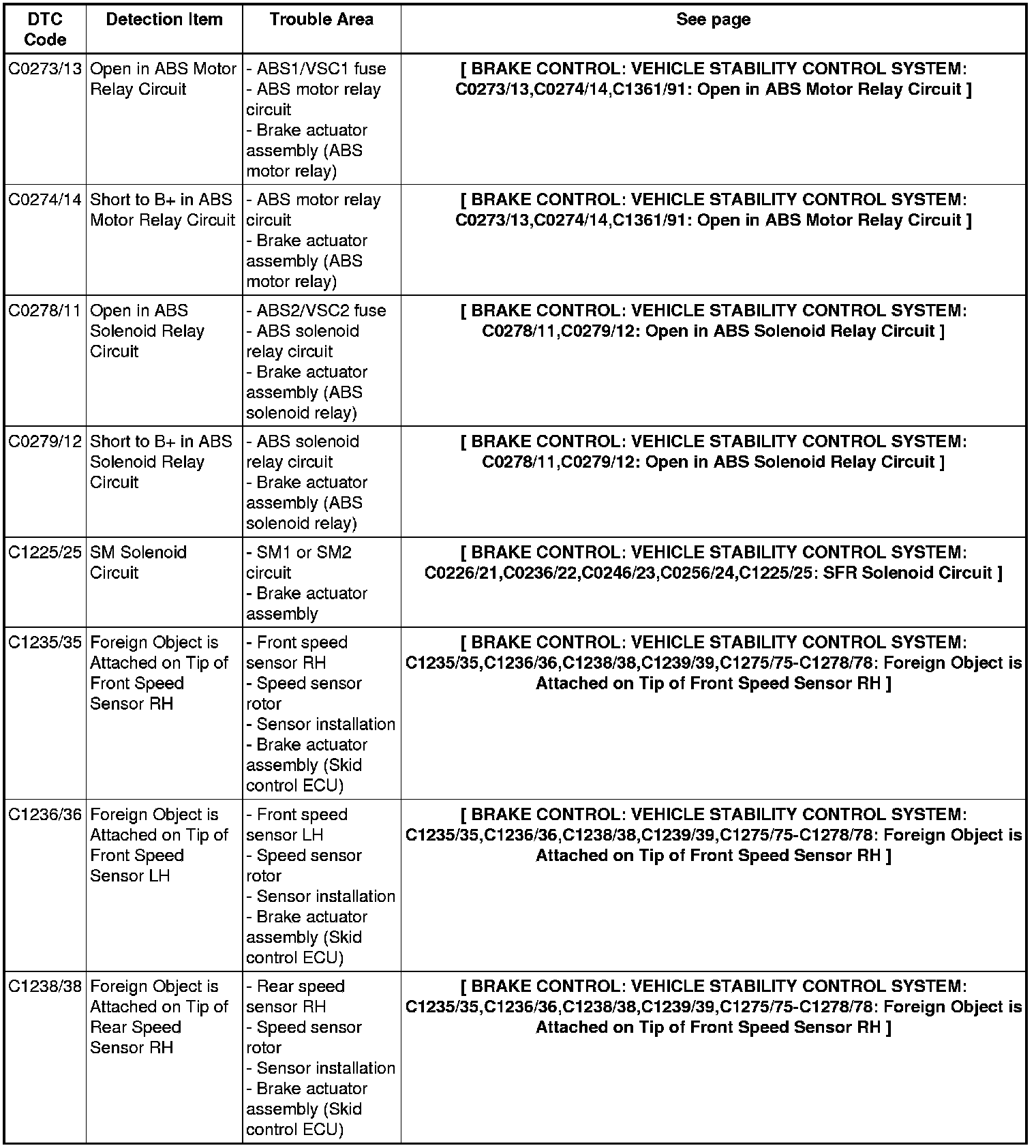

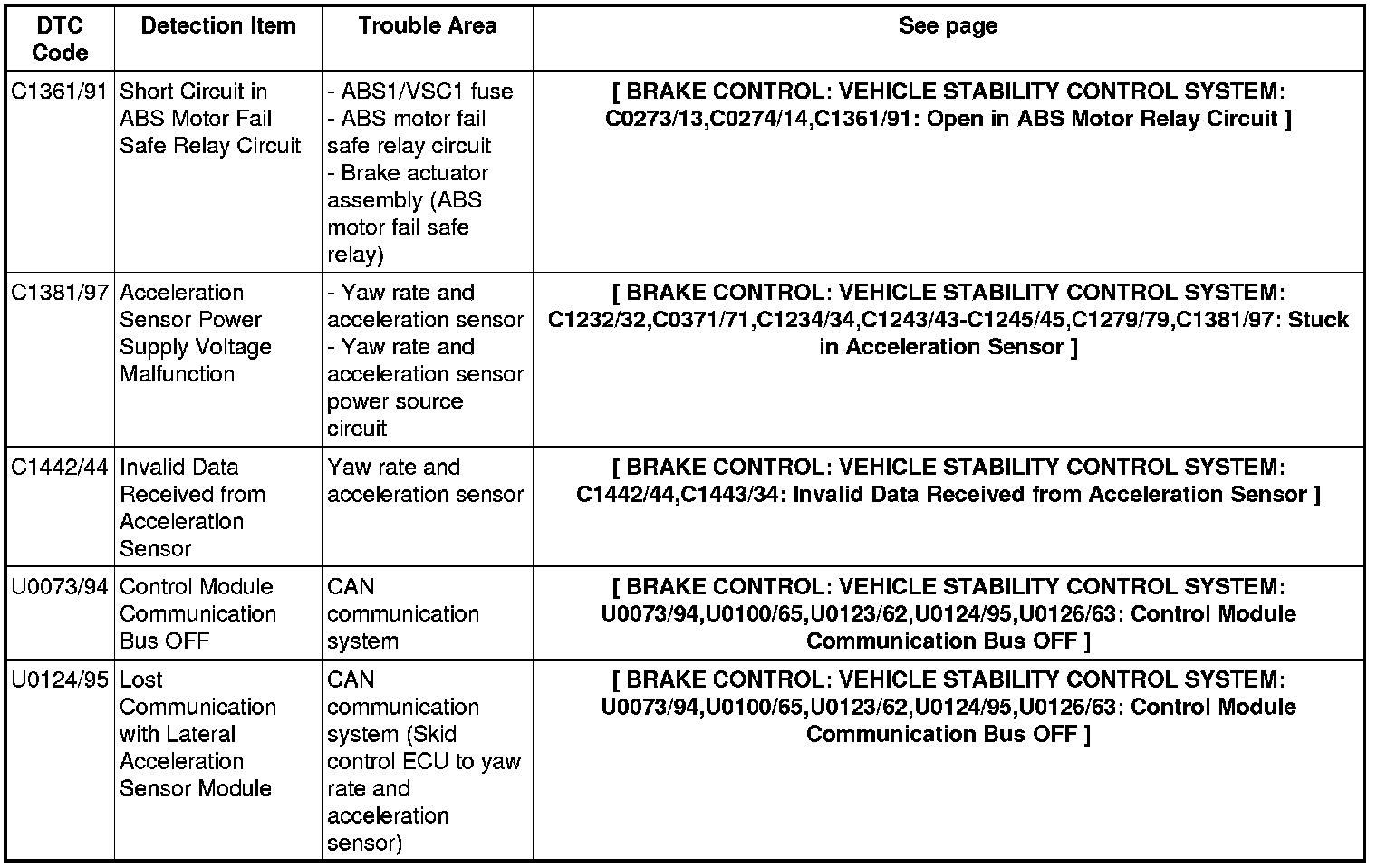

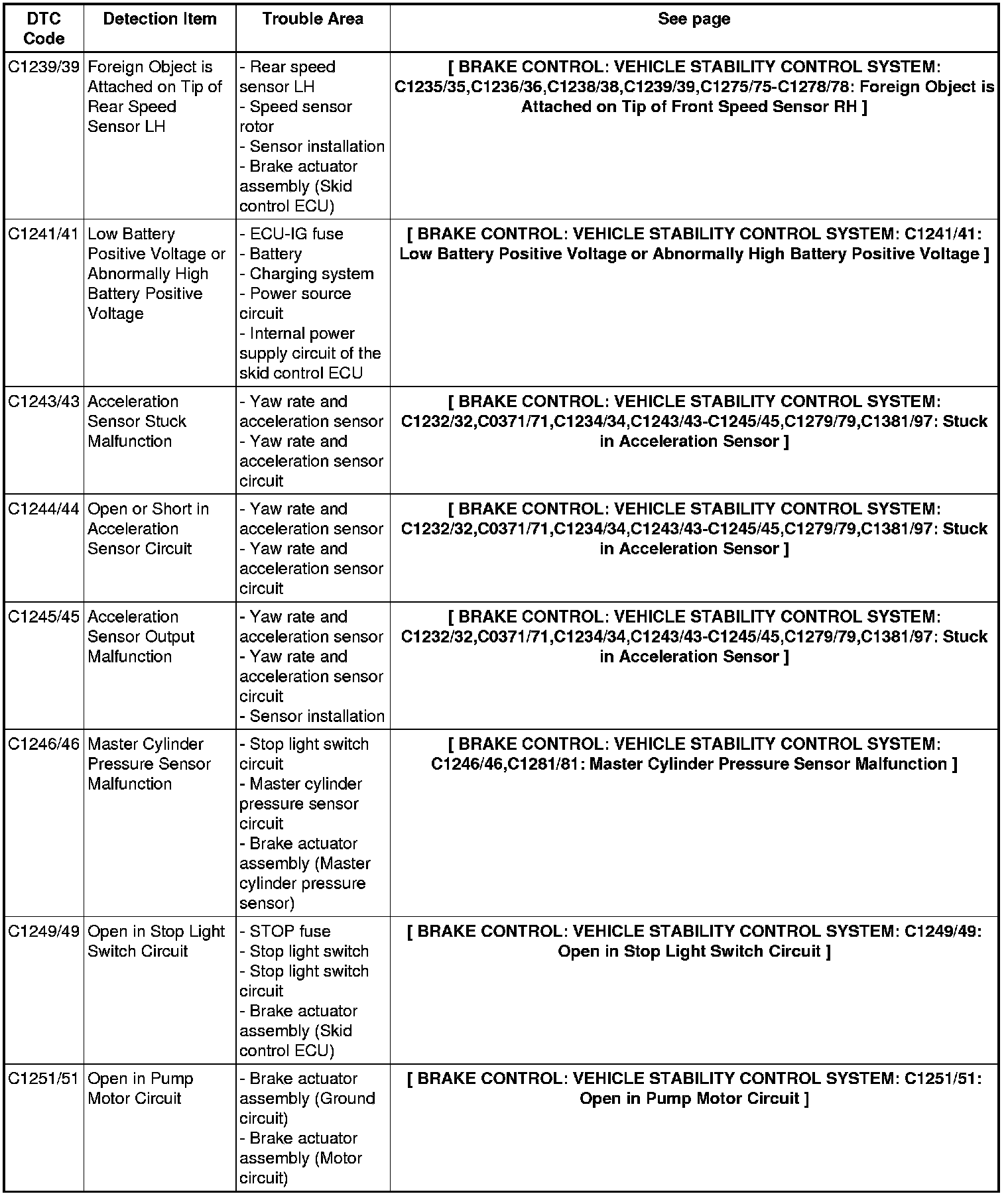

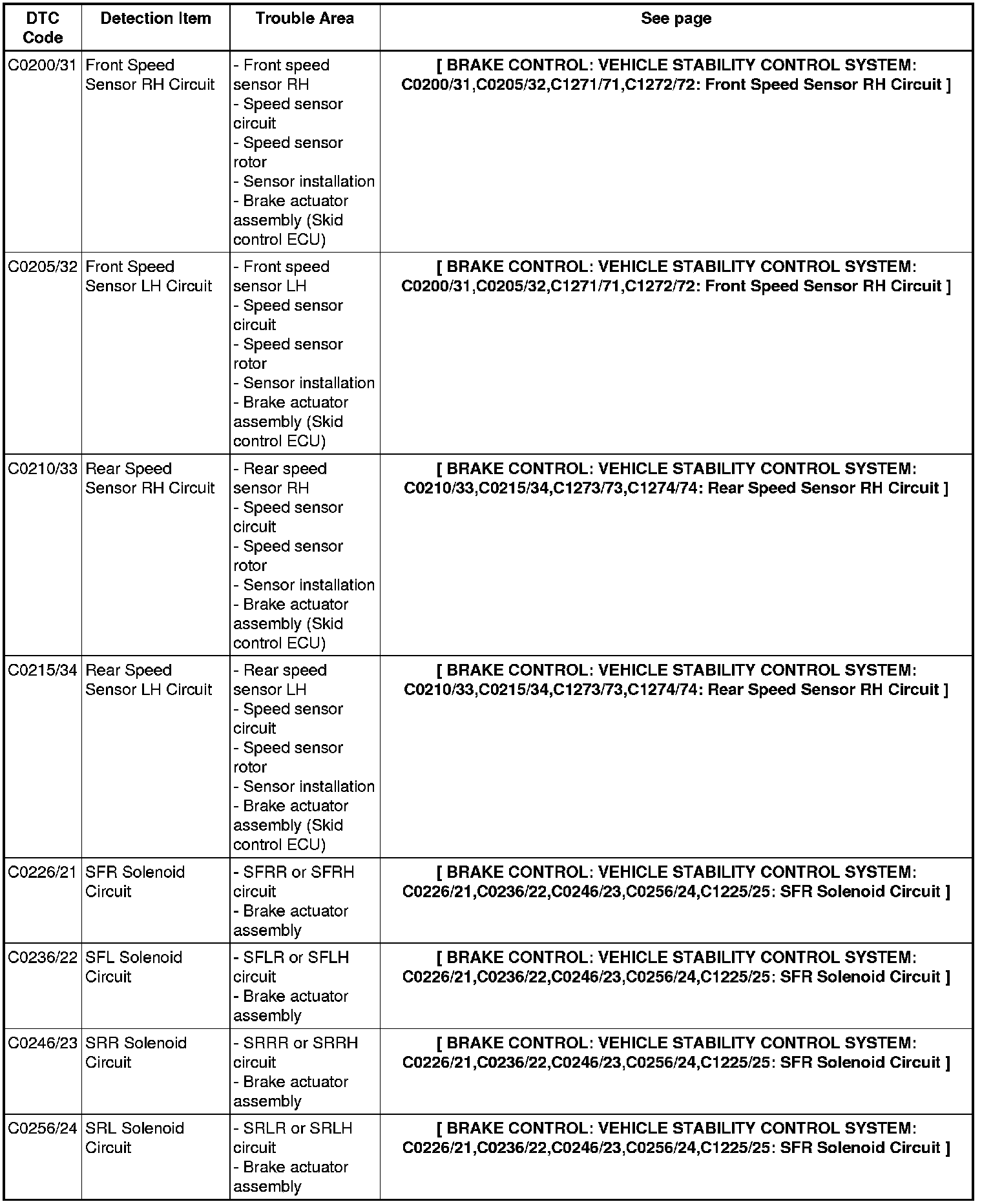

DTC chart of ABS:

















(*1, *2):

Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed:

* (*1):

a. Drive the vehicle at 20 km/h (12 mph) for 30 seconds or more and check that the ABS warning light goes off.

b. Clear the DTC.

* (*2):

a. Keep the vehicle stationary for 5 seconds or more and depress the brake pedal lightly 2 or 3 times.

b. Drive the vehicle at the vehicle speed of 50 km/h (31 mph) and keep depressing the brake pedal strongly for approximately 3 seconds.

c. Repeat the above operation 3 times or more and check that the ABS warning light goes off.

d. Clear the DTC.

HINT
In some cases, the Techstream cannot be used when the ABS warning light remains on.

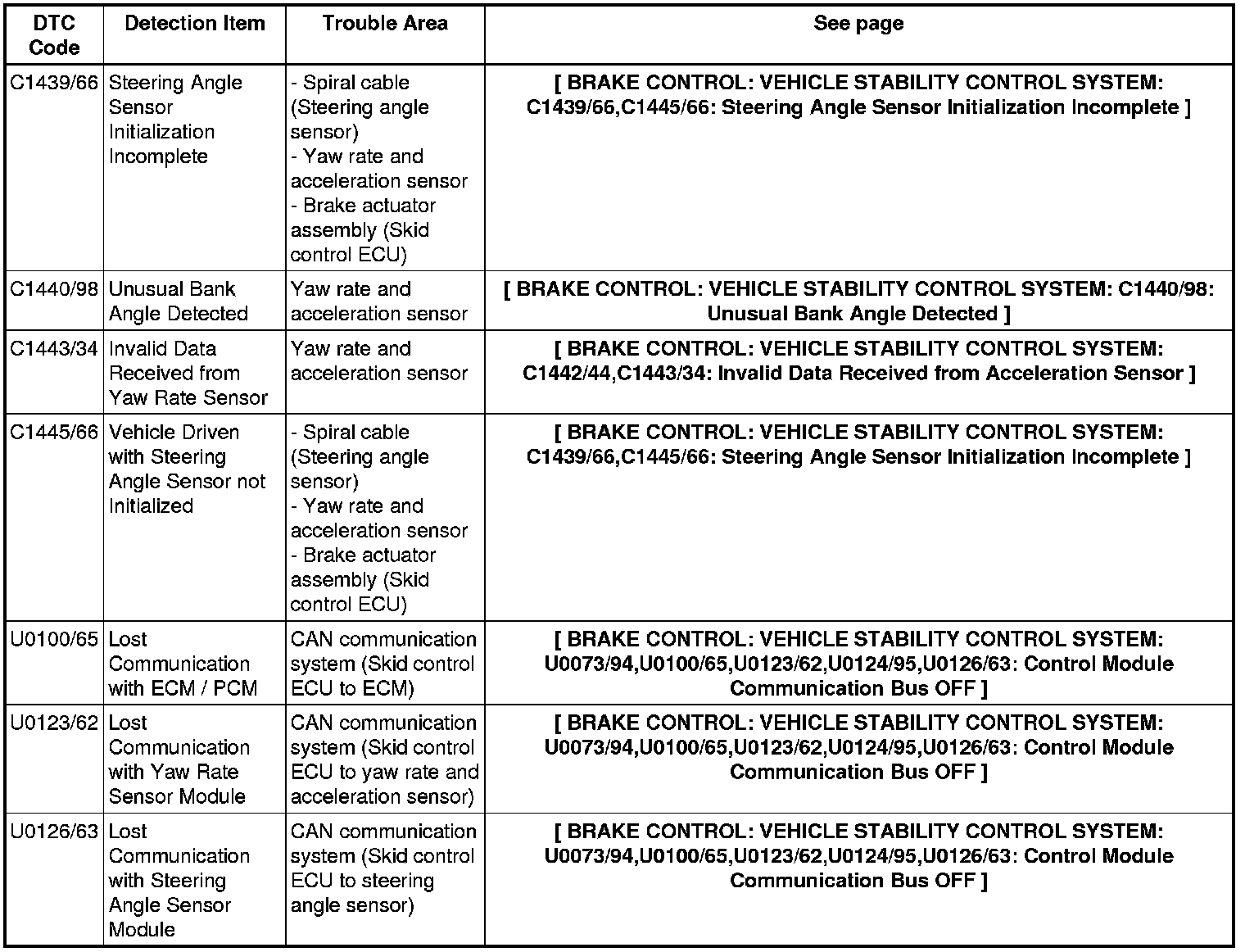

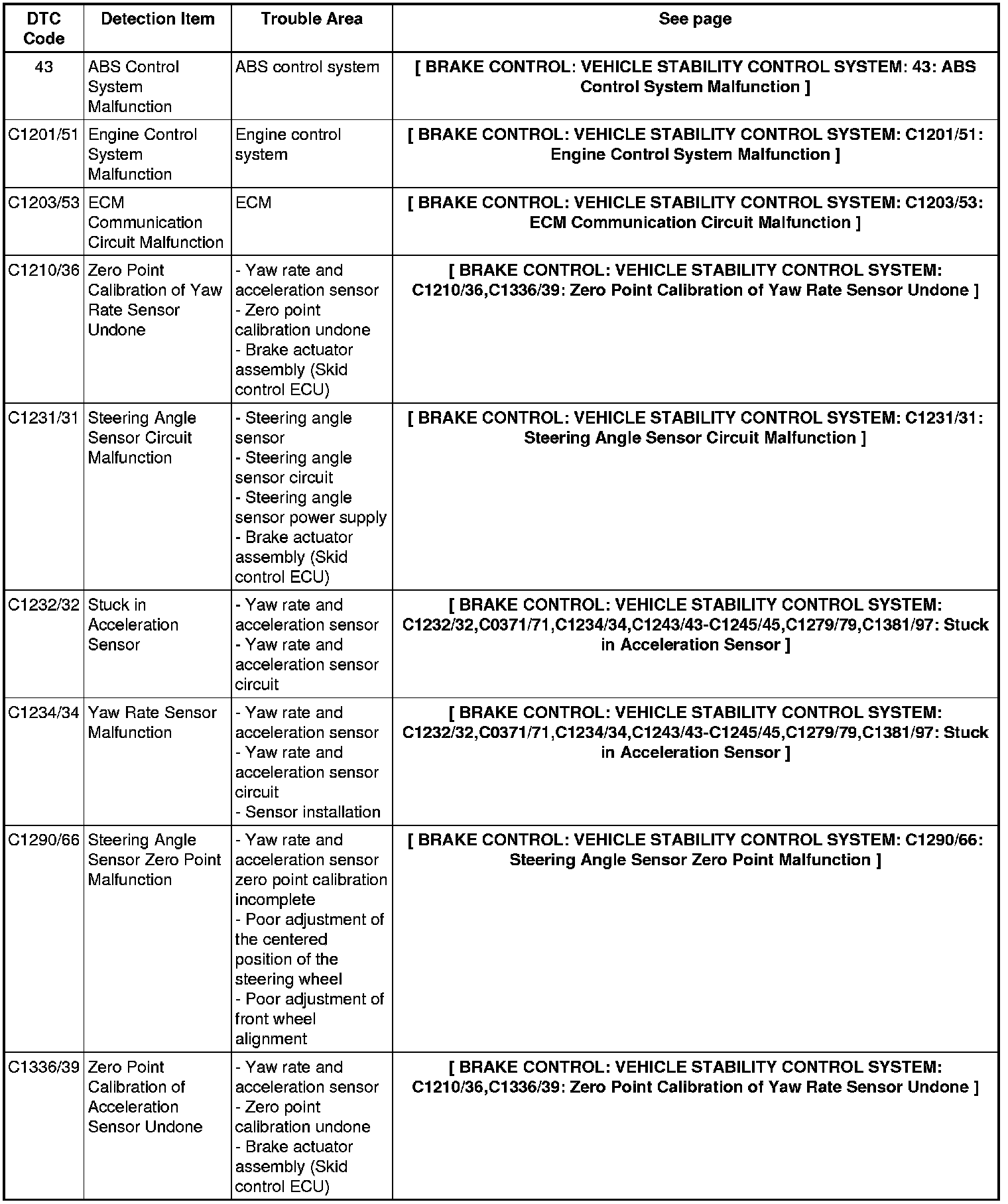

DTC chart of VSC:









HINT
In some cases, the Techstream cannot be used when the VSC OFF indicator light remains on.

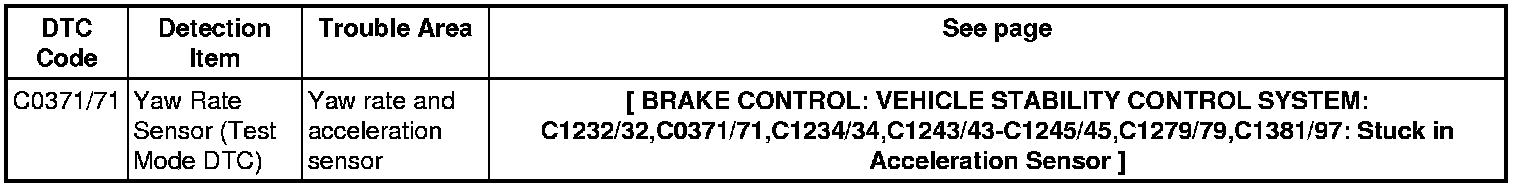

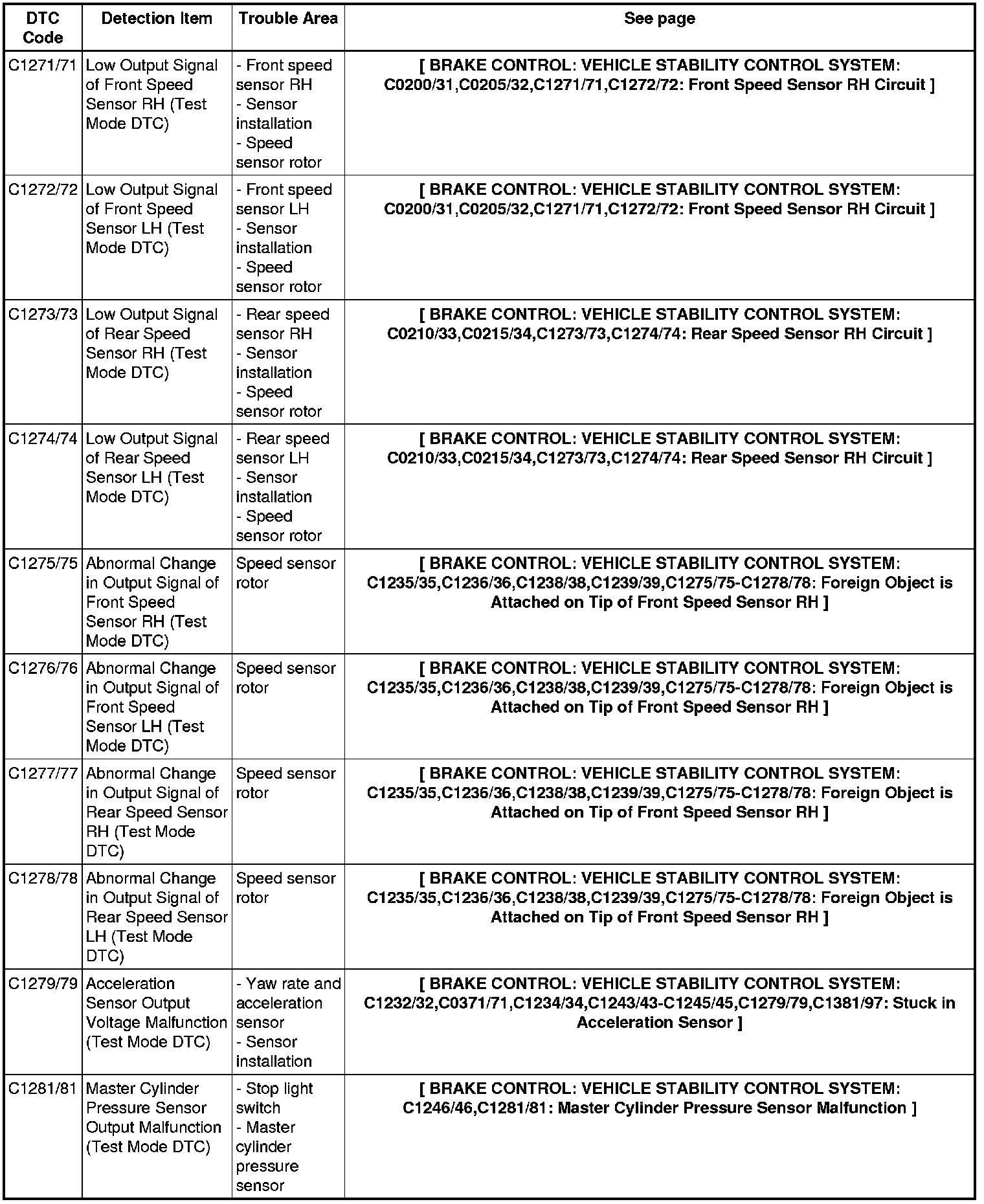

Test Mode DTC of ABS:





Test Mode DTC of VSC:
