Installation

WIPER / WASHER: REAR WIPER MOTOR: INSTALLATION

1. INSTALL REAR WIPER MOTOR GROMMET

(a) Apply MP grease to the entire inner surface of the wiper motor grommet.

HINT
Make sure that the hole does not get clogged with grease and the grooves in the grommet are filled with grease.

Text in Illustration

(b) Install the rear wiper motor grommet with the position mark facing frontward as shown in the illustration.

Text in Illustration

2. INSTALL REAR WIPER MOTOR AND BRACKET ASSEMBLY

(a) Temporarily install the rear wiper motor and bracket assembly with the 3 bolts.

(b) Tighten the 3 bolts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(c) Connect the connector.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. INSTALL REAR WIPER ARM

(a) Operate the rear wiper, and stop the rear wiper motor at the automatic stop position.

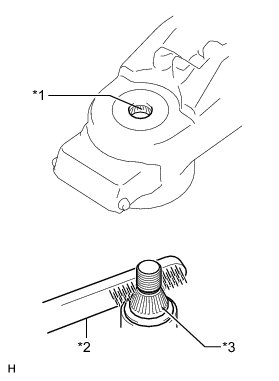

(b) Clean the serrations with a wire brush.

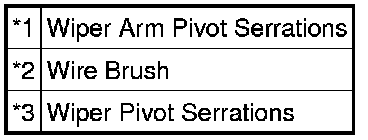

Text in Illustration

(d) Install the rear wiper arm with the nut.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(e) Close the wiper arm head cap.

5. INSTALL BACK DOOR TRIM BOARD ASSEMBLY Reassembly

6. INSTALL BACK DOOR SIDE GARNISH LH Reassembly

7. INSTALL BACK DOOR SIDE GARNISH RH Reassembly

8. INSTALL BACK DOOR CENTER GARNISH Reassembly
