Replacement

WIPER / WASHER: REAR WIPER RUBBER: REPLACEMENT

1. REMOVE REAR WIPER BLADE





(a) Detach the claw as shown in the illustration.





(b) Remove the rear wiper blade as shown in the illustration.

NOTICE:
Do not fold the wiper arm with the wiper blade removed. The arm tip may damage the windshield surface.

2. REMOVE REAR WIPER RUBBER





(a) Detach the head part (large side) of the wiper rubber from the wiper blade.

(b) Remove the rear wiper rubber in the direction indicated by the arrow in the illustration.





Text in Illustration





NOTICE:
Do not pull out the wiper rubber forcibly. Doing so will deform the backing plate or damage the blade claw.

(c) Remove the 2 wiper rubber backing plates from the wiper rubber.

3. INSTALL REAR WIPER RUBBER

(a) Install the 2 packing plates to the rubber.





Text in Illustration





NOTICE:
Install the packing plates facing the proper direction.

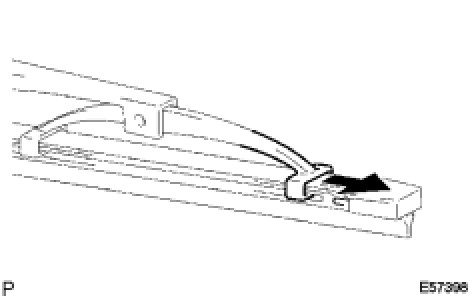

(b) Install the rear wiper rubber to the claw of the wiper blade in the direction indicated by the arrow in the illustration.





HINT
Install the rear wiper rubber so that the head part (large side) of the wiper rubber faces the arm axle side.

(c) Attach the head part (large side) of the rear wiper rubber to the rear end side claw of the wiper blade.





Text in Illustration





NOTICE:
Push the wiper blade into the grooves of the rear wiper rubber to attach them completely.

4. INSTALL REAR WIPER BLADE

(a) Attach the claw to install the rear wiper blade.
