Washer Nozzle (For Rear)

WIPER / WASHER: WASHER NOZZLE (for Rear): ON-VEHICLE INSPECTION

1. INSPECT REAR WASHER NOZZLE

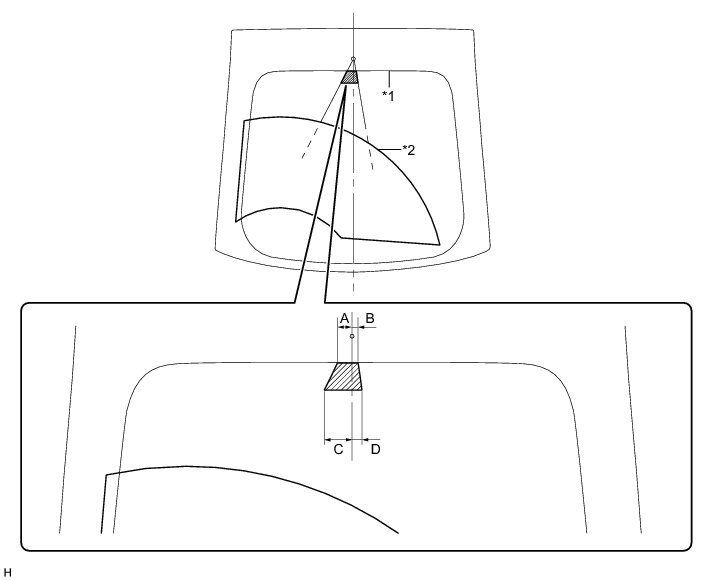

(a) With the engine running, check that the center stream of washer fluid sprays on the windshield within the hatched area shown in the illustration.

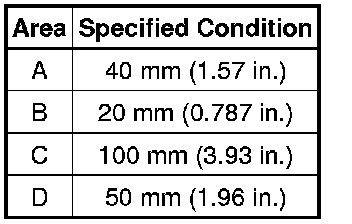

Standard:

Washer fluid hits the windshield in the area shown in the illustration.

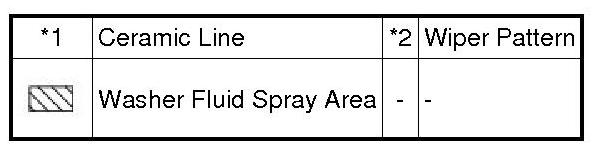

Text in Illustration





Standard:





If the result is not as specified, replace the rear washer nozzle.
