Washer Nozzle (For Front)

WIPER / WASHER: WASHER NOZZLE (for Front): ON-VEHICLE INSPECTION

1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

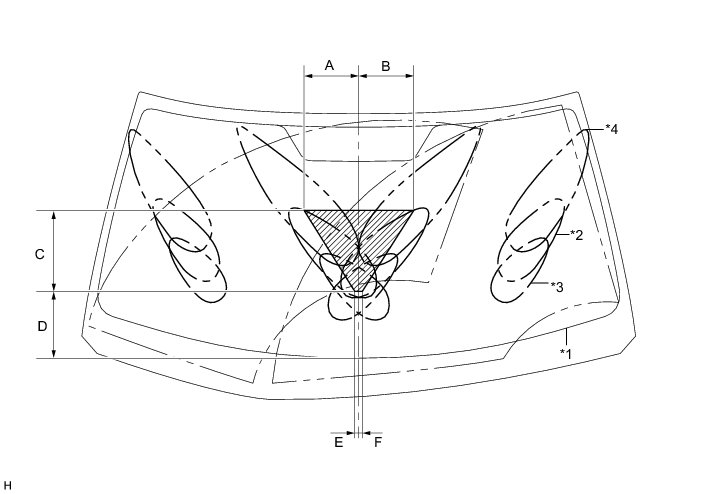

(a) With the engine running, check that the center stream of washer fluid sprays on the windshield within the hatched area shown in the illustration.

OK:

Washer fluid hits the windshield in the area shown in the illustration.

If the result is not as specified, replace the washer nozzle.

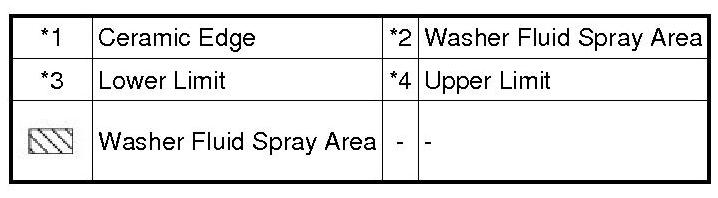

Text in Illustration

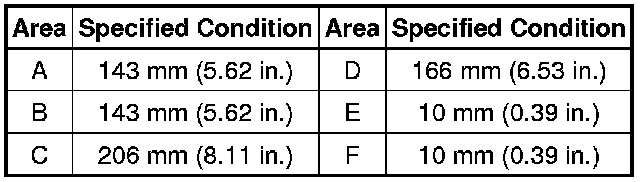

Standard:
