Windshield Washer Spray Nozzle: Adjustments

WIPER / WASHER: WASHER NOZZLE (for Front): ADJUSTMENT

PRECAUTION OF WASHER NOZZLE ADJUSTMENT

(a) Do not clean or adjust the washer nozzle with a safety pin, etc. for the following reasons:

(1) The washer nozzle tip is made of resin and could be damaged.

(2) Adjustment is not necessary for this spray-type washer nozzle. If it is necessary to change the nozzle angle, replace the washer nozzle with one that has a different nozzle angle.

(b) If the washer nozzle is clogged with wax, etc., remove it and clean the nozzle hole with a soft resin brush or other cleaning tool.

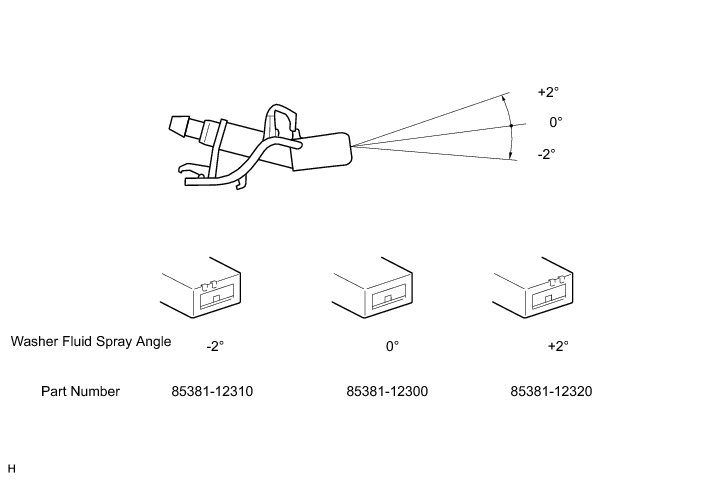

1. ADJUST WASHER NOZZLE SUB-ASSEMBLY

(a) Select a washer nozzle sub-assembly so that the washer fluid spray area is as specified in On-vehicle Inspection.
