Home >> Scion >> 2011 >> tC L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Motor >> Service and Repair >> Washer Motor (For Front Side) >> Components

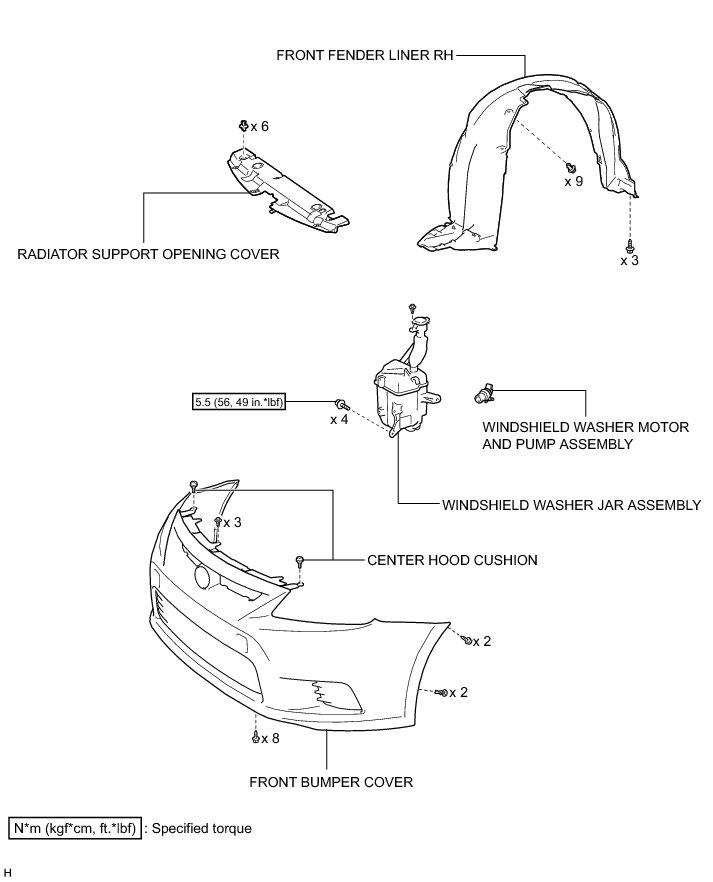

Components





WIPER / WASHER: WASHER MOTOR (for Front Side): COMPONENTS
