Remote Up / Down Function Does Not Operate

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: Remote Up / Down Function does not Operate
- Remote Up / Down Function does not Operate

DESCRIPTION

With the ignition switch ON, the power window regulator master switch transmits remote switch signals to the regulator switches of the passenger side door power window. Then, each regulator switch drives its respective power window regulator motor.

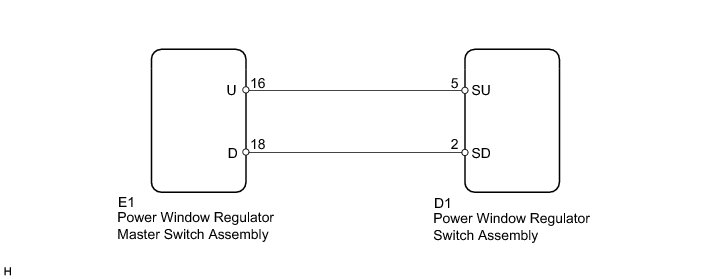

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (WINDOW LOCK SWITCH)





(a) Turn the window lock switch off and operate the switches on the master switch. Check that the remote up/down function operates normally.

OK:

Remote up/down function operates normally.

NG -- CHECK MANUAL UP/DOWN FUNCTION

OK -- END

2. CHECK MANUAL UP/DOWN FUNCTION

(a) Check that the passenger side door power window manual up/down function operates normally.

OK:

Manual up/down function operates normally.

NG -- CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY - POWER WINDOW REGULATOR SWITCH ASSEMBLY)

OK -- REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Removal

3. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY - POWER WINDOW REGULATOR SWITCH ASSEMBLY)

(a) Disconnect the E1 power window regulator master switch assembly connector.

(b) Disconnect the D1 power window regulator switch assembly connector.

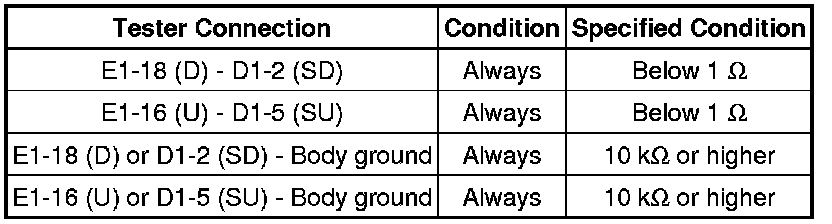

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY Removal
