Installation

EB60 MANUAL TRANSMISSION / TRANSAXLE: TRANSMISSION CONTROL CABLE: INSTALLATION

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Put the transmission control cable into the cabin and connect the transmission control cable with the 2 nuts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(b) Connect the transmission control cable support with the bolt.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(c) Connect the 2 transmission control cables to the control cable bracket with 2 new clips (A), and connect the 2 cable ends to the control shaft lever with 2 new clips (B).





Text in Illustration

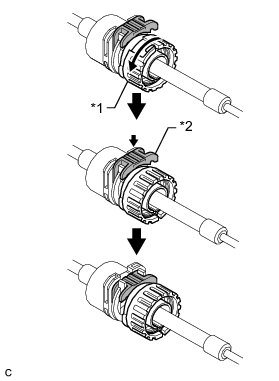

(d) Turn the nut of the transmission control cable approximately 270° counterclockwise. While holding the nut in place, push in the stopper securely.





Text in Illustration

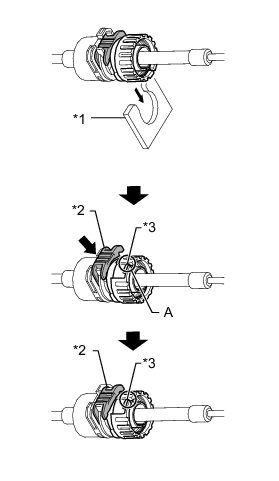

(e) Install the outer part of the transmission control cable to the shift lever retainer. Check that the spring is positioned at "A" and push in the stopper.

HINT
If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

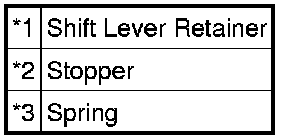

Text in Illustration





(f) Connect the shift cable to the shift lever assembly.

HINT
Connect the select cable during the ''Adjust Transmission Control Select Cable'' procedure.

2. ADJUST TRANSMISSION CONTROL SELECT CABLE Adjustments

3. INSTALL REAR CONSOLE BOX ASSEMBLY

Installation

4. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR

(a) Install the heat insulator with the 3 nuts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

5. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation

6. INSTALL FRONT FLOOR CENTER BRACE Installation

7. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

8. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

9. INSPECT FOR EXHAUST GAS LEAK Installation
