Valve Body: Testing and Inspection

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: INSPECTION

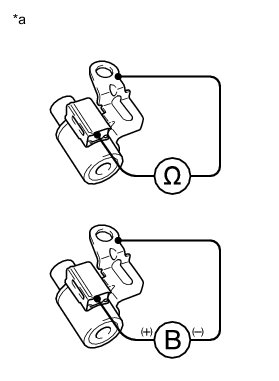

1. INSPECT SHIFT SOLENOID VALVE SL

(a) Measure the resistance according to the value(s) in the table below.





Text in Illustration





Standard Resistance:





* If the result is not as specified, replace shift solenoid valve SL.

(b) Connect the positive (+) lead of the battery to the terminal of the solenoid valve connector and the negative (-) lead to the solenoid body. Then check that the valve moves and makes an operating sound.

NOTICE:
When using battery voltage during the inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.

OK:

Valve moves and makes an operating sound.

* If the result is not as specified, replace shift solenoid valve SL.

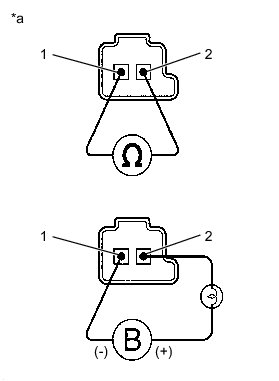

2. INSPECT SHIFT SOLENOID VALVE SLT

(a) Measure the resistance according to the value(s) in the table below.





Text in Illustration





Standard Resistance:





If the result is not as specified, replace the shift solenoid valve SLT.

(b) Connect the positive (+) lead of the battery with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating sound.

NOTICE:
When using battery voltage during the inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.

OK:

Valve moves and makes an operating sound.

If the result is not as specified, replace shift solenoid valve SLT.

3. INSPECT SHIFT SOLENOID VALVE SLU

HINT
Refer to Inspect Shift Solenoid Valve SLT.

4. INSPECT SHIFT SOLENOID VALVE SL1

HINT
Refer to Inspect Shift Solenoid Valve SLT.

5. INSPECT SHIFT SOLENOID VALVE SL2

HINT
Refer to Inspect Shift Solenoid Valve SLT.

6. INSPECT SHIFT SOLENOID VALVE SL3

HINT
Refer to Inspect Shift Solenoid Valve SLT.

7. INSPECT SHIFT SOLENOID VALVE SL4

HINT
Refer to Inspect Shift Solenoid Valve SLT.
