Reassembly

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: REASSEMBLY

1. INSTALL SHIFT SOLENOID VALVE SL4

(a) Coat shift solenoid valve SL4 with ATF.





(b) Install shift solenoid valve SL4 and the lock plate to the transmission valve body with the bolt.

Text in Illustration





Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

2. INSTALL SHIFT SOLENOID VALVE SL3

(a) Coat shift solenoid valve SL3 with ATF.





(b) Install shift solenoid valve SL3 and the lock plate to the transmission valve body with the bolt.

Text in Illustration





Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

3. INSTALL SHIFT SOLENOID VALVE SLU

(a) Coat shift solenoid valve SLU with ATF.





(b) Install shift solenoid valve SLU to the transmission valve body.

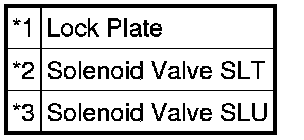

Text in Illustration





4. INSTALL SHIFT SOLENOID VALVE SLT

(a) Coat shift solenoid valve SLT with ATF.

(b) Install shift solenoid valve SLT and the lock plate to the transmission valve body with the bolt.

Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

5. INSTALL SHIFT SOLENOID VALVE SL1

(a) Coat shift solenoid valve SL1 with ATF.





(b) Install shift solenoid valve SL1 to the transmission valve body.

Text in Illustration





6. INSTALL SHIFT SOLENOID VALVE SL2

(a) Coat shift solenoid valve SL2 with ATF.

(b) Install shift solenoid valve SL2, the clamp and lock plate to the transmission valve body with the 2 bolts.

Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

7. INSTALL SHIFT SOLENOID VALVE SL

(a) Coat shift solenoid valve SL with ATF.





Text in Illustration





(b) Install shift solenoid valve SL to the transmission valve body with the bolt.

Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

8. INSTALL TRANSMISSION WIRE Installation

9. INSTALL SPEED SENSOR Installation
