Shift Paddle Switch

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT PADDLE SWITCH: INSPECTION

1. INSPECT SHIFT PADDLE SWITCH

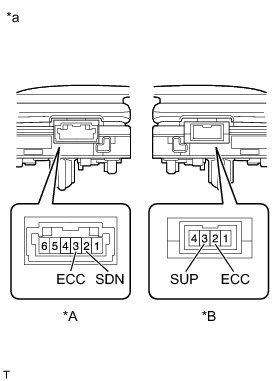

(a) Measure the resistance between each terminal when the paddle shift is moved to each position.





Standard Resistance:

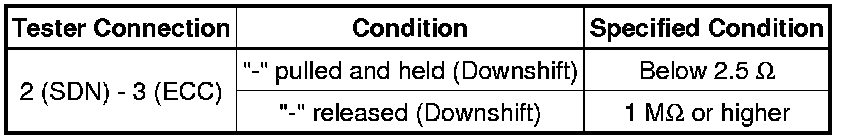

for LH

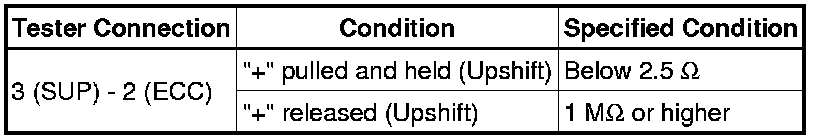

for RH





If the resistance is not as specified, replace the shift paddle switch.

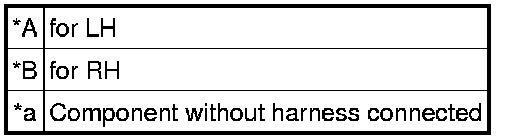

Text in Illustration
