U760E AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT LEVER: INSTALLATION

1. INSTALL SHIFT LEVER ASSEMBLY

NOTICE:
Check that the park/neutral position switch and shift lever are in neutral.

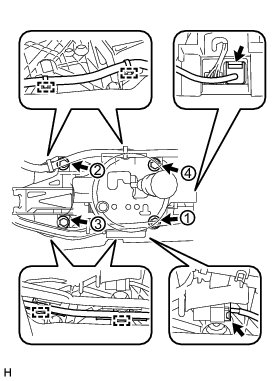

(a) Install the shift lever with the 4 bolts. Tighten the bolts in the order shown in the illustration.

Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)

(b) Connect the 2 connectors and attach the 4 clamps to the shift lever.

2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

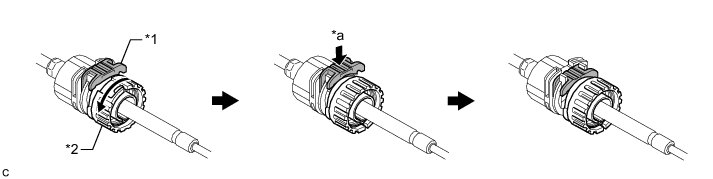

(a) Turn the nut of the transmission control cable approximately 270° counterclockwise. While holding the nut in place, securely push the stopper in all the way.

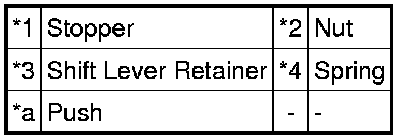

Text in Illustration

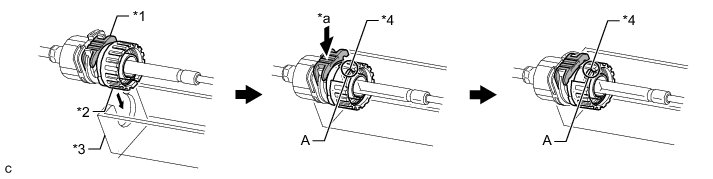

(b) Install the outer part of the transmission control cable assembly to the shift lever retainer. Check that the spring is positioned at "A" and push in the stopper.





Text in Illustration





HINT
If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

(c) Push the 2 claws together at the top of the transmission control cable lock piece. While holding the 2 claws together, push the 2 lugs on the bottom of the lock piece toward each other and upward to pull out the lock piece.





Text in Illustration





(d) Apply a light coat of lithium soap base glycol grease to the entire inner circumference of the hole at the end of the transmission control cable assembly.





(e) Connect the end of the cable to the shift lever assembly.

NOTICE:
* Make sure that the lock piece is pulled up.
* Push on the end of the cable all the way to the base of the pin.

Text in Illustration





(f) Push the lock piece into the adjuster case.





Text in Illustration





NOTICE:
Securely push in the lock piece until it locks.

3. INSPECT SHIFT LEVER POSITION On-Vehicle Inspection

4. INSTALL FRONT CONSOLE BOX SUB-ASSEMBLY
