Installation

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: TRANSMISSION CONTROL CABLE: INSTALLATION

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

NOTICE:
Before installing the transmission control cable assembly, check that the park/neutral position switch and shift lever are in neutral.

(a) Put the transmission control cable assembly into the cabin and connect the transmission control cable assembly with the 2 nuts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(b) Connect the transmission control cable support with the bolt.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(c) Connect the transmission control cable assembly to the bracket with a new clip.

(d) Connect the transmission control cable assembly to the control shaft lever with the nut.

Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)

(e) Connect the transmission control cable assembly.

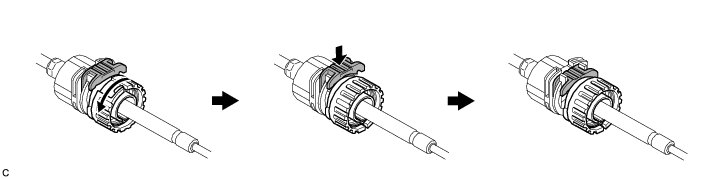

(1) Turn the nut of the transmission control cable approximately 270° counterclockwise. While holding the nut in place, securely push the stopper in all the way.

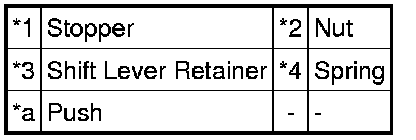

Text in Illustration





(2) Install the outer part of the transmission control cable assembly to the shift lever retainer. Check that the spring is positioned at "A" and push in the stopper.





Text in Illustration





HINT
If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

(3) Push the 2 claws together at the top of the transmission control cable lock piece. While holding the 2 claws together, push the 2 lugs on the bottom of the lock piece toward each other and upward to pull out the lock piece.





Text in Illustration





(4) Apply a light coat of lithium soap base glycol grease to the entire inner circumference of the hole at the end of the transmission control cable assembly.





Text in Illustration





(5) Push the lock piece into the adjuster case.





Text in Illustration





2. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR

(a) Install the front No. 1 floor heat insulator with the 3 nuts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

3. INSTALL CENTER EXHAUST PIPE ASSEMBLY Installation

4. INSTALL FRONT FLOOR CENTER BRACE Installation

5. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

6. INSTALL AIR CLEANER CAP AND HOSE Installation

7. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

8. INSTALL CONSOLE BOX Installation

9. INSPECT SHIFT LEVER POSITION Adjustments

10. ADJUST SHIFT LEVER POSITION Adjustments
