Reassembly

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: OIL PUMP: REASSEMBLY

1. INSTALL FRONT OIL PUMP OIL SEAL

(a) Coat the lip of a new front oil pump oil seal with a small amount of MP grease.





(b) Using SST and a hammer, install the front oil pump oil seal to the front oil pump and gear body.

SST : 09350-32014

09351-32140

NOTICE:
The seal end should be level with the outer edge of the front oil pump and gear body sub-assembly.

2. INSTALL FRONT OIL PUMP BODY O-RING

(a) Coat a new front oil pump body O-ring with ATF and install it to the front oil pump and gear body.

NOTICE:
Make sure that the O-ring is not twisted.

3. INSTALL FRONT OIL PUMP DRIVEN GEAR

(a) Coat the front oil pump driven gear with ATF and install it to the front oil pump and gear body with the marked side up.

4. INSTALL FRONT OIL PUMP DRIVE GEAR

(a) Coat the front oil pump drive gear with ATF and install it to the front oil pump and gear body with the marked side up.

5. INSTALL STATOR SHAFT ASSEMBLY

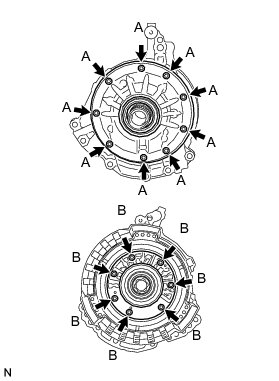

(a) Align the knock pins of the stator shaft assembly with the holes in the front oil pump and gear body and temporarily install the stator shaft assembly to the front oil pump and gear body with the 16 bolts.

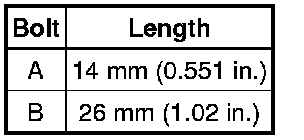

Bolt Length





(b) Using a T30 "TORX" socket wrench, tighten the 16 bolts.

Torque : 9.3 Nm (95 kgf-cm, 82 in-lbf)

6. INSPECT OIL PUMP ASSEMBLY Oil Pump
