Installation

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING RESET SWITCH: INSTALLATION

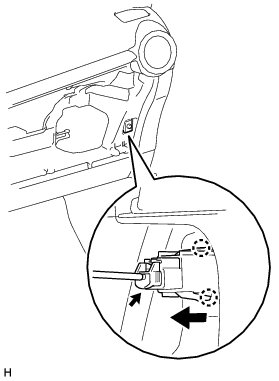

1. INSTALL TIRE PRESSURE WARNING RESET SWITCH

(a) Attach the 2 claws to install the tire pressure warning reset switch to the instrument panel assembly.





(b) Connect the connector.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. INSPECT TIRE PRESSURE WARNING SYSTEM

Test Mode Procedure
