Seat Belt Systems





SPECIFICATIONS: SEAT BELT: TORQUE SPECIFICATIONS

FRONT SEAT INNER BELT ASSEMBLY:

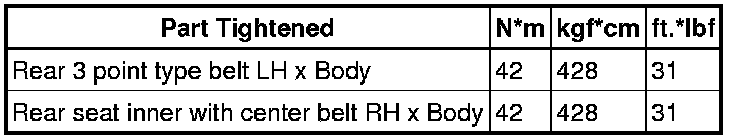

REAR SEAT INNER BELT ASSEMBLY:

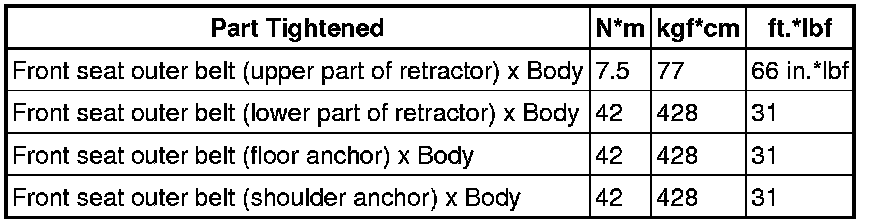

FRONT SEAT OUTER BELT ASSEMBLY:

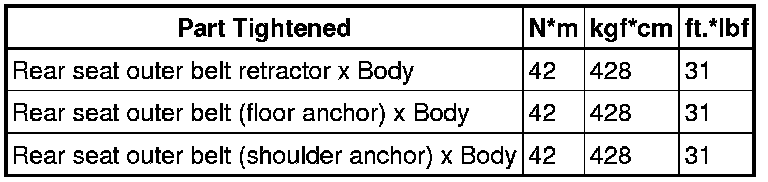

REAR SEAT OUTER BELT ASSEMBLY:

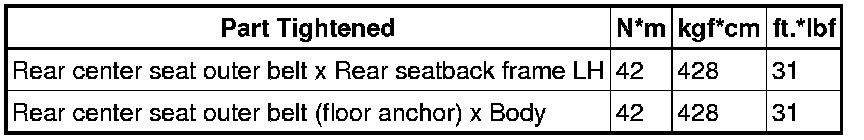

REAR CENTER SEAT OUTER BELT ASSEMBLY:
