Service Data





SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: SERVICE DATA

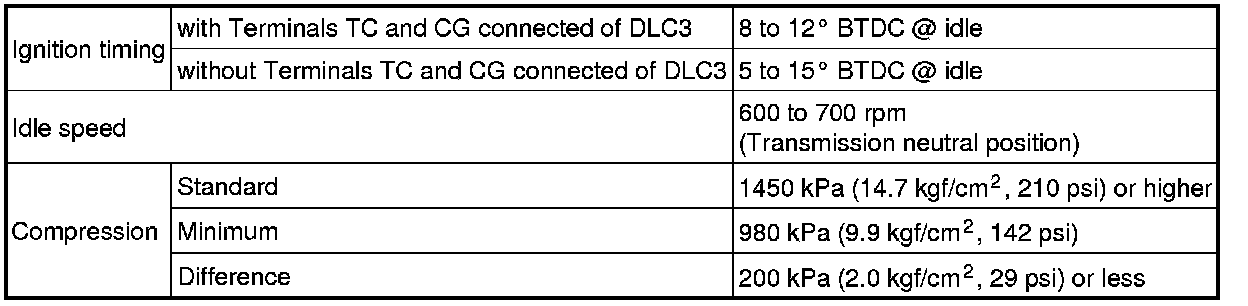

Engine

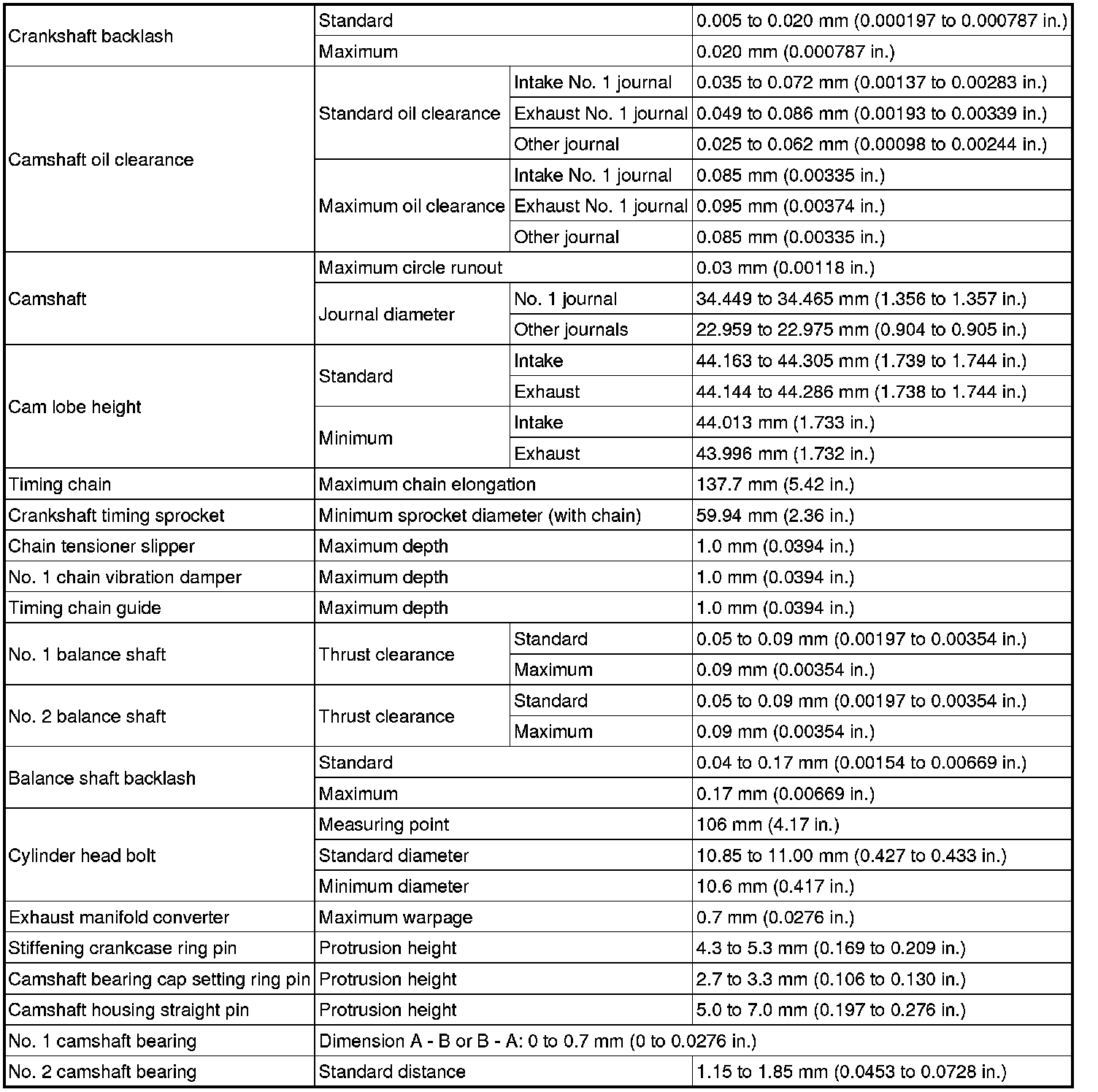

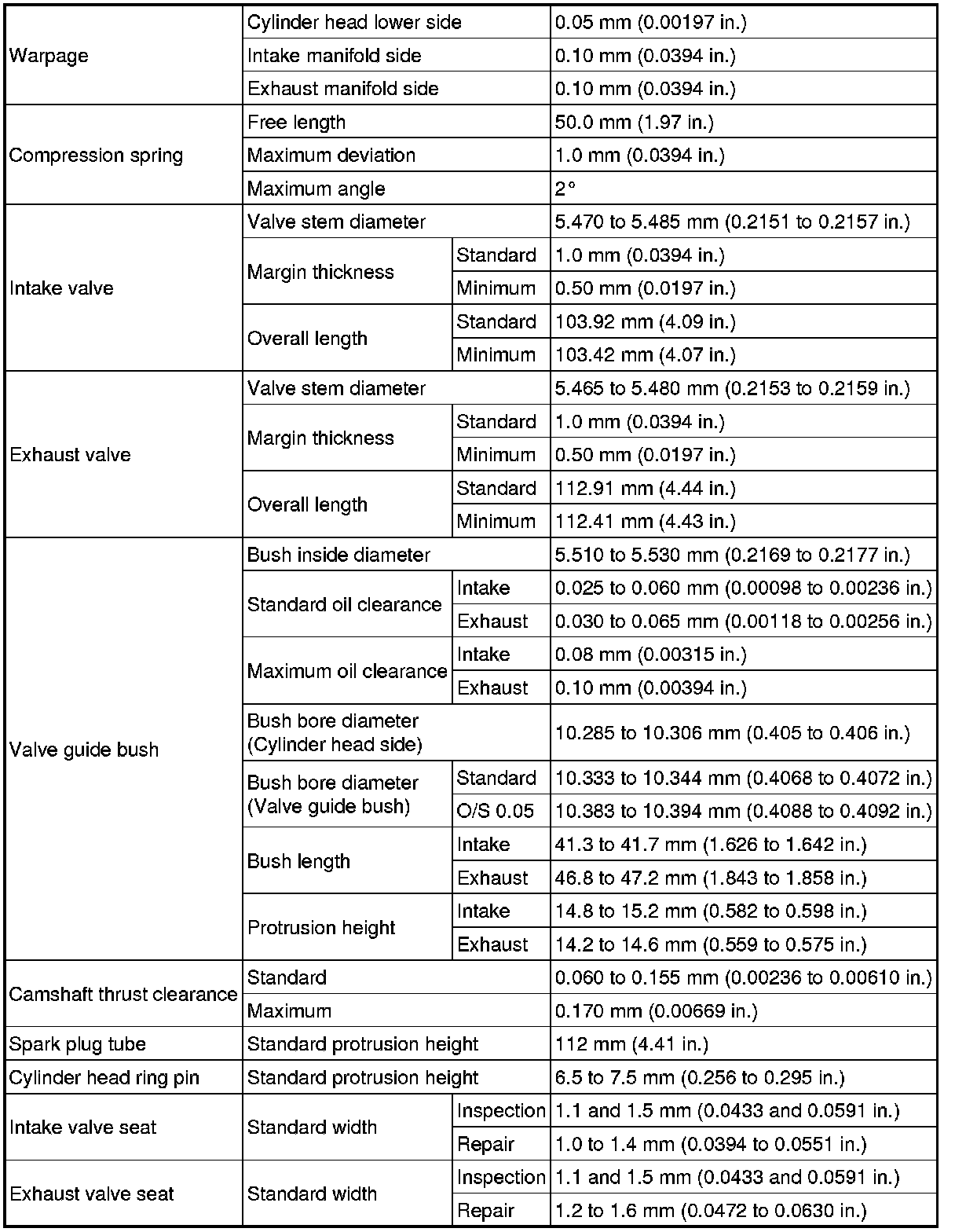

Cylinder Head

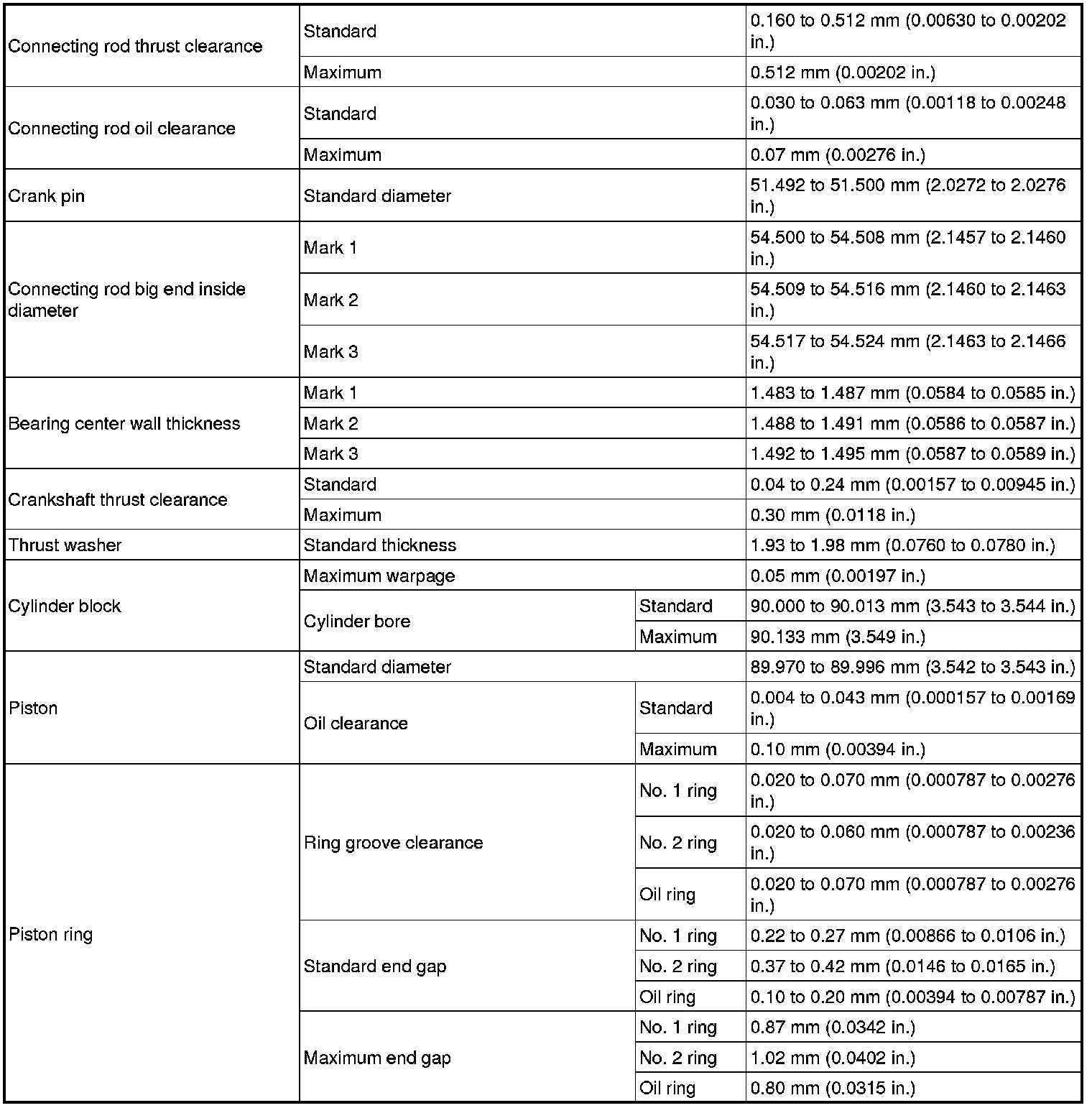

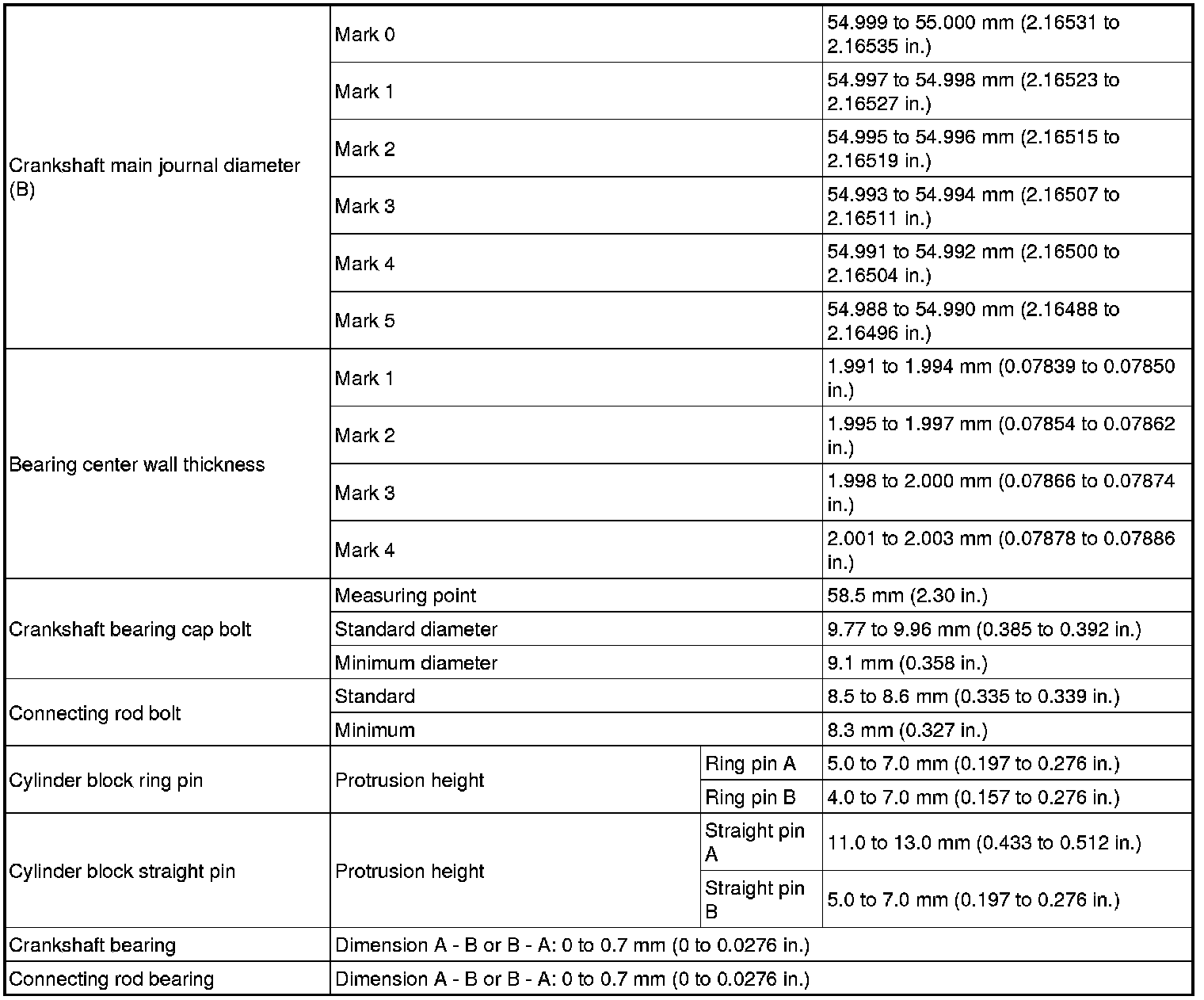

Cylinder Block

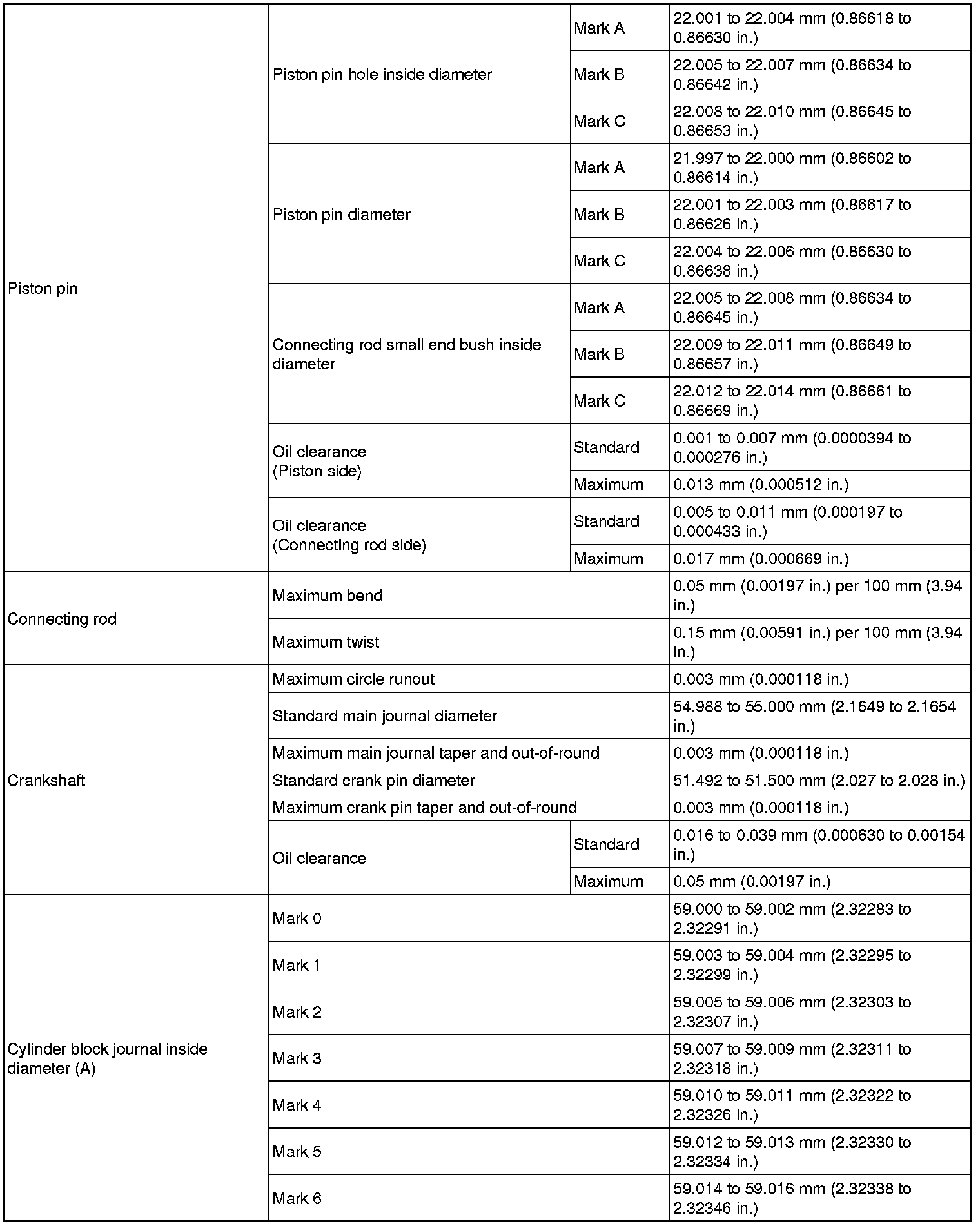

Engine Unit
