Home >> Scion >> 2011 >> tC L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Engine Lubrication >> Service Data

Service Data





SPECIFICATIONS: 2AR-FE LUBRICATION: SERVICE DATA

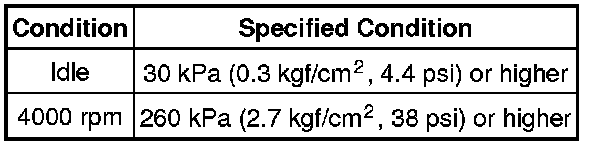

Oil Pressure
