Torque Specifications





SPECIFICATIONS: 2AR-FE COOLING: TORQUE SPECIFICATIONS

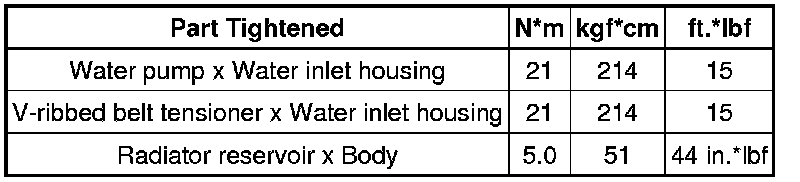

Water pump





Thermostat

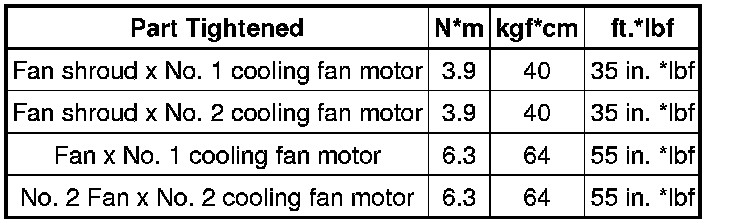

Cooling fan motor

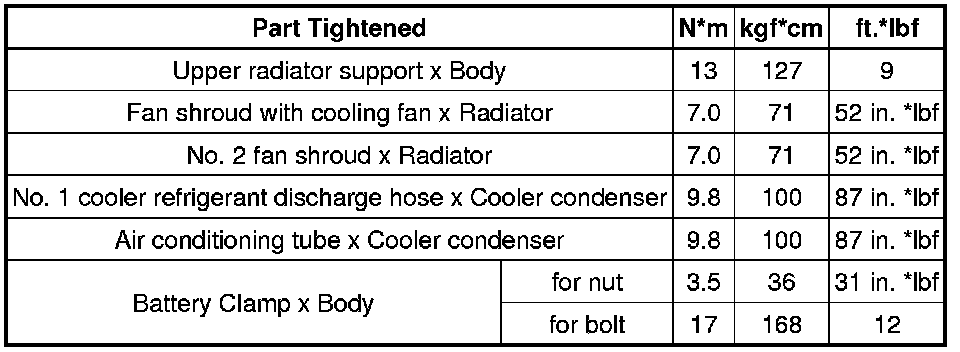

Radiator
