Torque Specifications





SPECIFICATIONS: BRAKE SYSTEM (OTHER): TORQUE SPECIFICATIONS

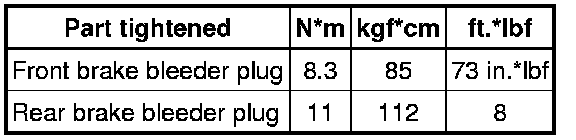

Brake Fluid

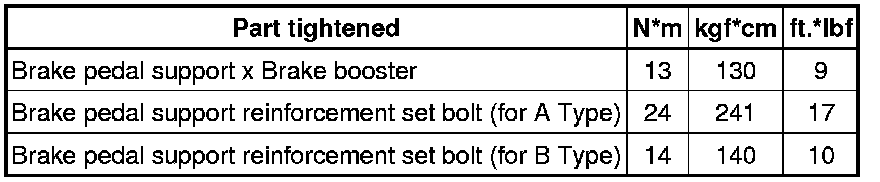

Brake Pedal

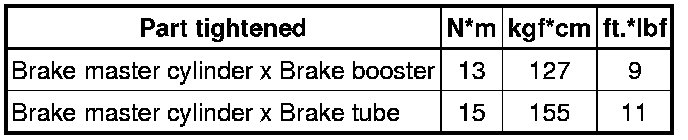

Brake Master Cylinder

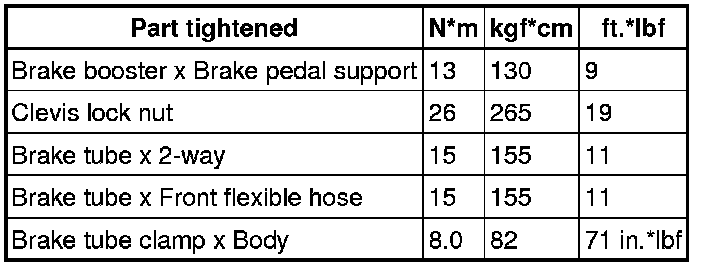

Brake Booster
