Torque Specifications





SPECIFICATIONS: BRAKE (FRONT): TORQUE SPECIFICATIONS

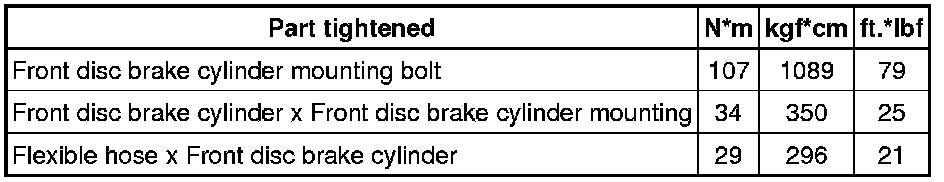

Front Brake

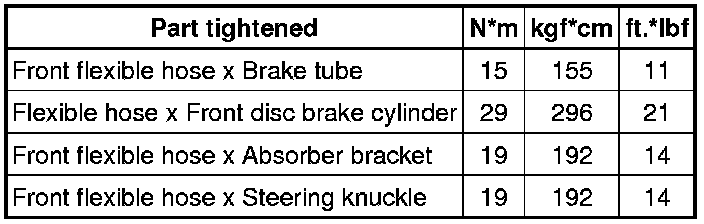

Front Brake Flexible Hose
