Torque Specifications





SPECIFICATIONS: U760E AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

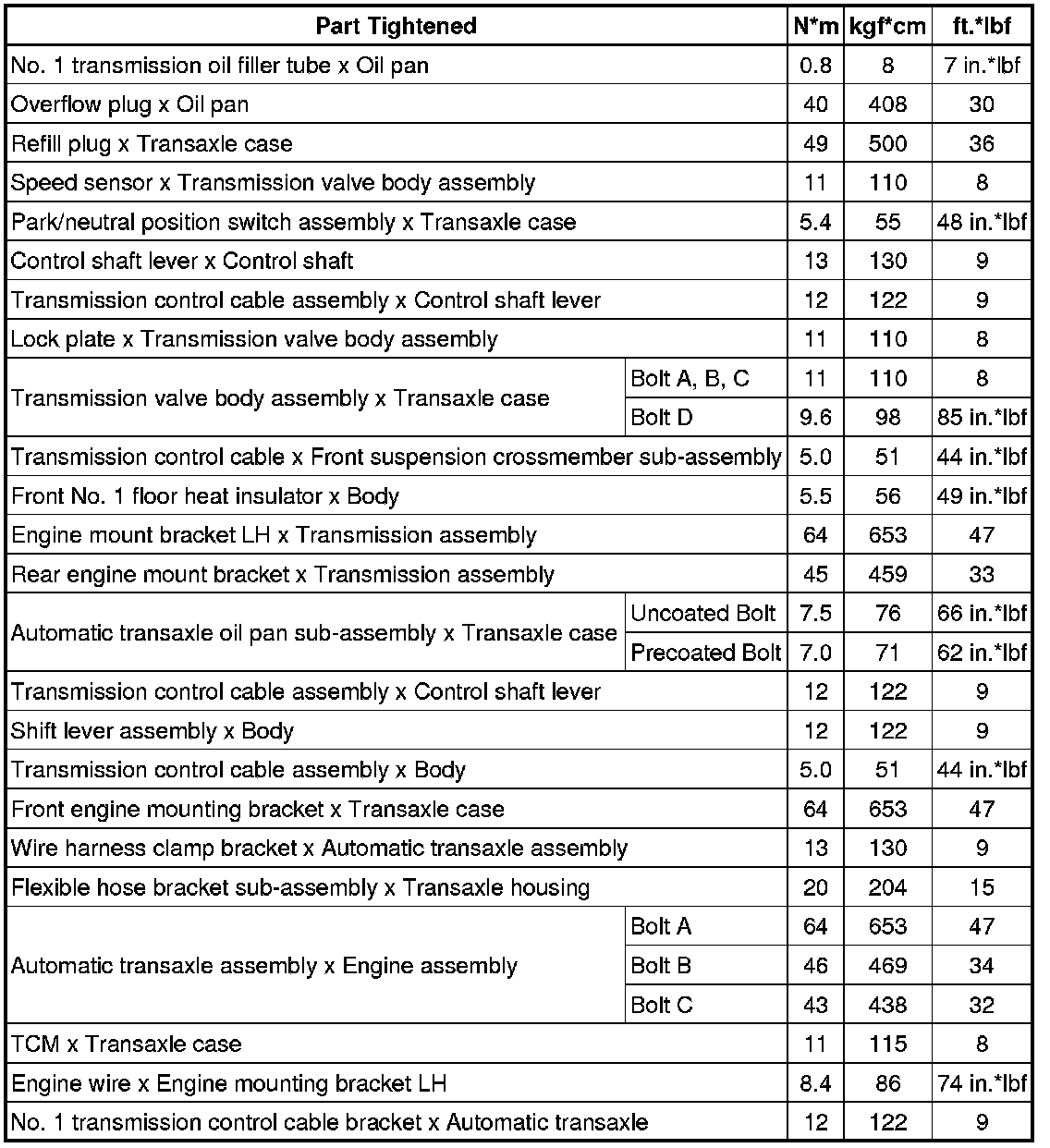

Automatic Transaxle Unit





Oil Pump

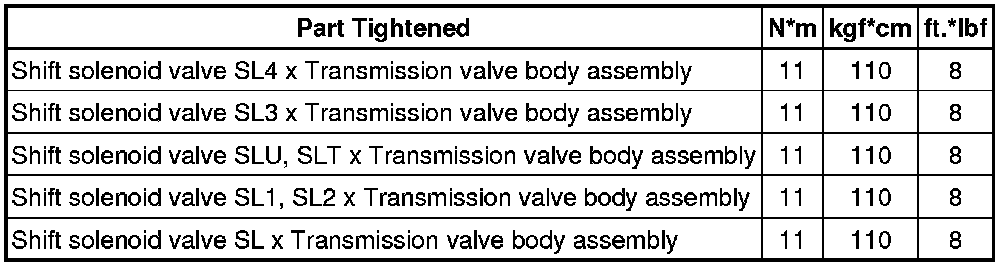

Shift Solenoid Valve

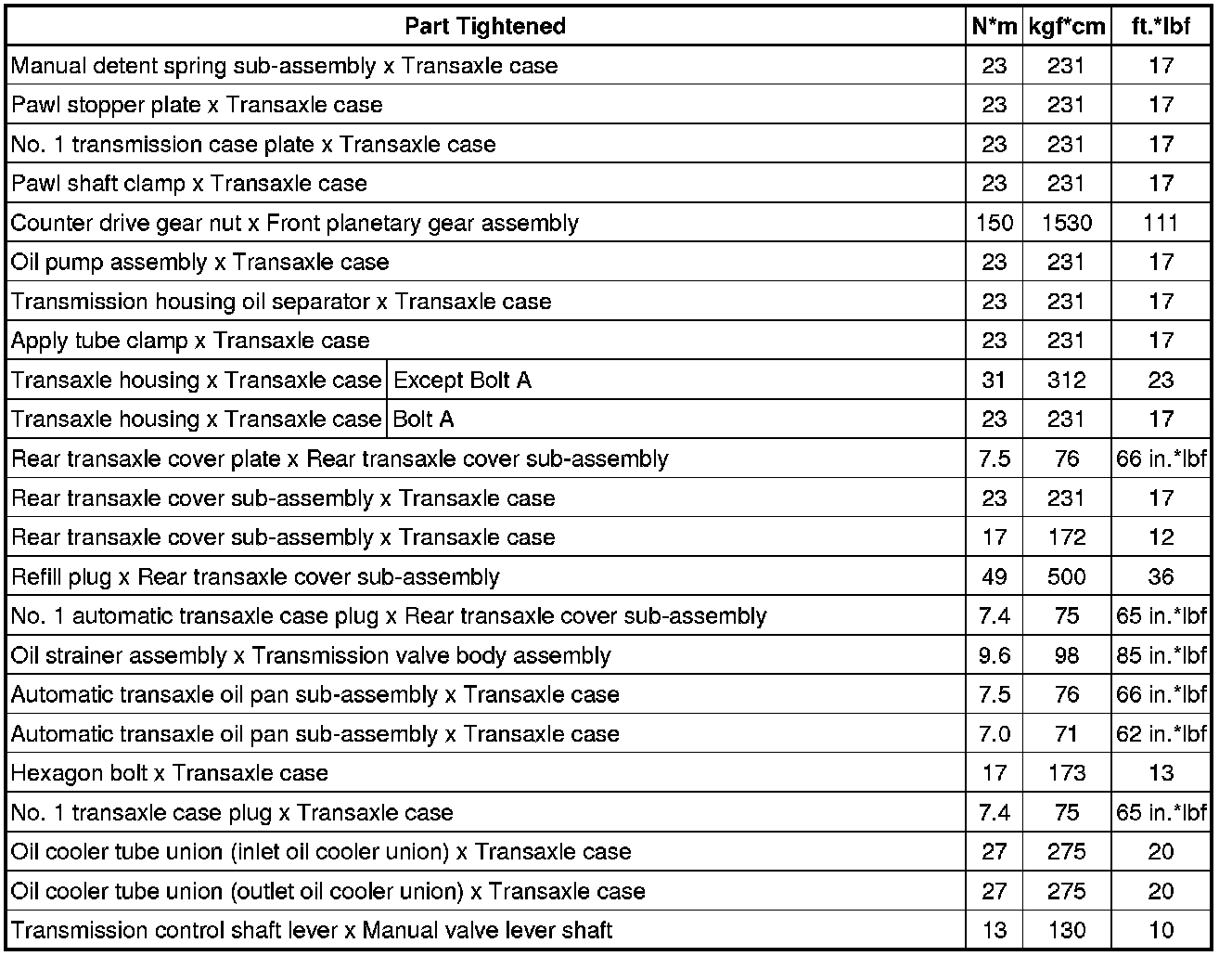

Differential Case

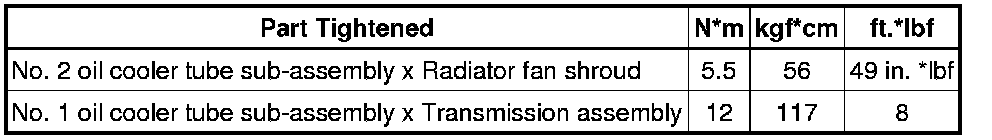

Oil Cooler
