Service Data





SPECIFICATIONS: U760E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA





*1: Speed limiter active

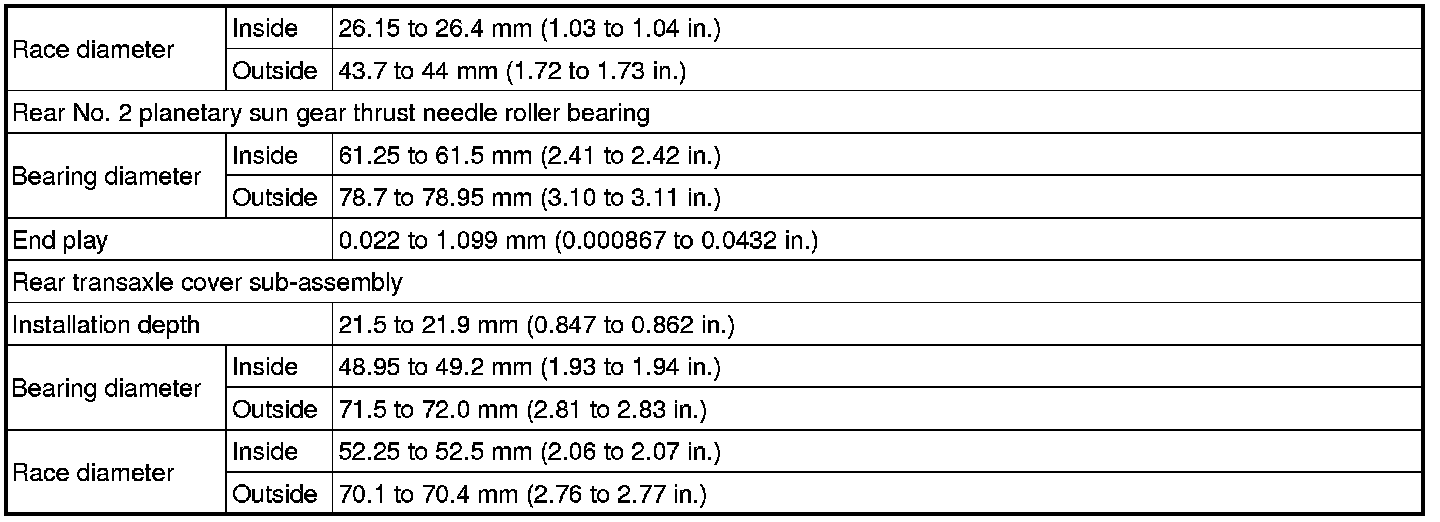

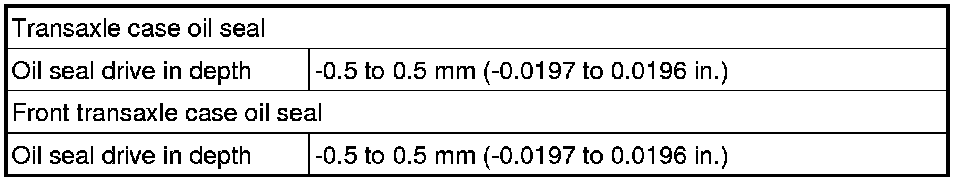

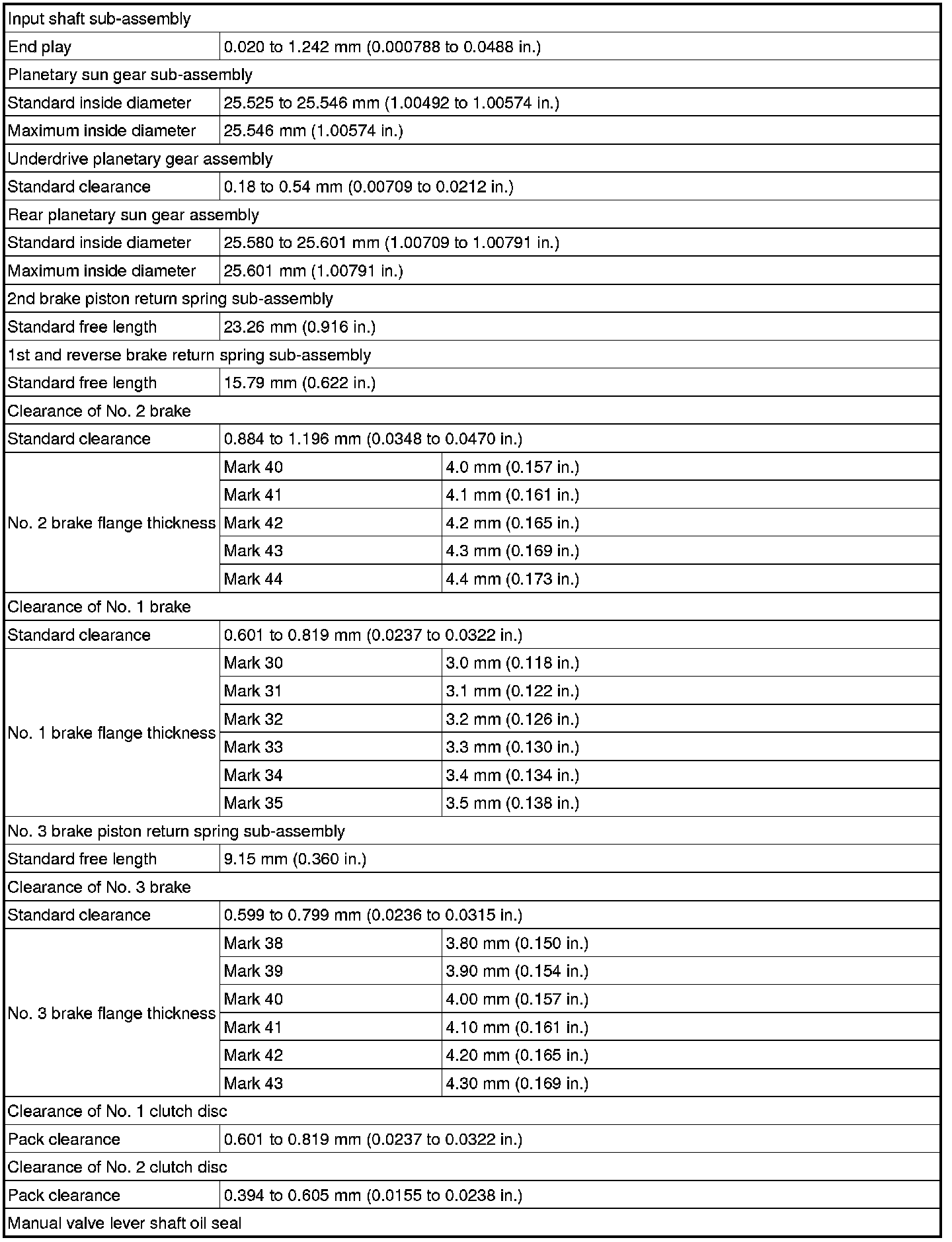

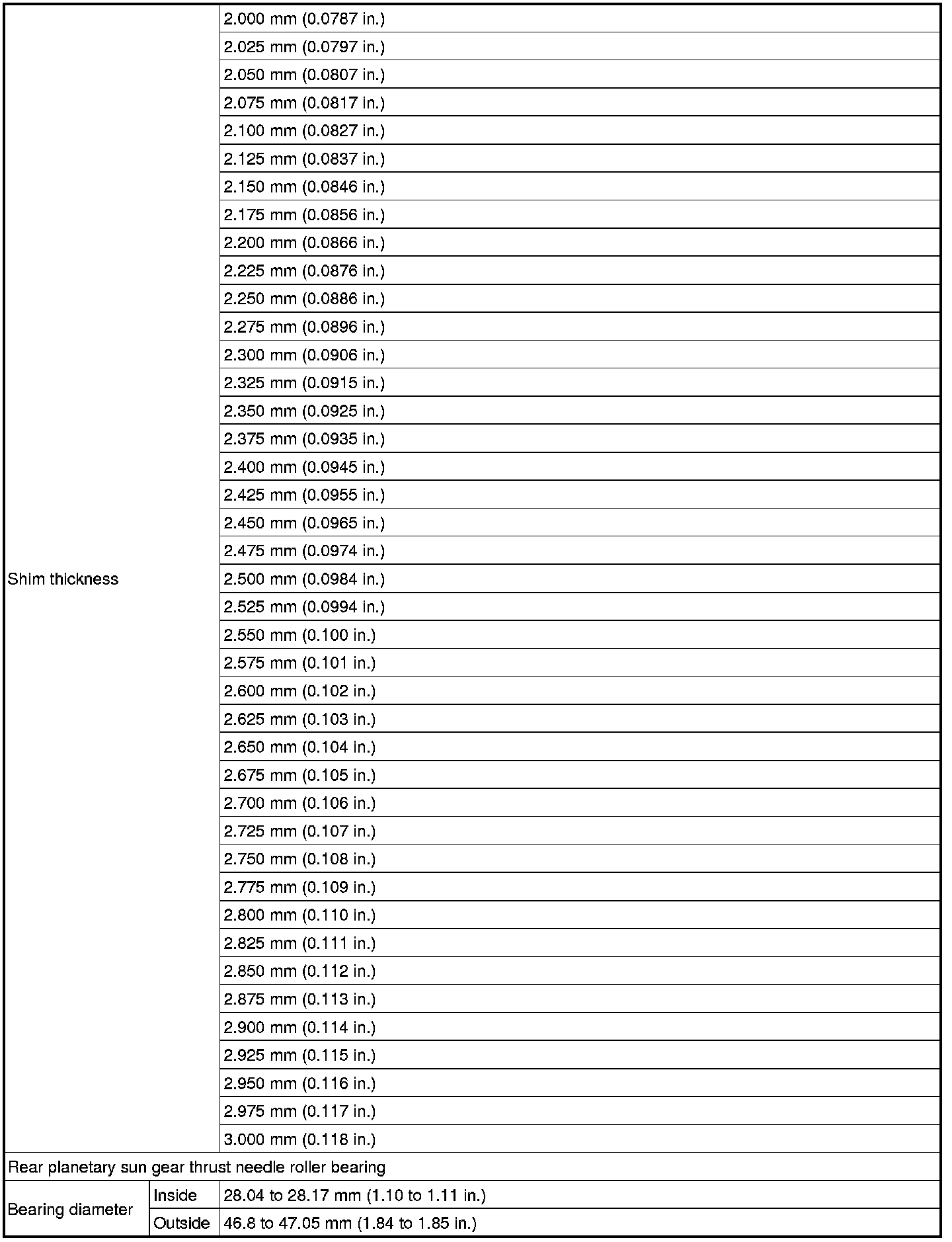

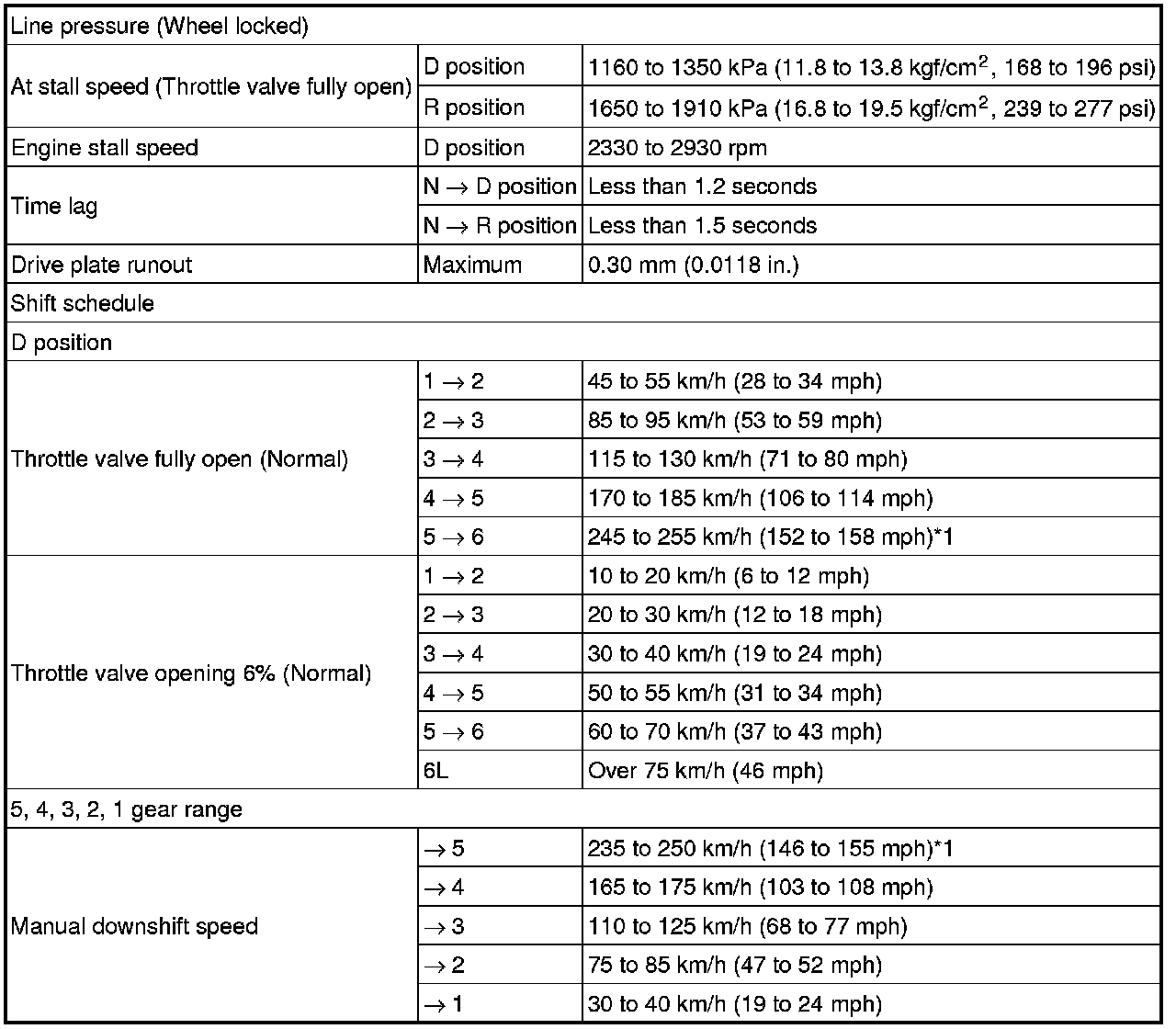

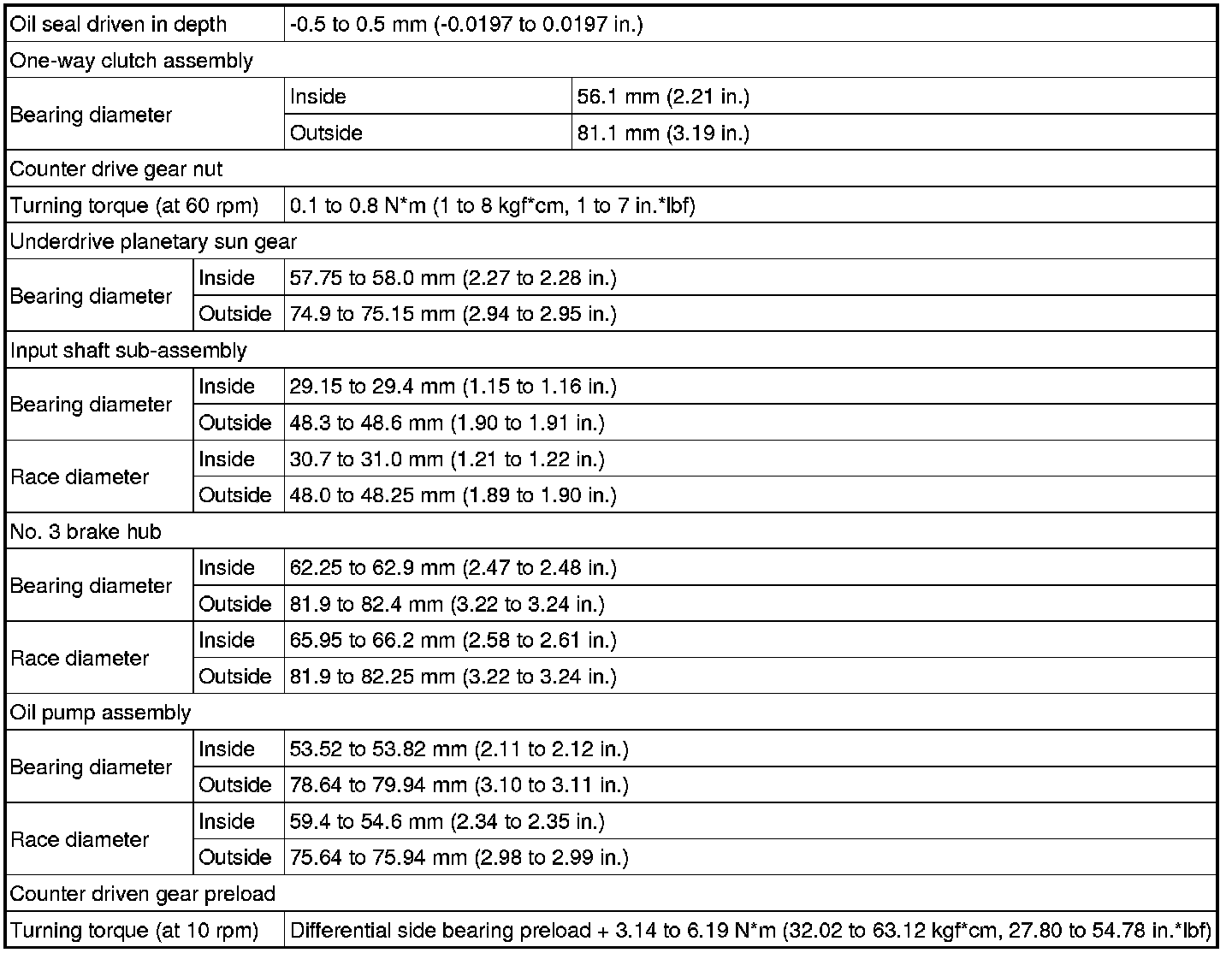

Automatic Transaxle Unit

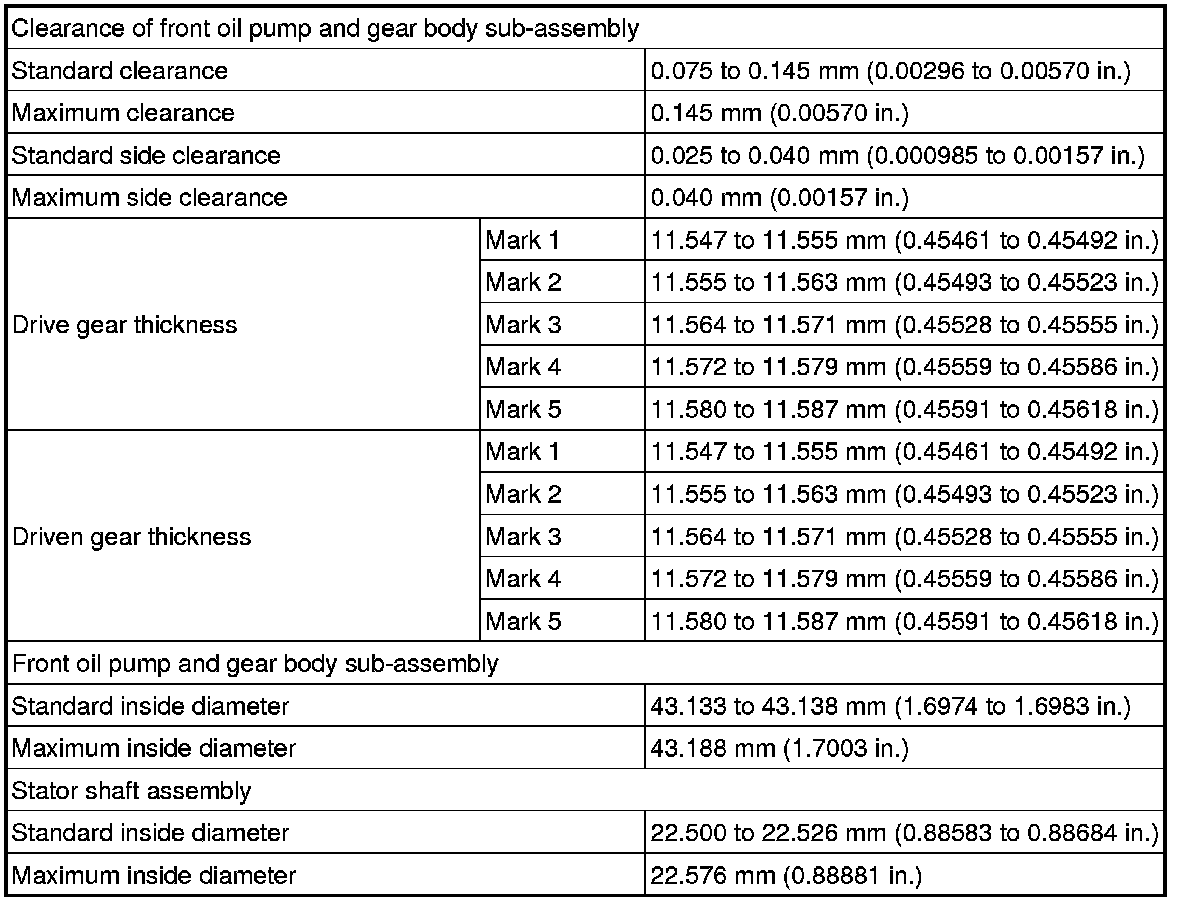

Oil Pump

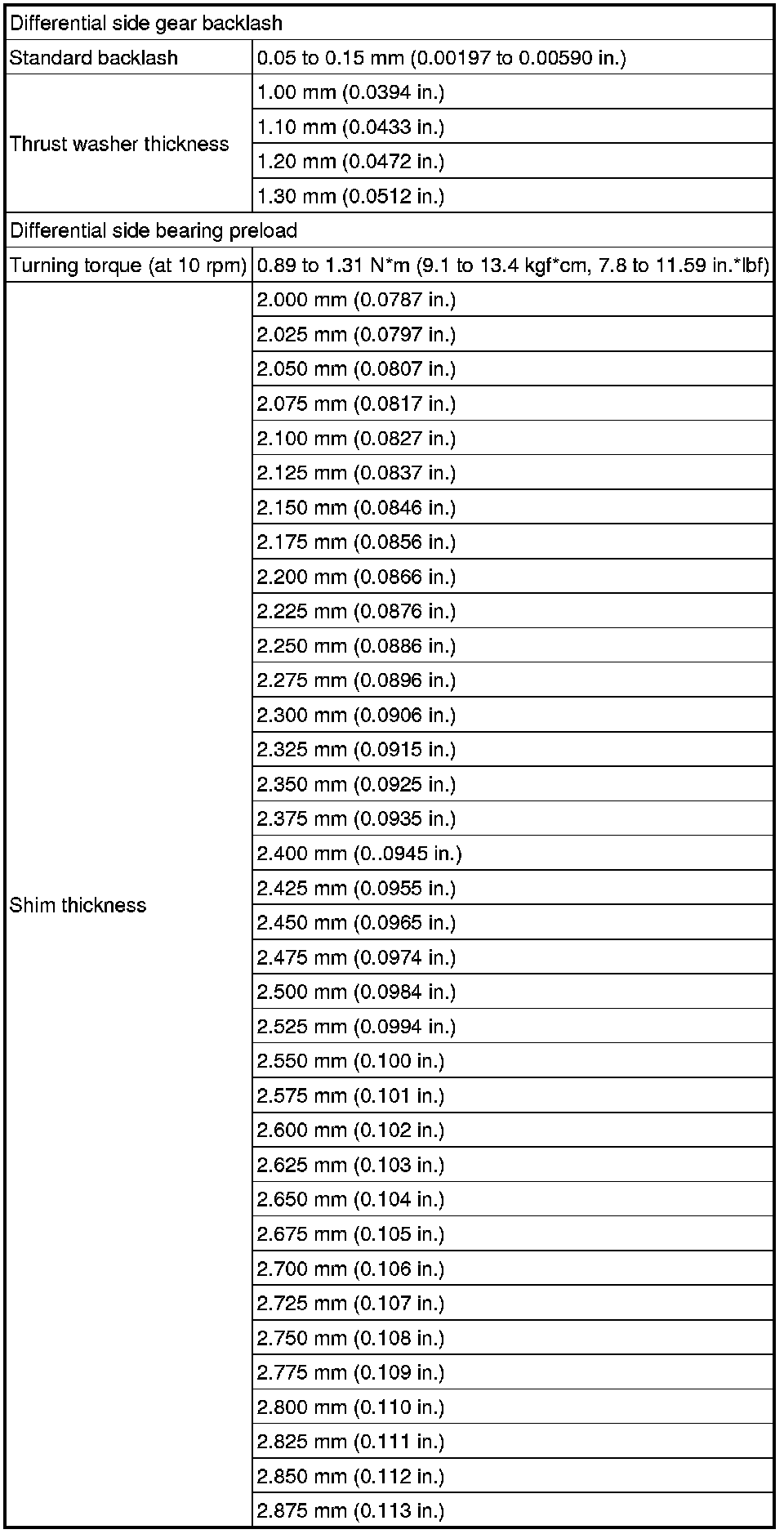

Differential Case
