Fuel Gauge Sender: Testing and Inspection

2AR-FE FUEL: FUEL SENDER GAUGE ASSEMBLY: INSPECTION

1. INSPECT FUEL SENDER GAUGE ASSEMBLY

(a) Check that the float moves smoothly between F and E.

(b) Measure the resistance according to the value(s) in the table below.

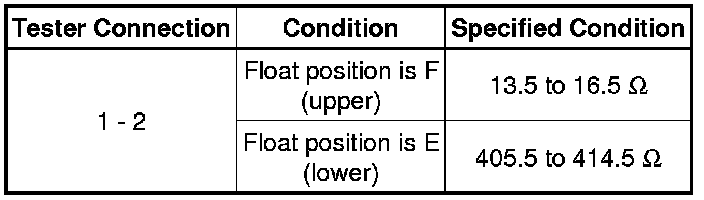

Standard Resistance:





Text in Illustration





* If the value is not as specified, replace the fuel sender gauge assembly.
