Traction Control Switch: Testing and Inspection

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VSC OFF SWITCH: INSPECTION

1. INSPECT VSC OFF SWITCH

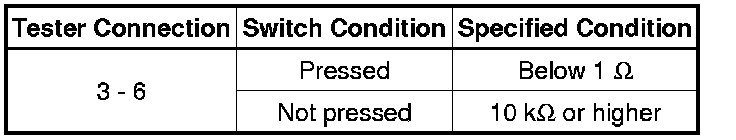

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance









Text in Illustration





If the result is not as specified, replace the VSC OFF switch.
