How To Proceed With Troubleshooting

SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
*: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS

NEXT -- Continue to next step.

3. PASSENGER AIRBAG ON/OFF INDICATOR CHECK

NEXT -- Continue to next step.

4. CHECK DTC (Present and Past DTCs)*

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

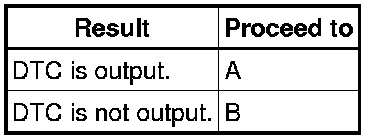

Result:





B -- GO TO PROBLEM SYMPTOMS TABLE Problem Symptoms Table
A -- Continue to next step.

5. DTC CHART

NEXT -- Continue to next step.

6. CIRCUIT INSPECTION*

NEXT -- Continue to next step.

7. REPAIR

NEXT -- Continue to next step.

8. CLEAR DTCS (Present and Past DTCs)*

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

9. CHECK DTC (Present and Past DTCs)*

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

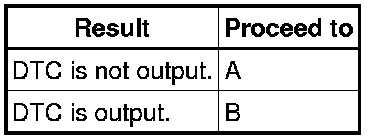

Result:





B -- Go to step 5
A -- Continue to next step.

10. SYMPTOM SIMULATION

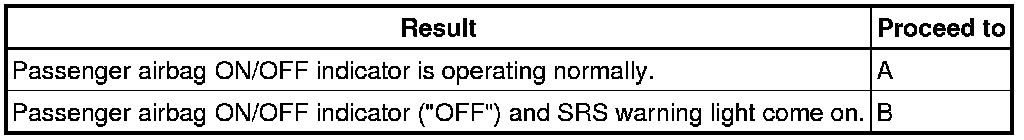

(a) Check the passenger airbag ON/OFF indicator condition.

Result:





B -- Go to step 5
A -- Continue to next step.

11. CONFIRMATION TEST

NEXT -- END
