Side Airbag Sensor (for Front Door)





SUPPLEMENTAL RESTRAINT SYSTEMS: SIDE AIRBAG SENSOR (for Front Door): PRECAUTION

1. IGNITION SWITCH EXPRESSION

HINT

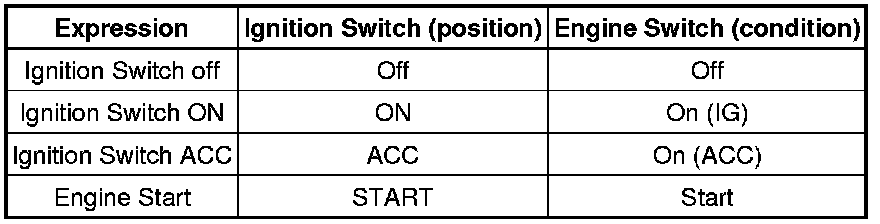

The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are used in this section.
