Side Airbag Sensor (for Center Pillar)





SUPPLEMENTAL RESTRAINT SYSTEMS: SIDE AIRBAG SENSOR (for Center Pillar): PRECAUTION

1. IGNITION SWITCH EXPRESSION

HINT

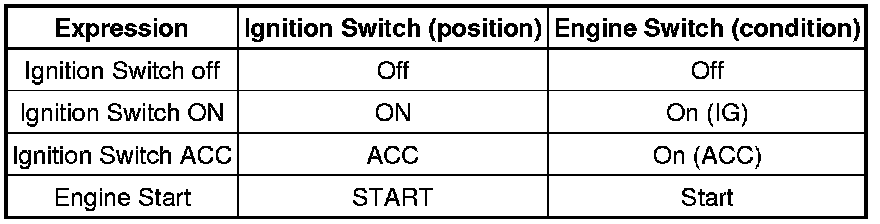

The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are used in this section.
