Installation

SUPPLEMENTAL RESTRAINT SYSTEMS: KNEE AIRBAG ASSEMBLY (for Driver Side): INSTALLATION

1. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

(a) Check that the ignition switch is off.

(b) Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Connect the airbag connector.





NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

(d) Push in the lock plate to lock the airbag connector.

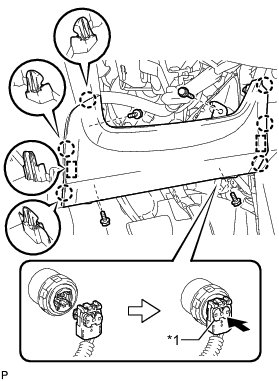

Text in Illustration





(e) Attach the 6 claws and 2 guides to install the lower No. 1 instrument panel airbag.

(f) Temporarily install the 4 bolts.

(g) Tighten the 4 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

2. INSTALL LOWER STEERING COLUMN COVER

(a) Attach the 8 claws to install the lower steering column cover.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. PERFORM DIAGNOSTIC SYSTEM CHECK

Reading and Clearing Diagnostic Trouble Codes

5. CHECK SRS WARNING LIGHT

Diagnosis System
