Air Bag Deactivation Indicator: Testing and Inspection

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG CUT-OFF INDICATOR LIGHT: INSPECTION

1. INSPECT CLOCK ASSEMBLY

(a) Apply battery voltage to the connector and check the airbag off indicator LED illumination.





Text in Illustration





OK:





If the result is not as specified, replace the clock assembly.

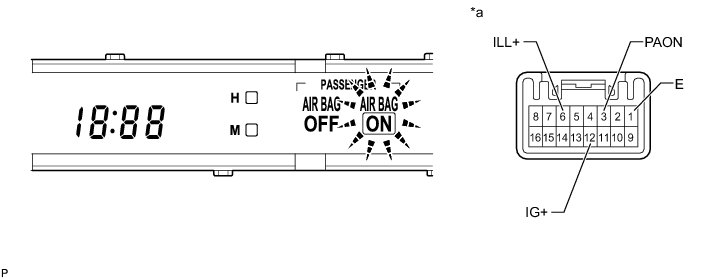

(b) Apply battery voltage to the connector and check the airbag on indicator LED illumination.





Text in Illustration

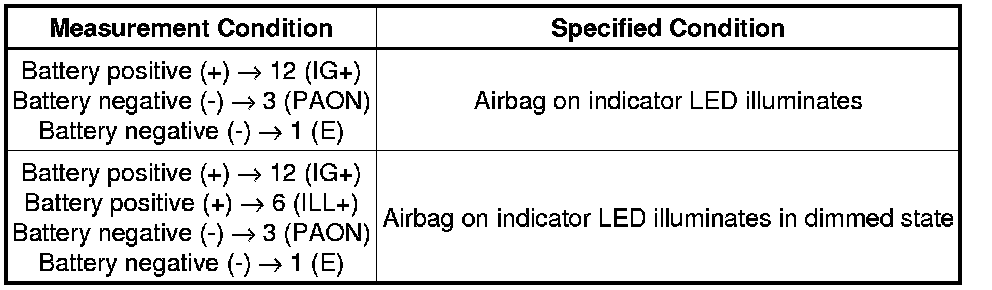

OK:





If the result is not as specified, replace the clock assembly.
