Heated Glass Element Relay: Testing and Inspection

WINDOW / GLASS: RELAY (for Window Defogger): ON-VEHICLE INSPECTION

1. REMOVE DEFOGGER RELAY (DEFOG)





(a) Remove the defogger relay from the engine room relay block junction block.

2. INSPECT DEFOGGER RELAY

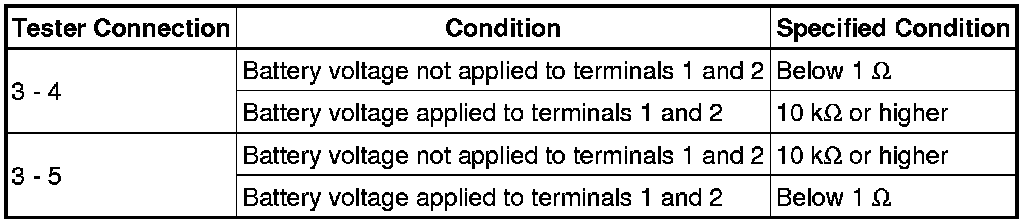

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the relay.

3. INSTALL DEFOGGER RELAY

(a) Install the defogger relay to the engine room relay block junction block.
