Headlamp Dimmer Relay: Locations

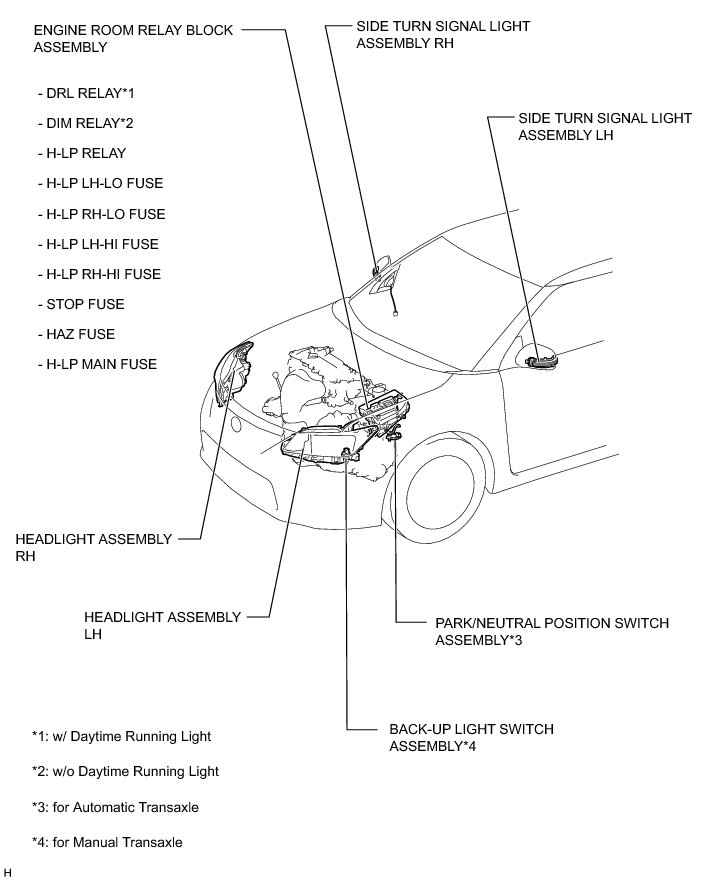

LIGHTING (EXT): LIGHTING SYSTEM: PARTS LOCATION

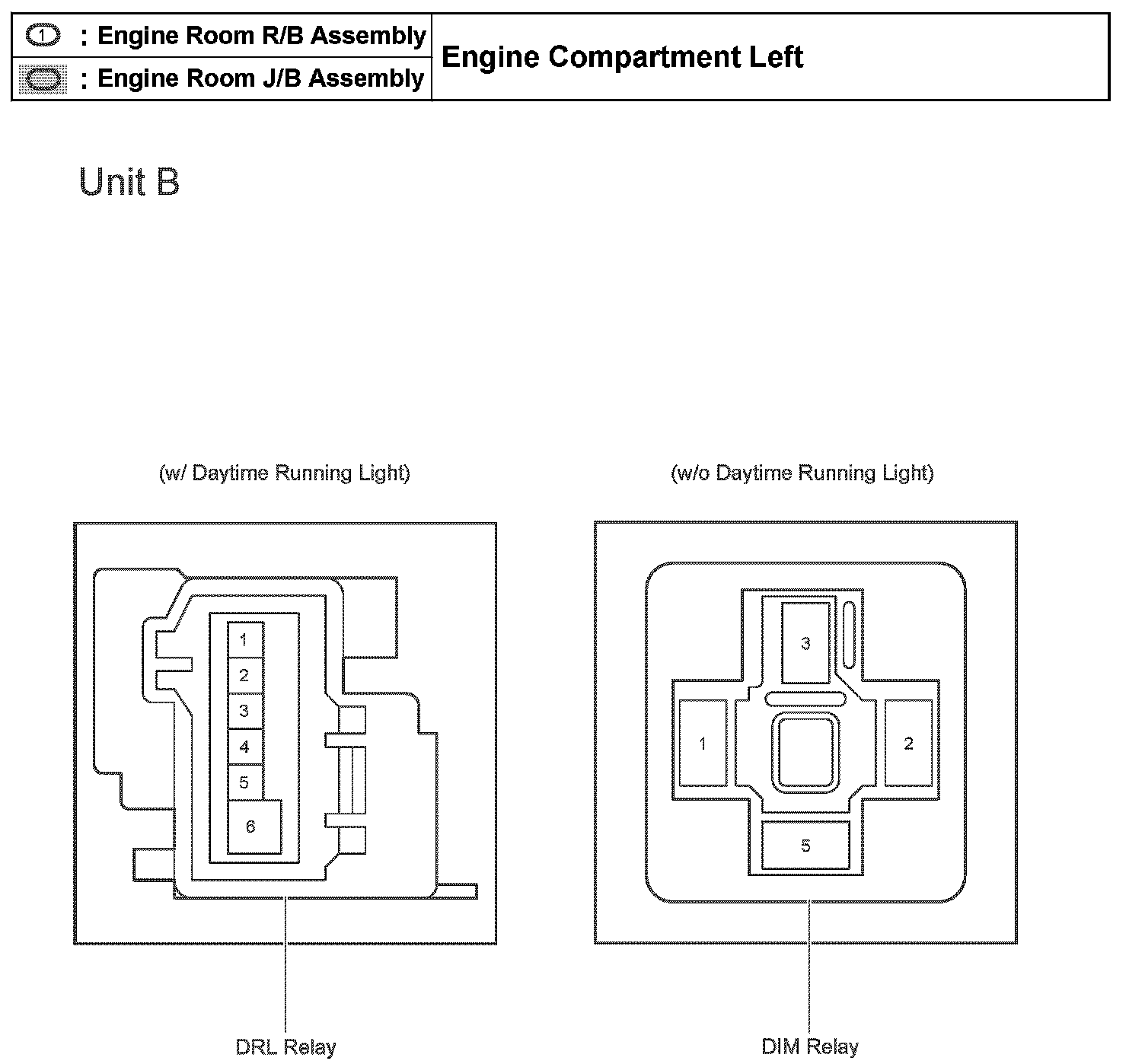

Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left:
