Blower Motor Relay: Testing and Inspection

HEATING / AIR CONDITIONING: RELAY: INSPECTION

1. INSPECT HEATER BLOWER MOTOR RELAY





(a) Check the resistance.

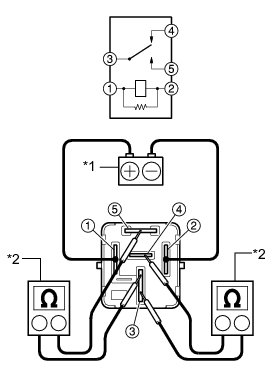

(1) Using an ohmmeter, measure the resistance between each terminal.

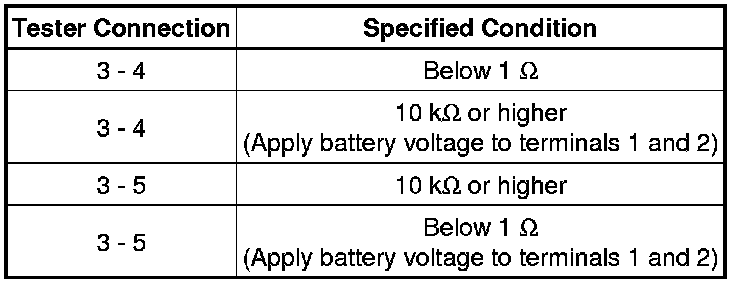

Standard Resistance:





If the result is not as specified, replace the relay.

Text in Illustration
