Radiator Cooling Fan Motor Relay: Testing and Inspection

2AR-FE COOLING: RELAY: ON-VEHICLE INSPECTION

1. INSPECT NO. 1 FAN RELAY (FAN NO. 1)

(a) Measure the resistance according to the value(s) in the table below.

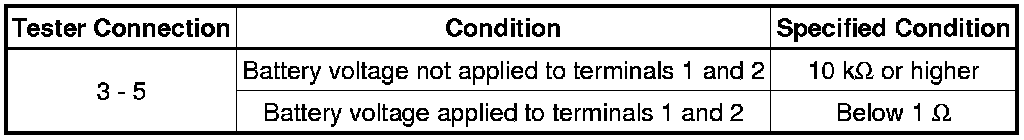

Standard Resistance:





If the result is not as specified, replace the No. 1 fan relay.

2. INSPECT NO. 2 FAN RELAY (FAN NO. 2)

(a) Measure the resistance according to the value(s) in the table below.

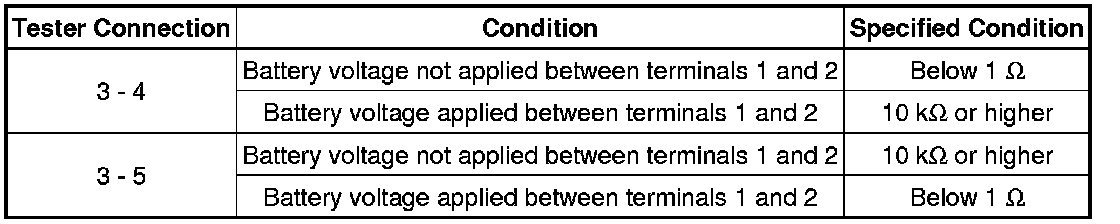

Standard Resistance:





If the result is not as specified, replace the No. 2 fan relay.

3. INSPECT NO. 3 FAN RELAY (FAN NO. 3)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the No. 3 fan relay.
