Radiator Cooling Fan Motor Relay: Locations





2AR-FE COOLING: COOLING FAN SYSTEM: PARTS LOCATION

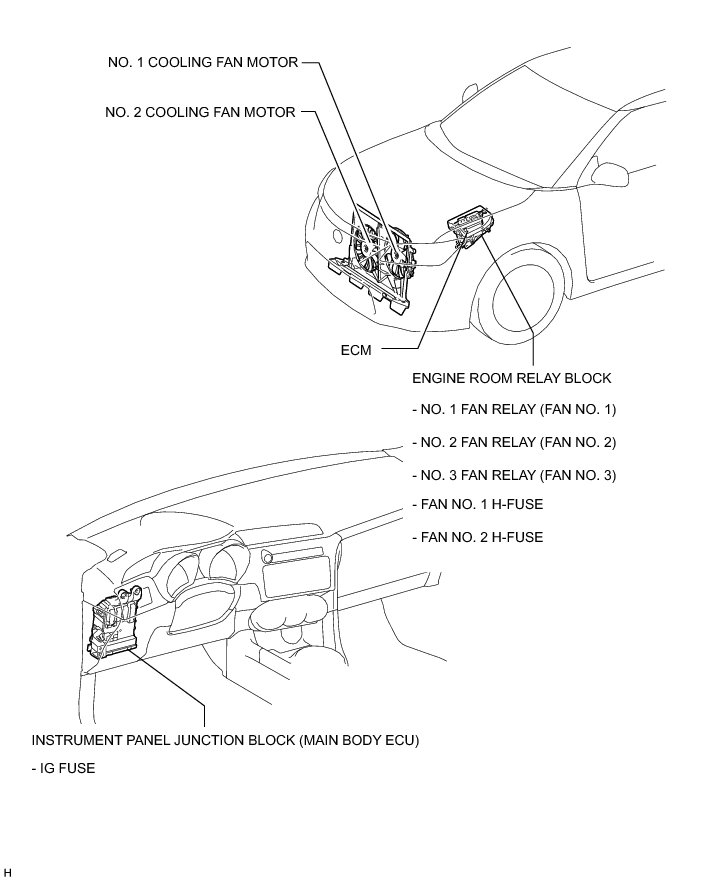

Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left:
