Main Relay (Computer/Fuel System)
>>
Locations
>>
Engine Control - SFI System
Engine Control - SFI System

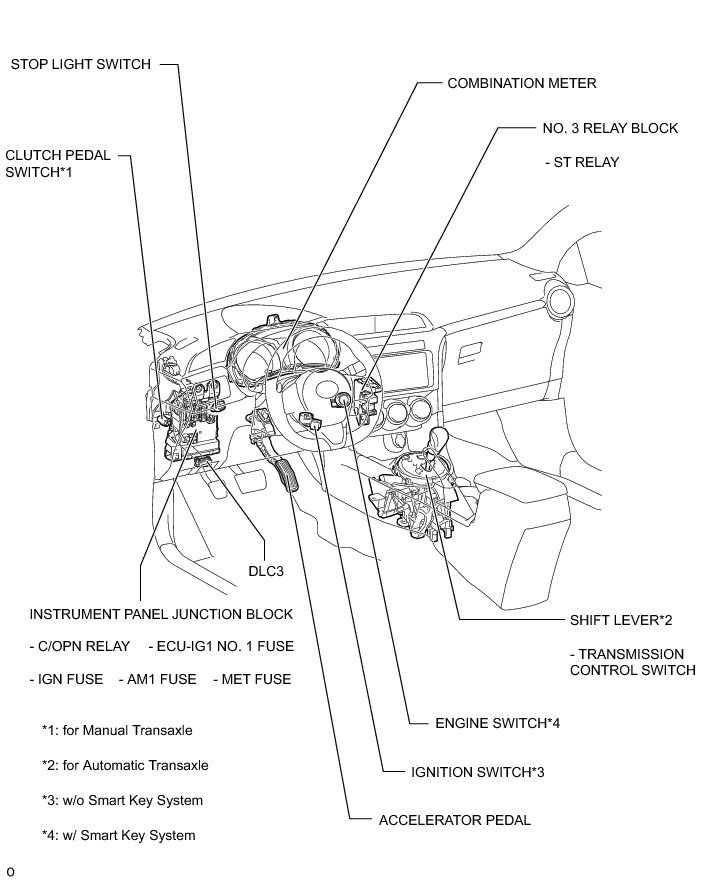

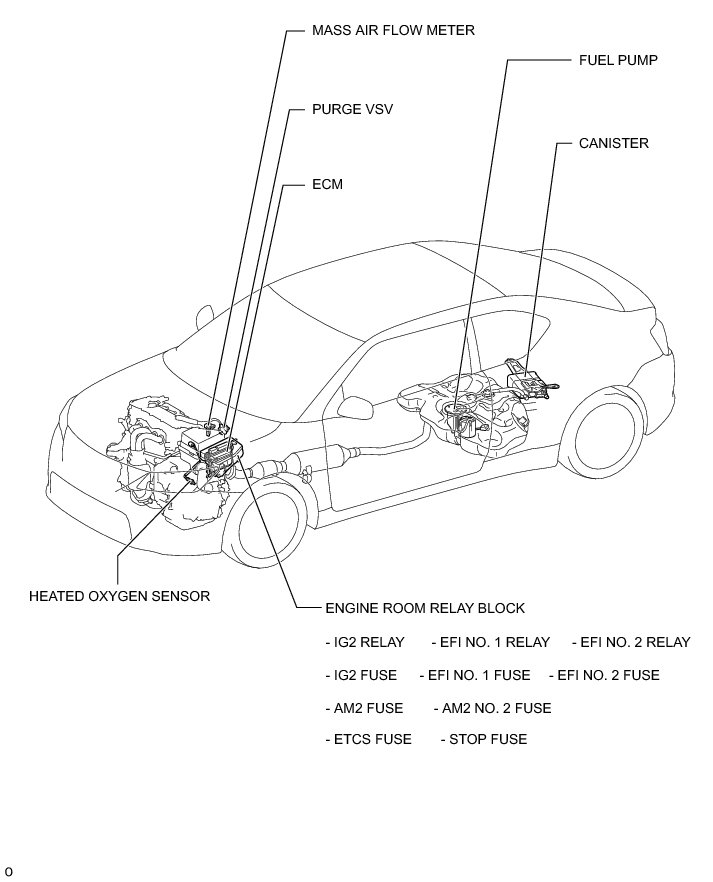

2AR-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION
