Fuel Injector: Testing and Inspection

2AR-FE FUEL: FUEL INJECTOR: INSPECTION

1. INSPECT FUEL INJECTOR ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the fuel injector assembly.

(b) Inspect the injector injection.

CAUTION:
Keep the injector away from sparks during the test.

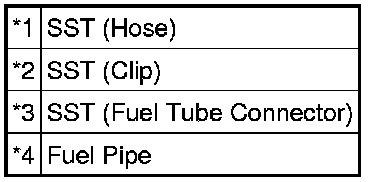

(1) Connect SST (fuel tube connector) to SST (hose) with SST (clip), and then connect them to the fuel pipe (vehicle side).

SST : 09268-31012

09268-41500

90467-13001

95336-08070





Text in Illustration





(2) Install the O-ring to the fuel injector.

(3) Connect SST (adapter and hose) to the injector, and hold the injector and union with SST (clamp).





SST : 09268-31012

09268-41110

09268-41300

90467-13001

95336-08070

Text in Illustration





(4) Install a vinyl tube to the injector.

CAUTION:
Install a suitable vinyl tube to the injector to contain any gasoline spray.

(5) Put the injector into a graduated cylinder.

(6) Operate the fuel pump.

(7) Connect SST (wire) to the injector and the battery for 15 seconds and measure the injection volume with the graduated cylinder. Test each injector 2 or 3 times.





SST : 09842-30080

Standard injection volume:

87 to 105 cc (5.3 to 6.4 cu. in.) every 15 seconds

Standard difference between each injector:

18 cc (1.1 cu. in.) or less

Text in Illustration





If the result is not as specified, replace the fuel injector assembly.

(c) Check for fuel drop.

(1) In the condition above, disconnect the tester probes of SST (wire) from the battery and check for fuel drop from the injector.





Standard fuel drop:

1 drop or less every 20 minutes

If the fuel drop is not as specified, replace the fuel injector assembly.
