tC L4-2.5L (2AR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Description and Operation
>>
Fuel System
Fuel System
2AR-FE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM
1.

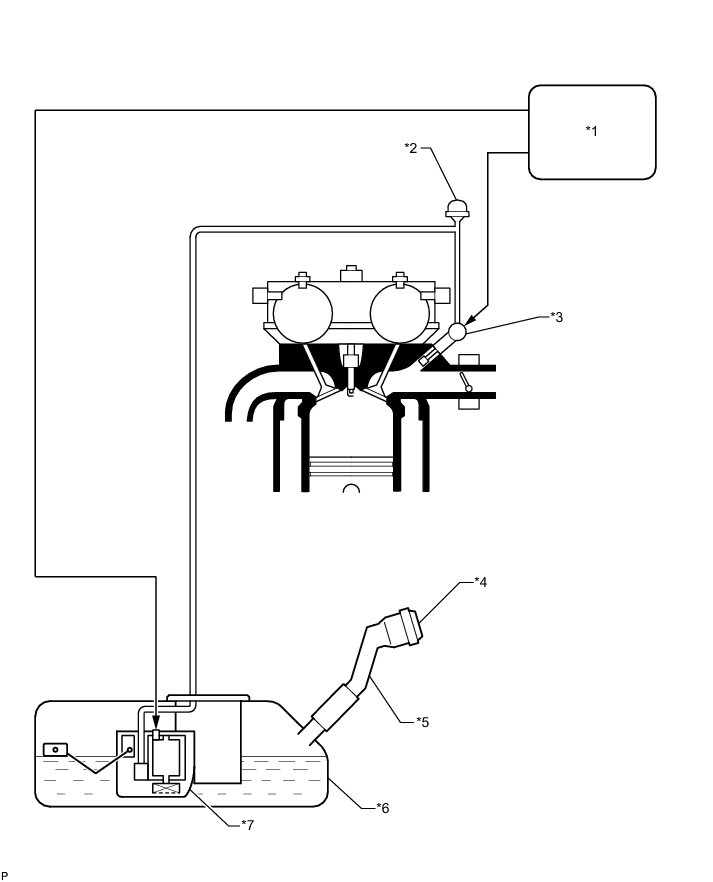

FUEL FLOW DIAGRAM

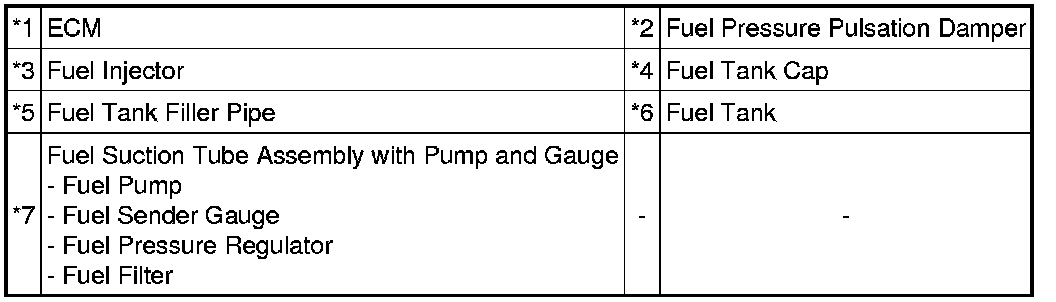

Text in Illustration
2.

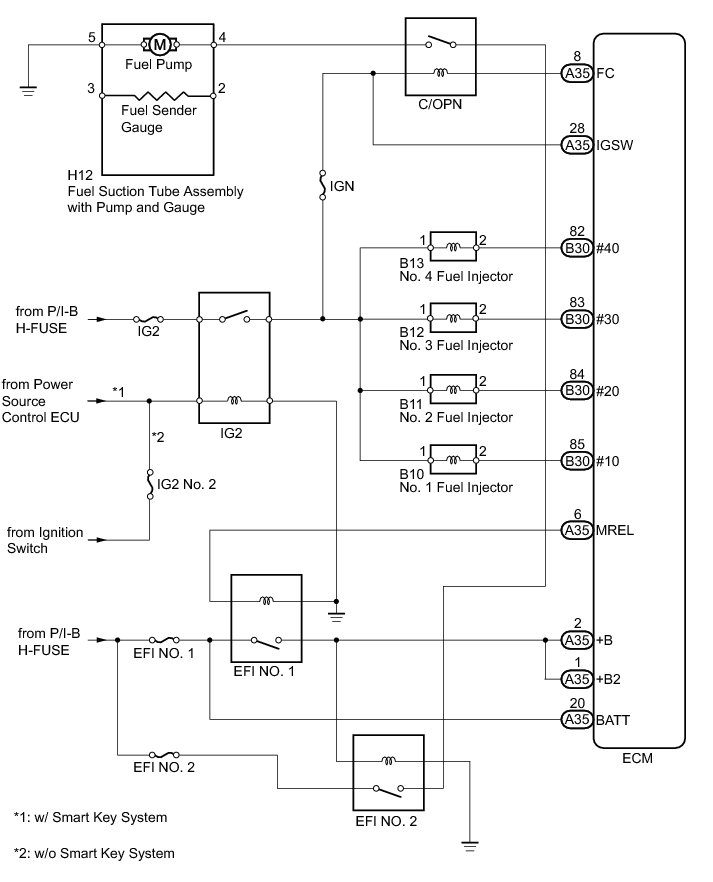

FUEL SYSTEM WIRING DIAGRAM
