Canister Purge Solenoid: Testing and Inspection

2AR-FE EMISSION CONTROL: PURGE VALVE: INSPECTION

1. INSPECT PURGE VSV

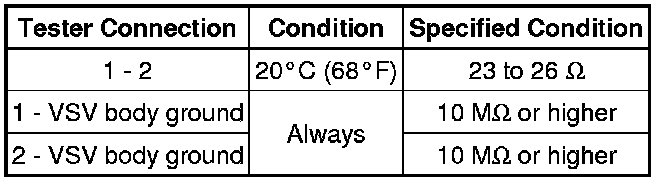

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the purge VSV.

(b) Check the operation of the purge VSV.

(1) Check that air does not flow from port F when air is applied to port E.





Text in Illustration

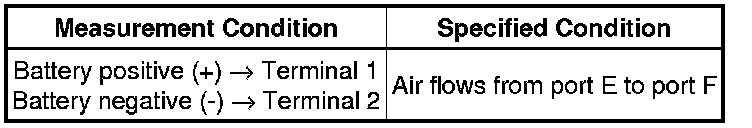

(2) Apply battery voltage to the connector, and check the VSV operation.





OK:





Text in Illustration





If the result is not as specified, replace the purge VSV.
