2AR-FE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST (Continued)

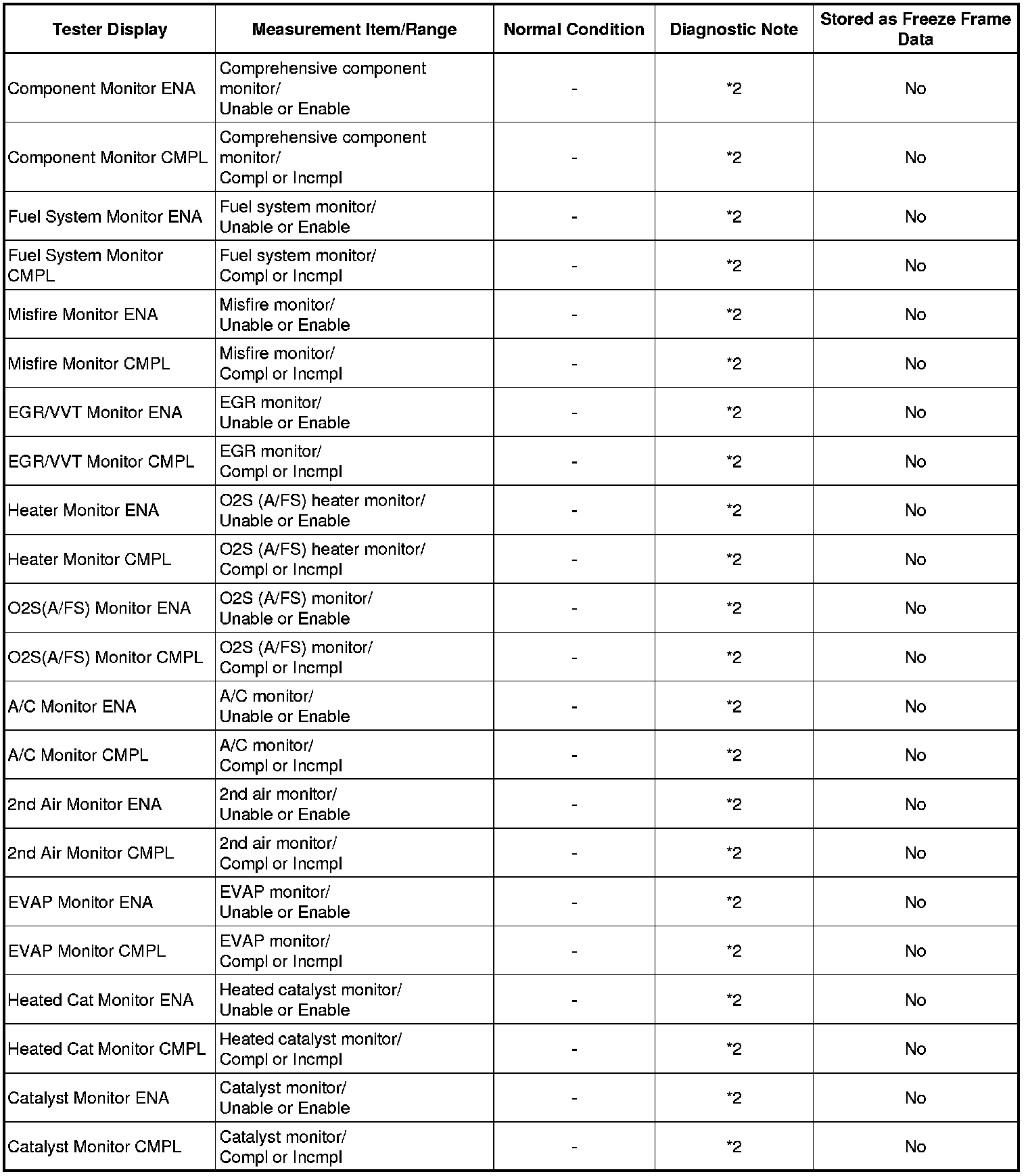

16. Test Result (Monitor Status)

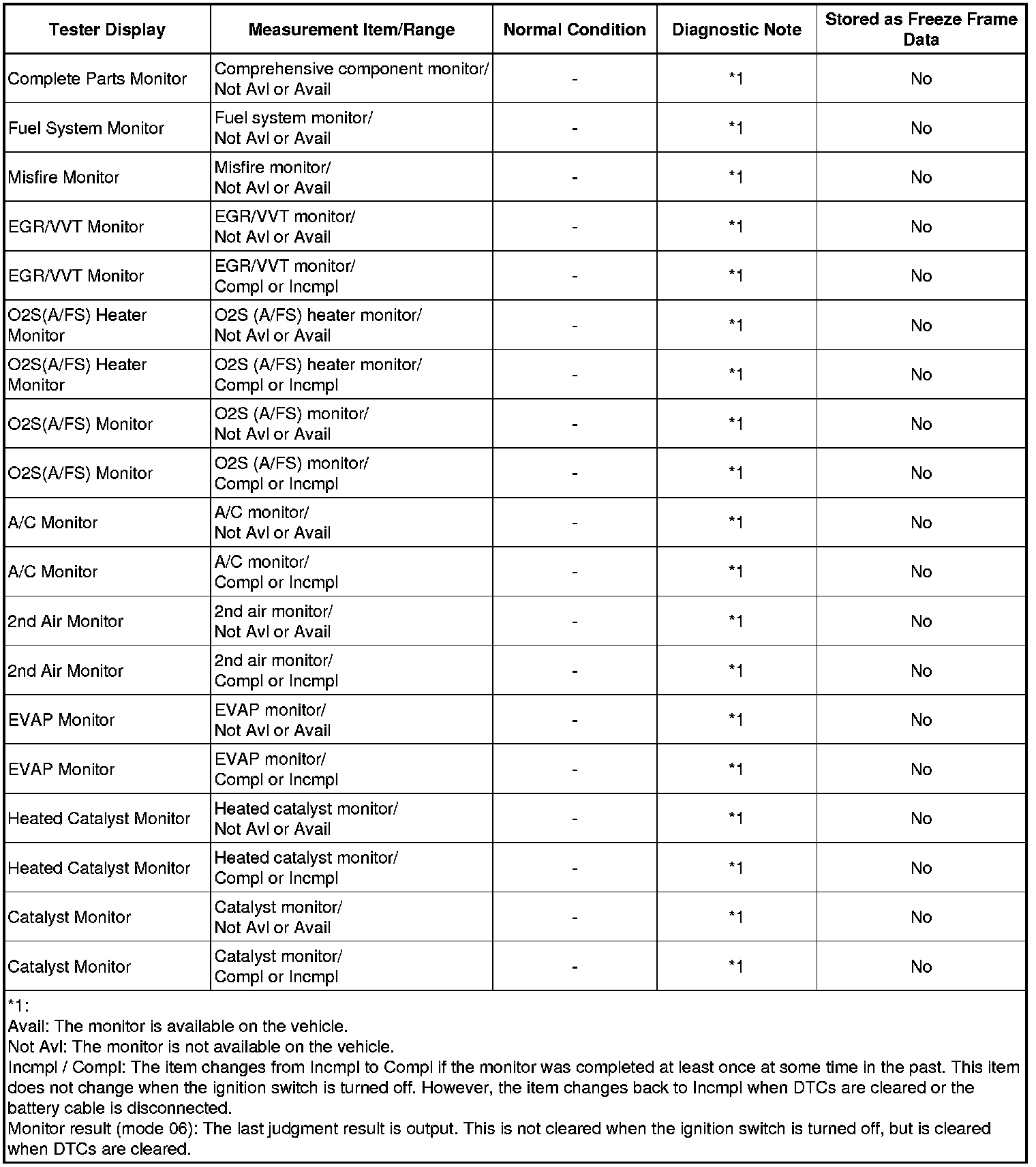

Monitor Information 1

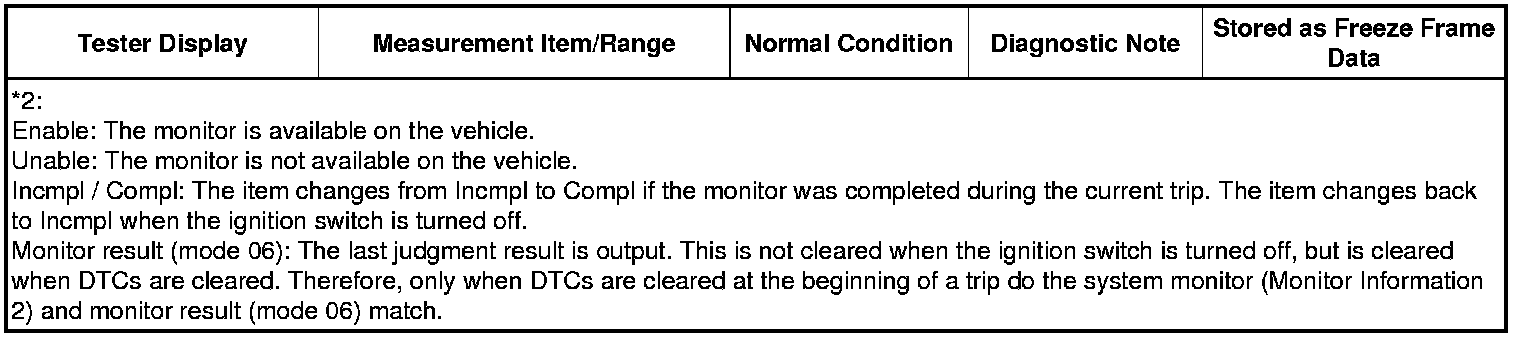

Monitor Information 2









17. Various Vehicle Conditions 3 (All Data)

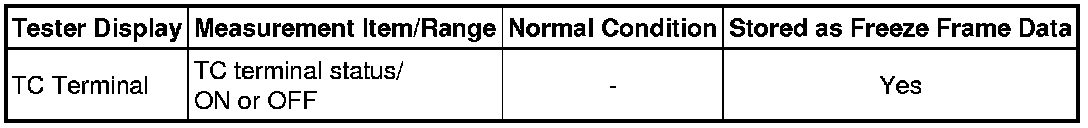

TC Terminal





# Codes (Include History)





MIL

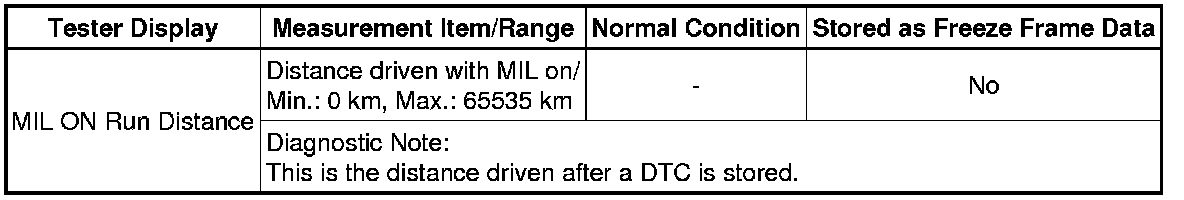

MIL ON Run Distance

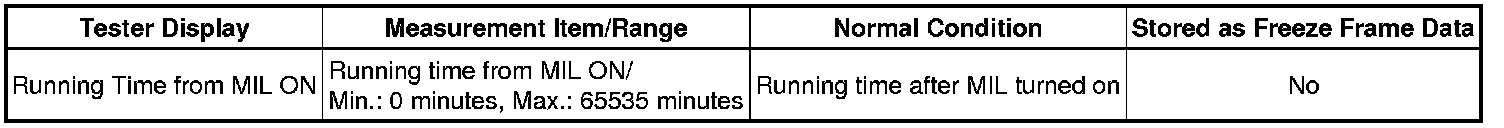

Running Time from MIL ON

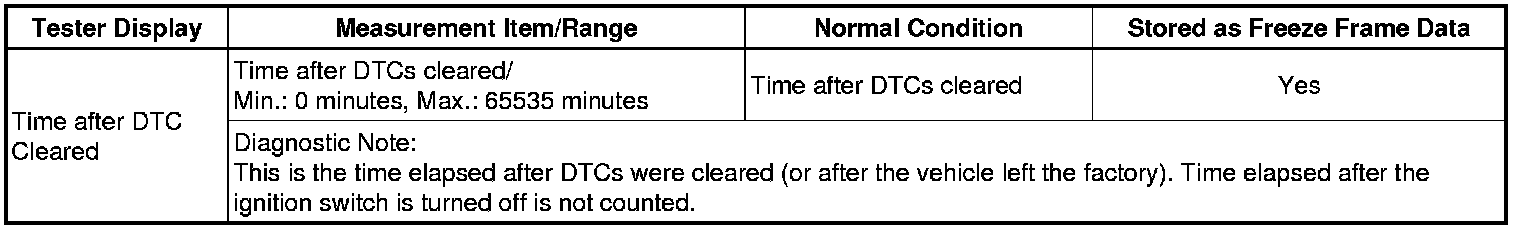

Time after DTC Cleared

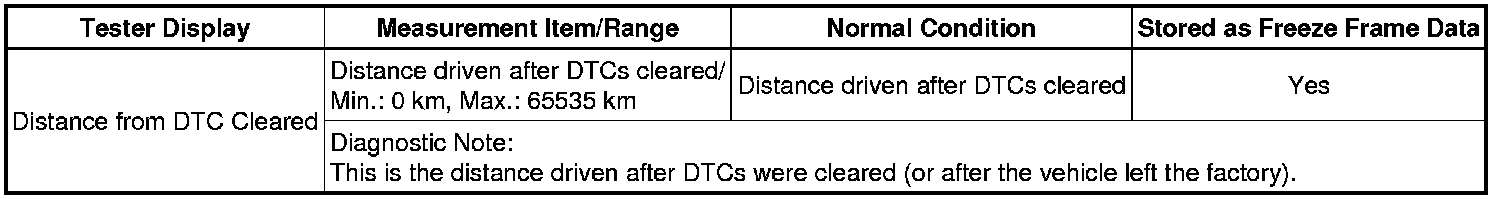

Distance from DTC Cleared

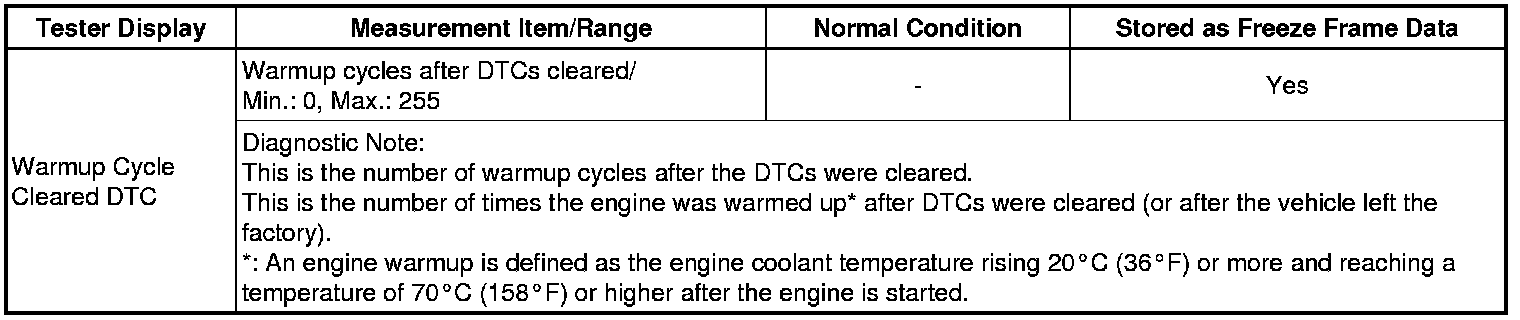

Warmup Cycle Cleared DTC

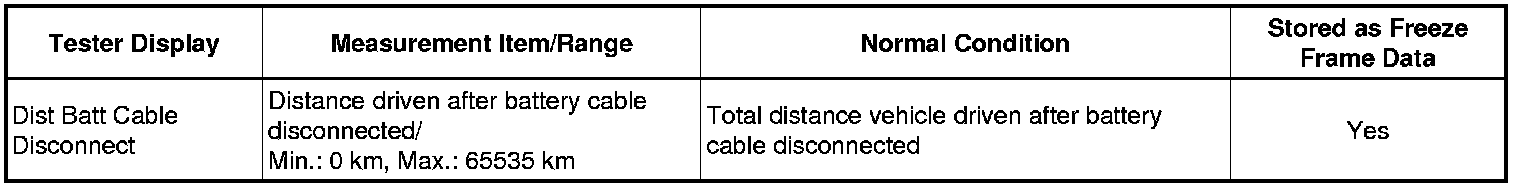

Dist Batt Cable Disconnect

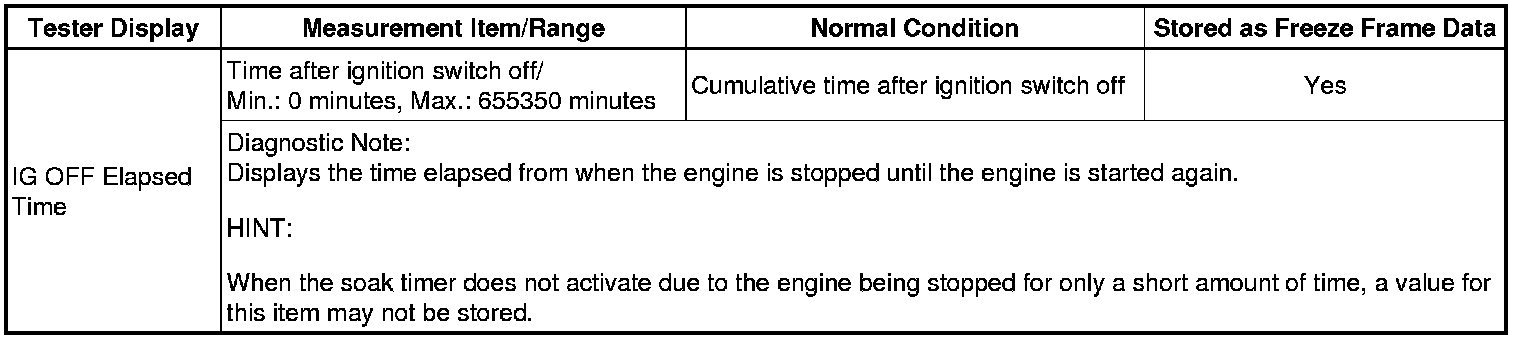

IG OFF Elapsed Time





OBD Requirements

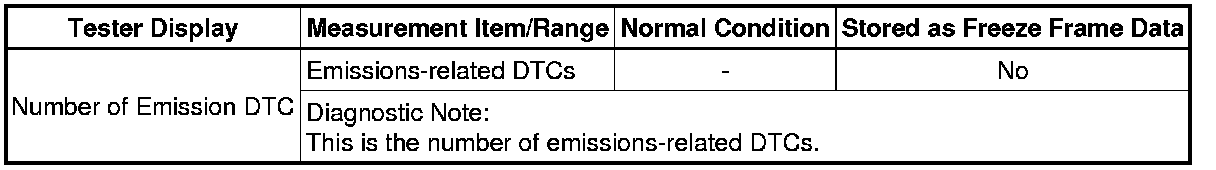

Number of Emission DTC

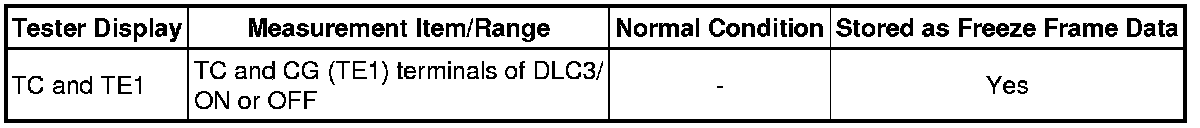

TC and TE1





18. Misfire (Gas Misfire)

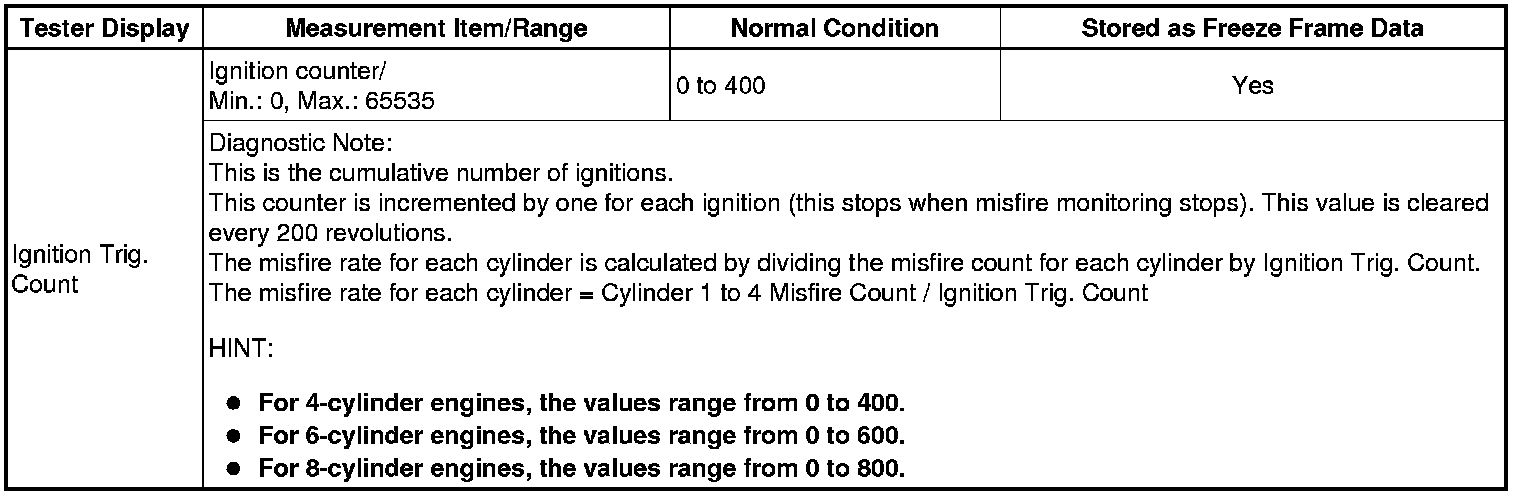

Ignition Trig. Count

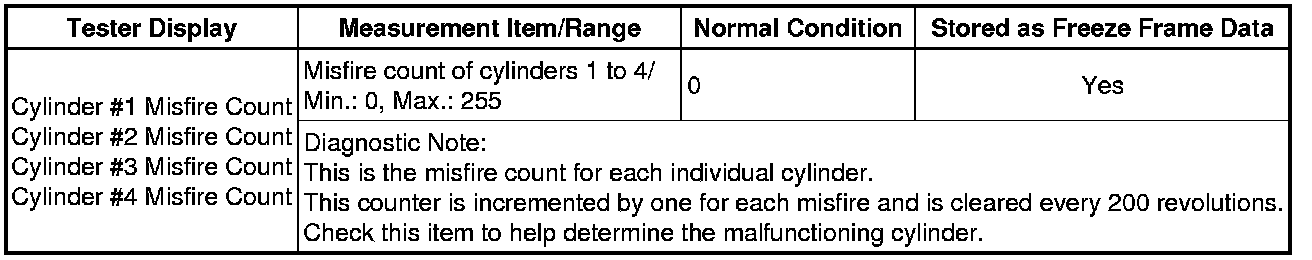

Cylinder #1 Misfire Count to Cylinder #4 Misfire Count

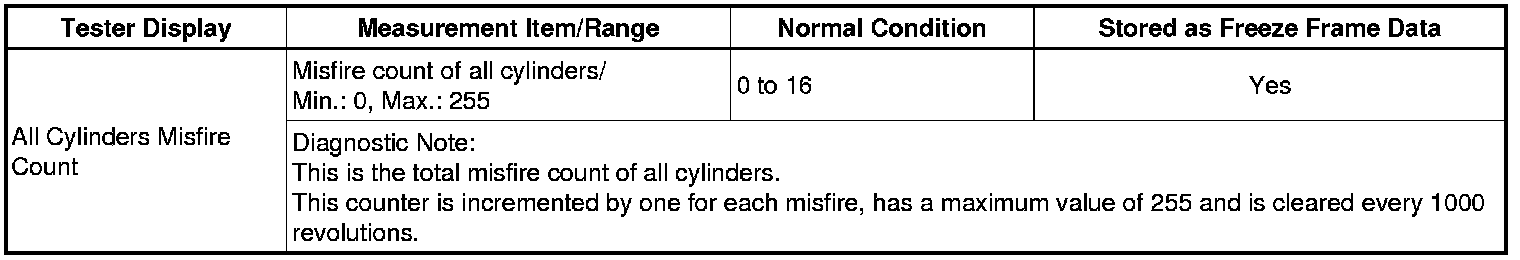

All Cylinders Misfire Count

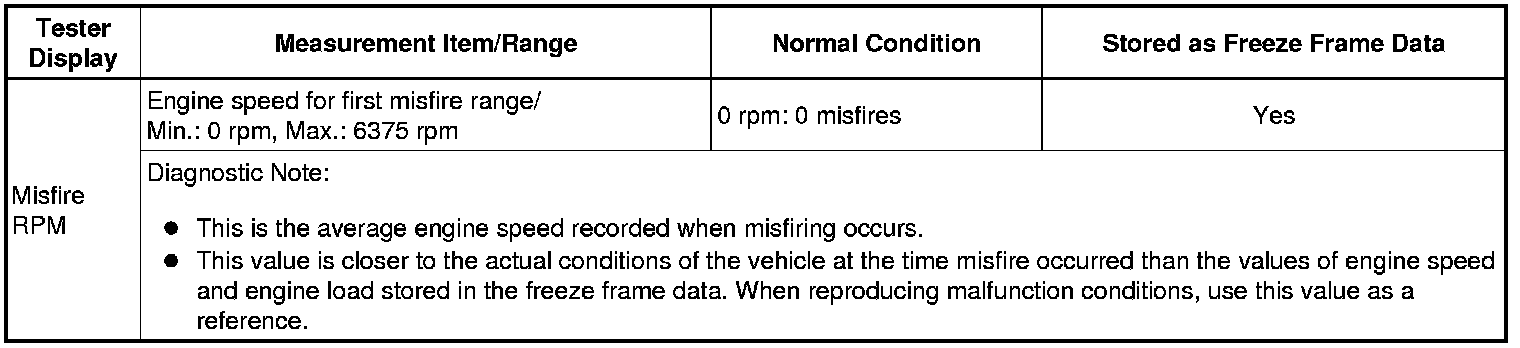

Misfire RPM

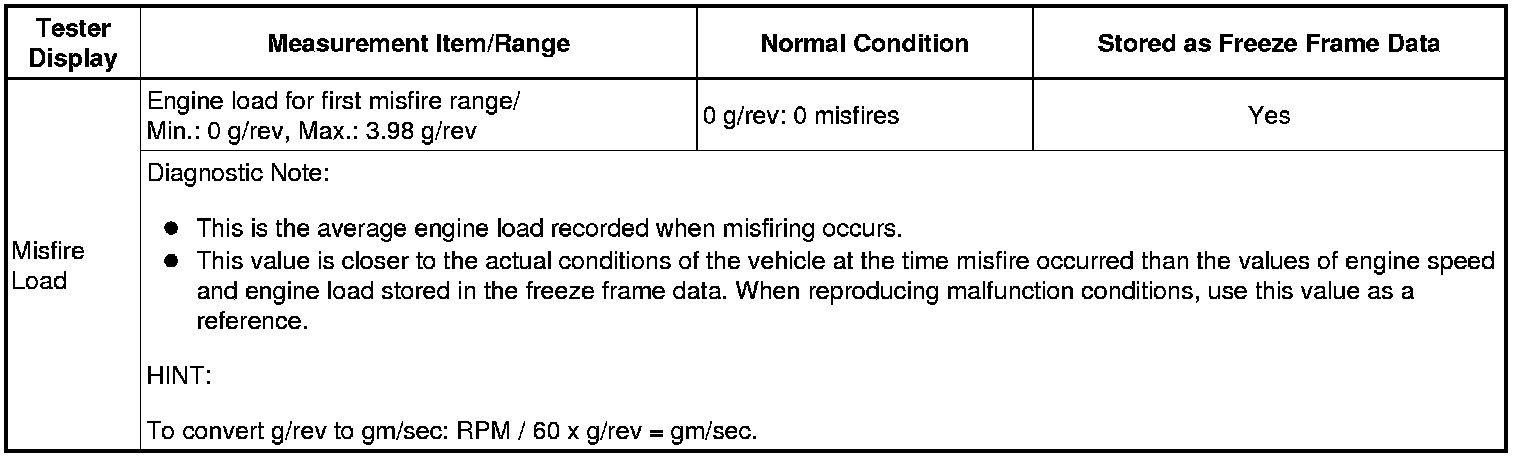

Misfire Load

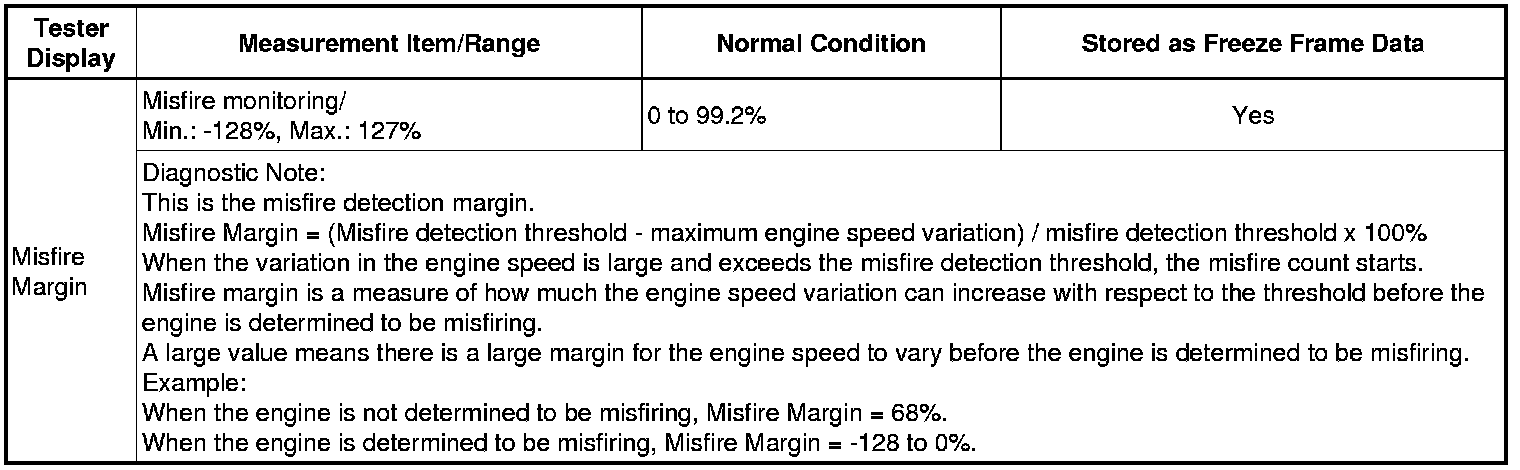

Misfire Margin

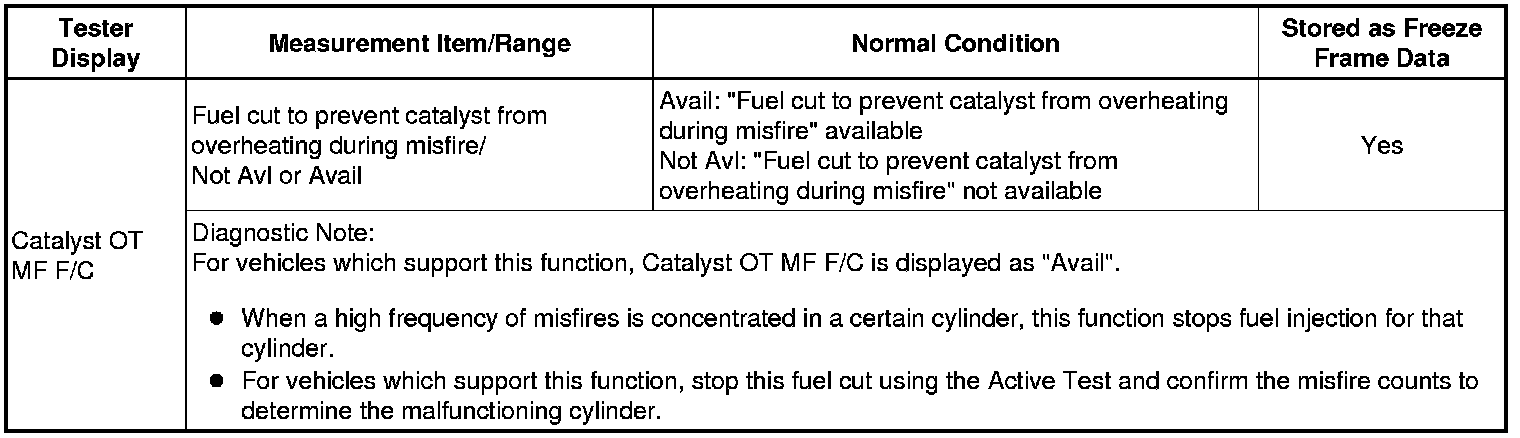

Catalyst OT MF F/C

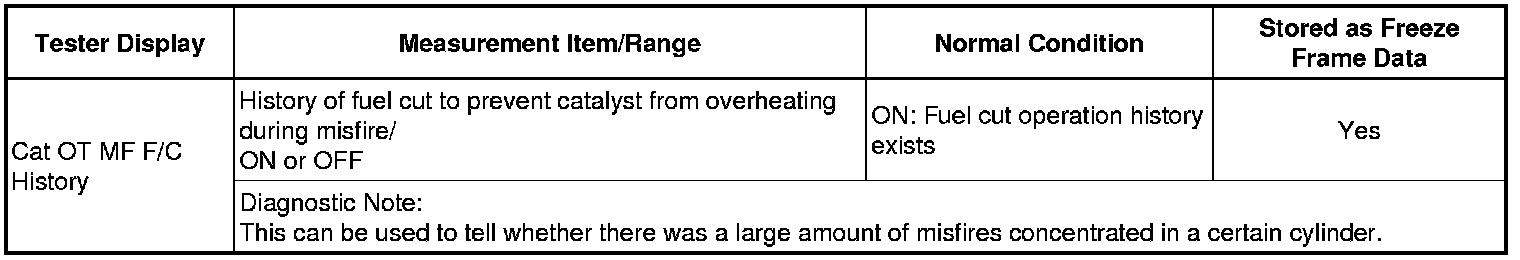

Cat OT MF F/C History

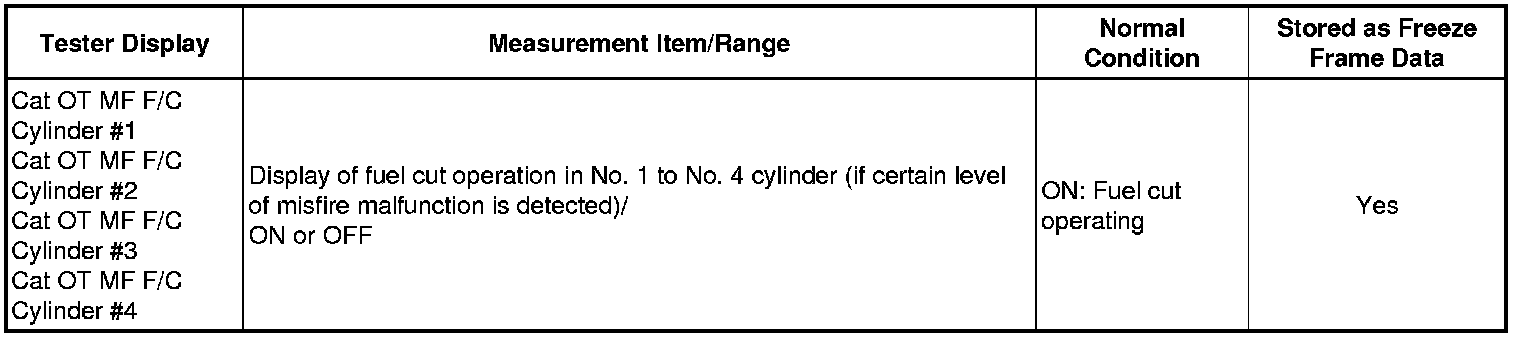

Cat OT MF F/C Cylinder #1 to #4





19. Various Vehicle Conditions 4 (All Data)

Tumble C.V Duty Ratio

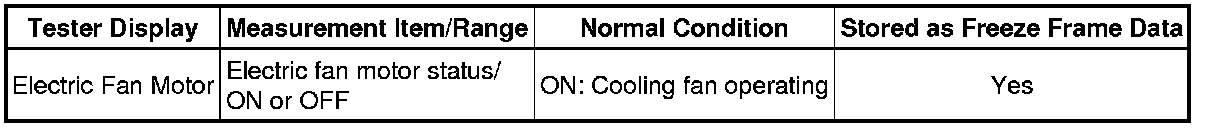

Electric Fan Motor

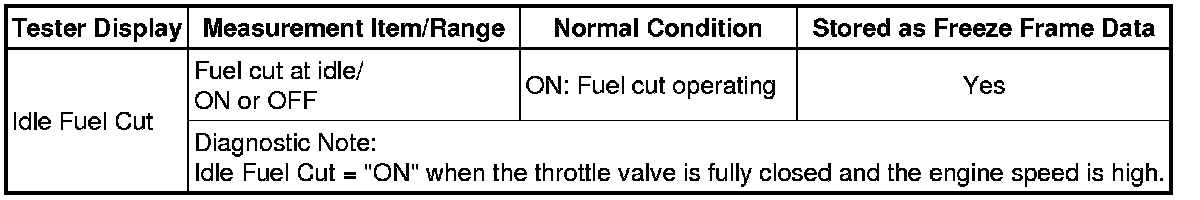

Idle Fuel Cut

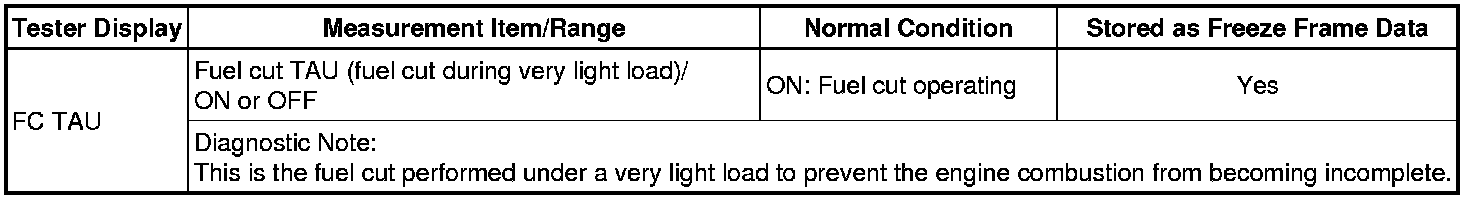

FC TAU

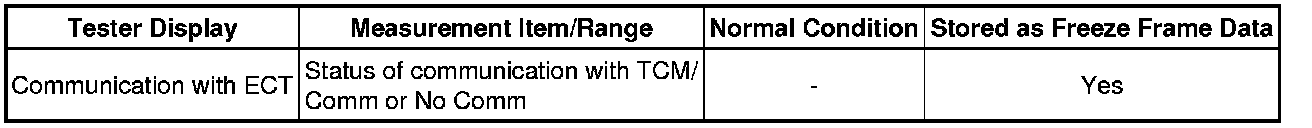

Communication with ECT

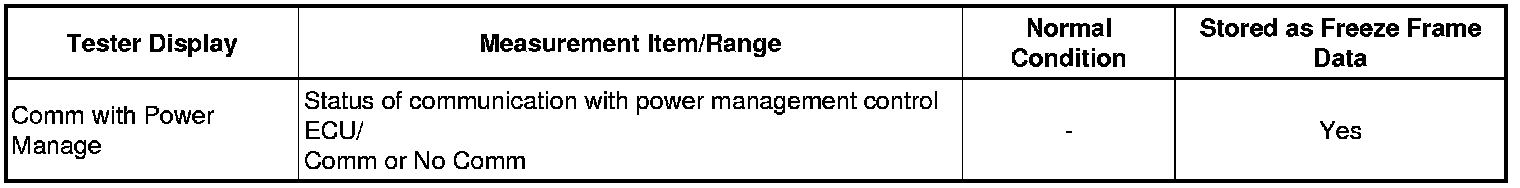

Comm with Power Manage

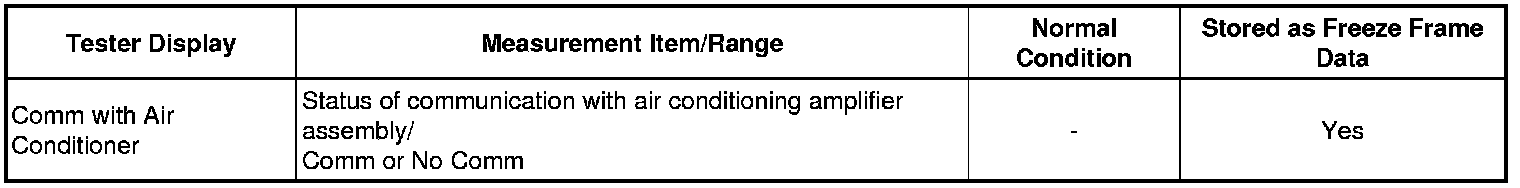

Comm with Air Conditioner

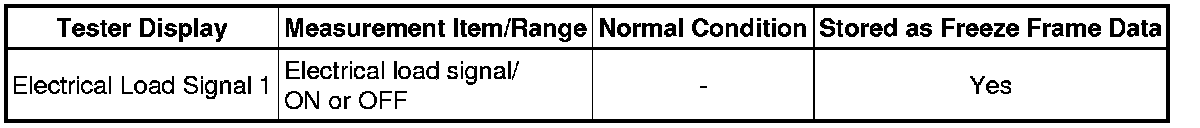

Electrical Load Signal 1

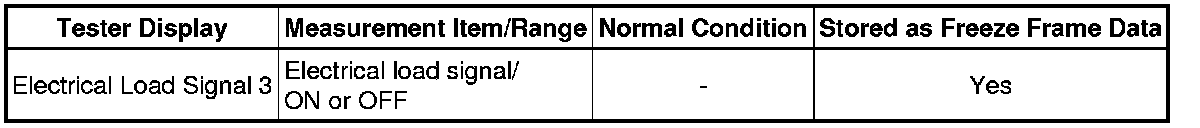

Electrical Load Signal 3





20. Various Vehicle Conditions 5 (Vehicle Information)

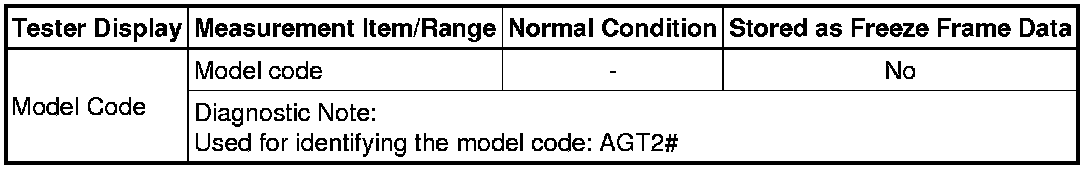

Model Code

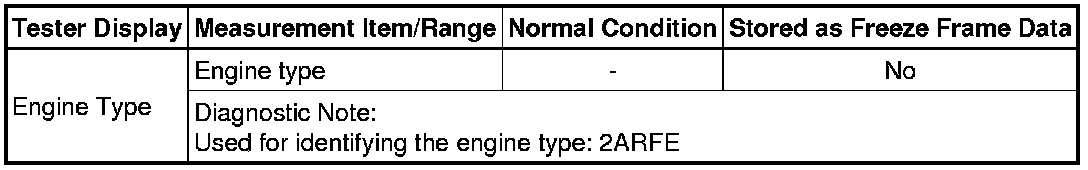

Engine Type

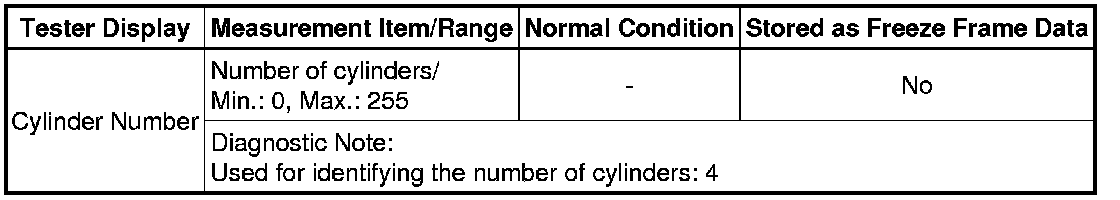

Cylinder Number

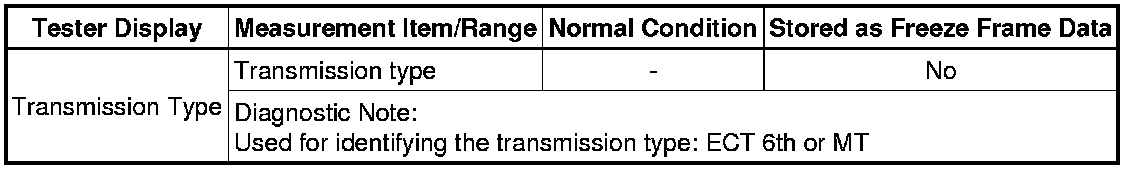

Transmission Type

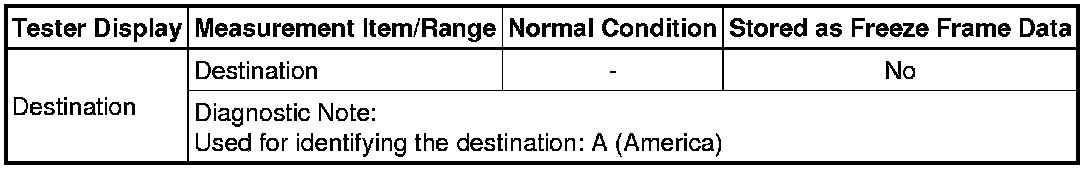

Destination

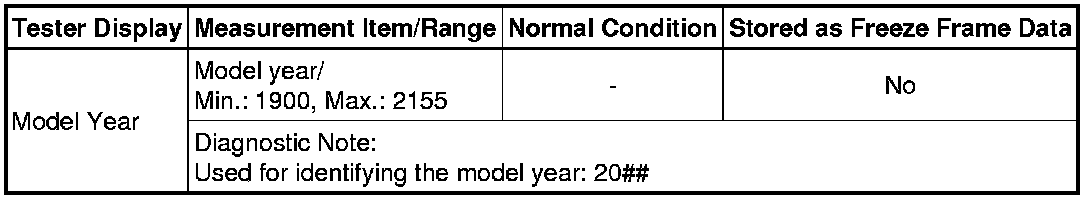

Model Year





System Identification





21. Compression (Compression)

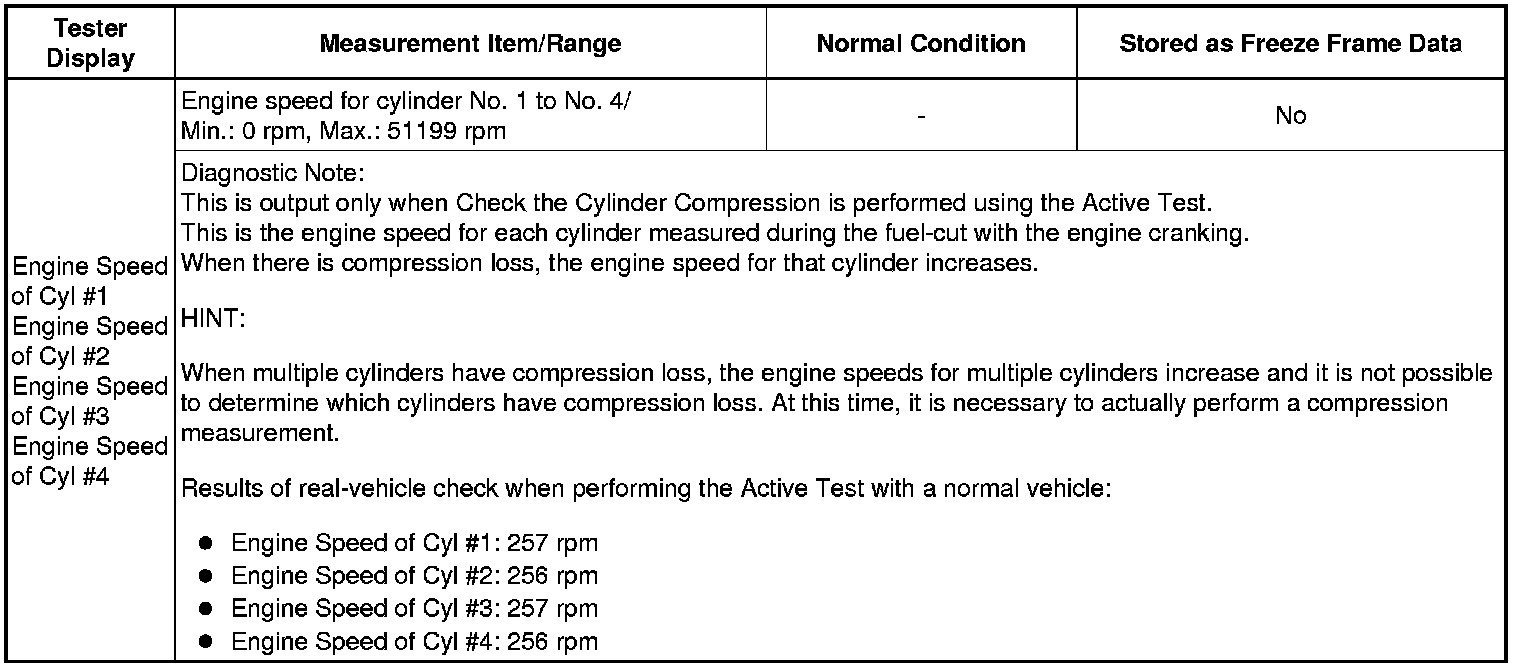

Engine Speed of Cyl #1 to #4

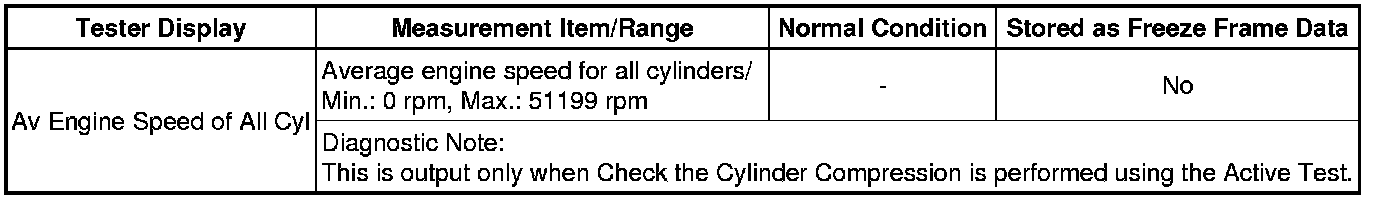

Av Engine Speed of All Cyl





22. A/F Cylinder Imbalance (Gas AF Control)

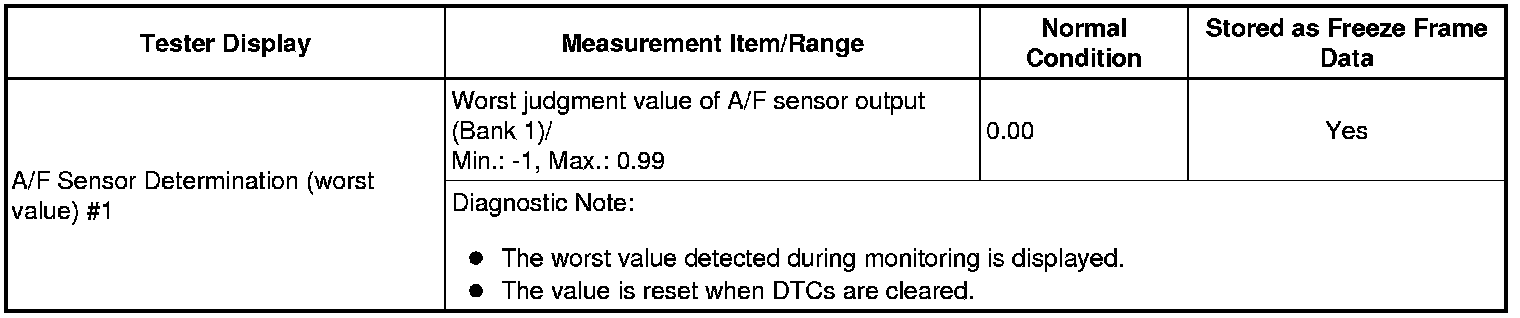

A/F Sensor Determination (worst value) #1

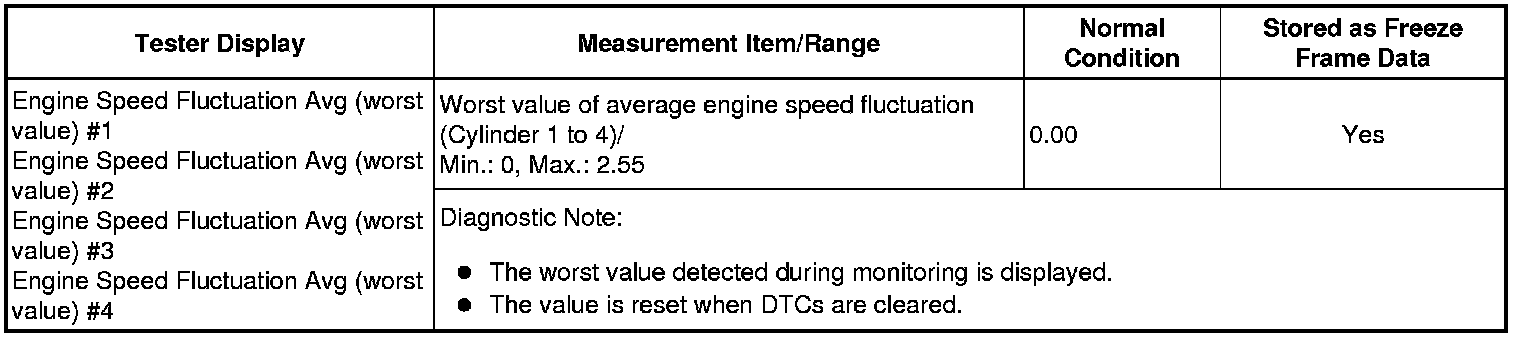

Engine Speed Fluctuation Avg (worst value) #1 to #4





23. Automatic Transmission 1 (All Data)

Received MIL from ECT





Shift Position Sig from ECT

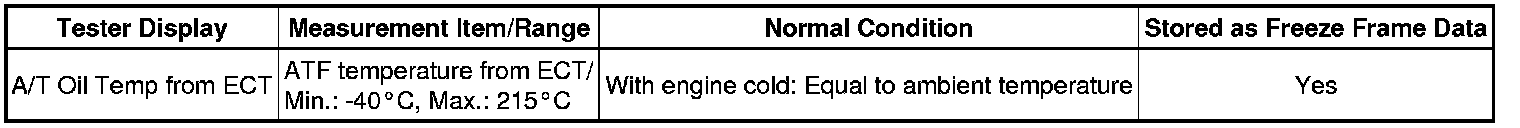

A/T Oil Temp from ECT

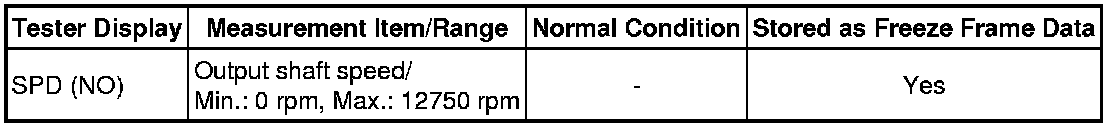

SPD (NO)

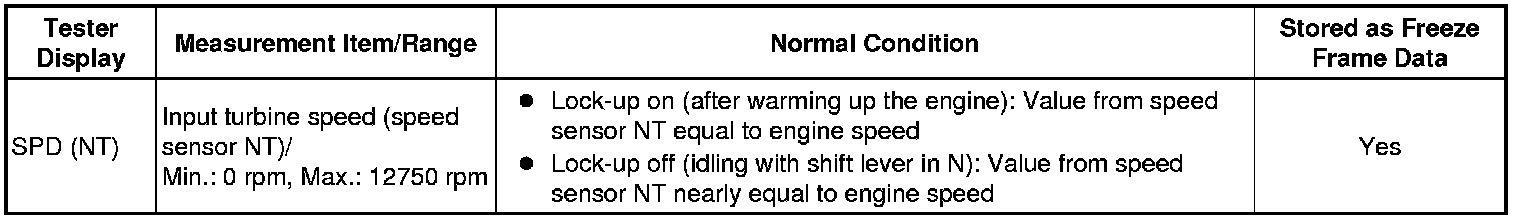

SPD (NT)





24. Automatic Transmission 2 (AT)

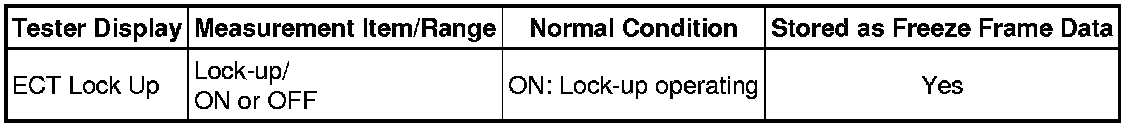

ECT Lock Up

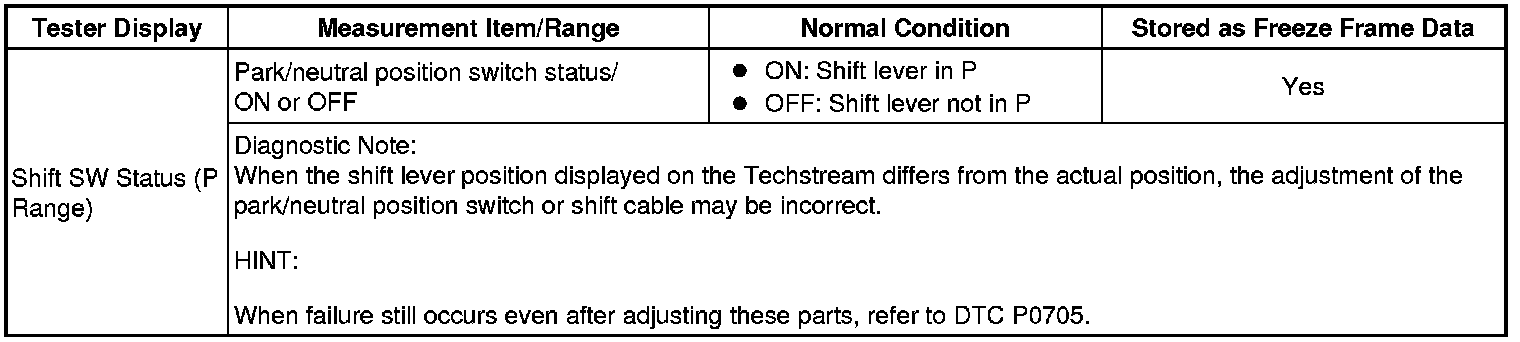

Shift SW Status (P Range)

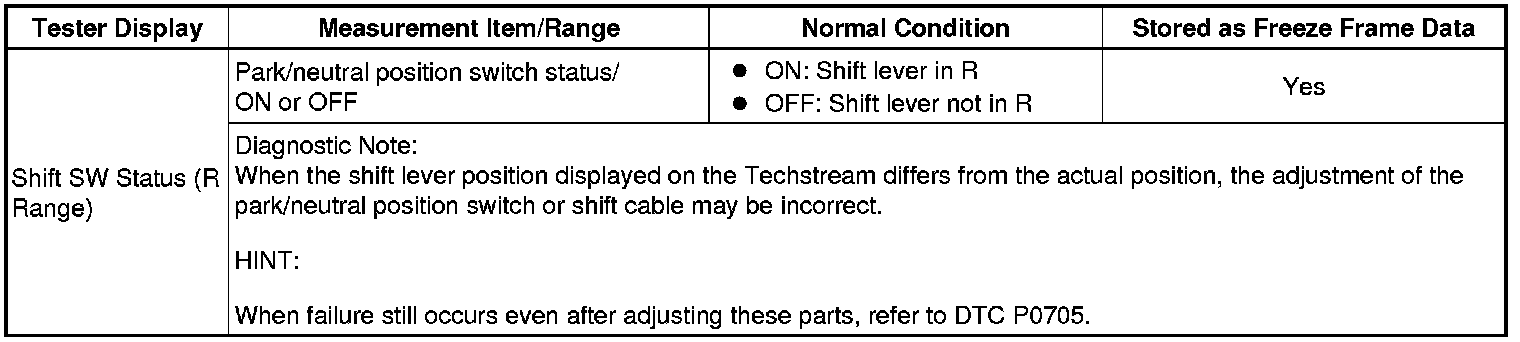

Shift SW Status (R Range)

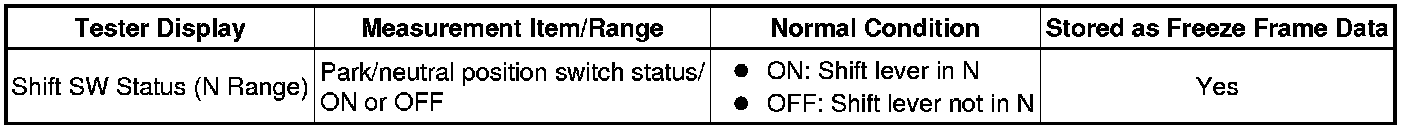

Shift SW Status (N Range)

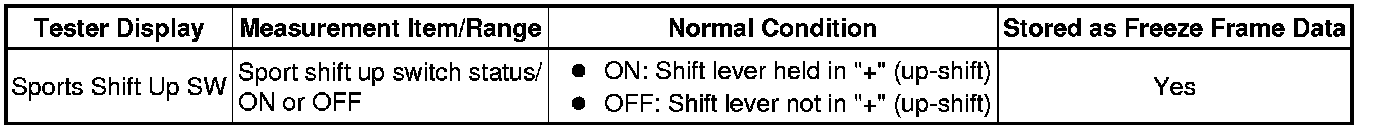

Sports Shift Up SW

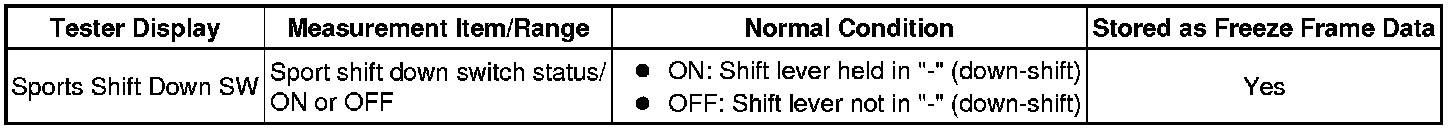

Sports Shift Down SW

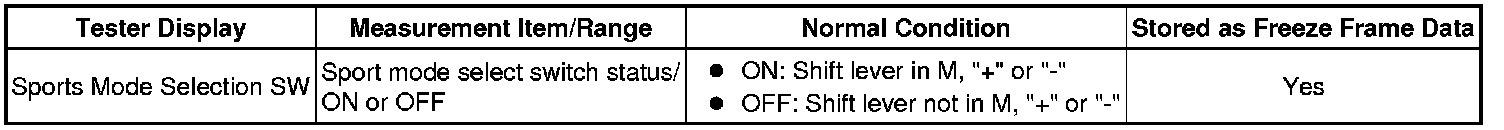

Sports Mode Selection SW

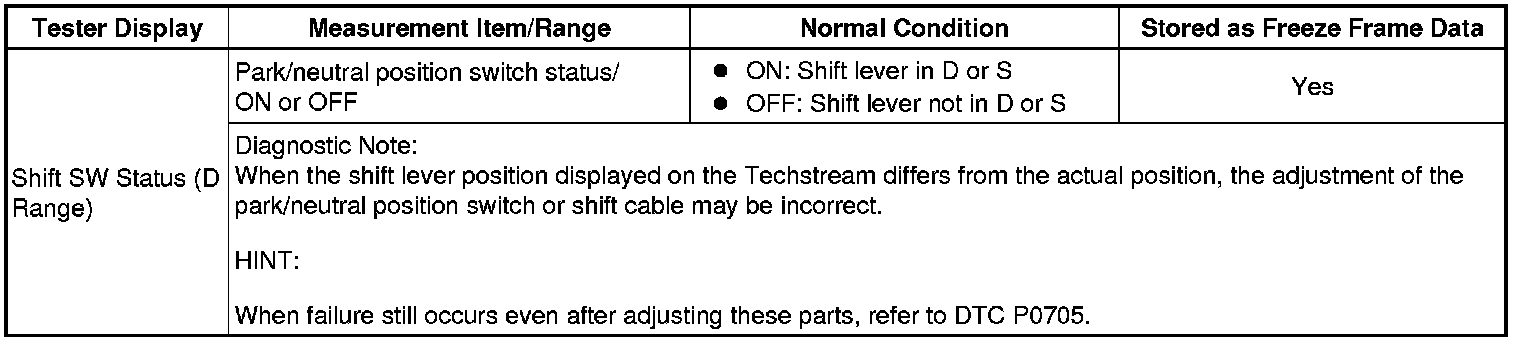

Shift SW Status (D Range)
