2AR-FE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST (Continued)

4. Fuel System (Gas General)

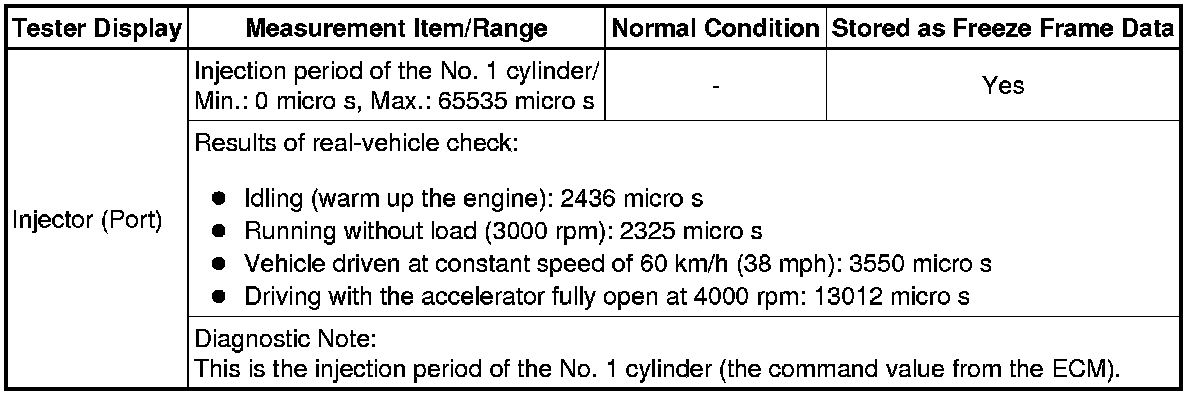

Injector (Port)

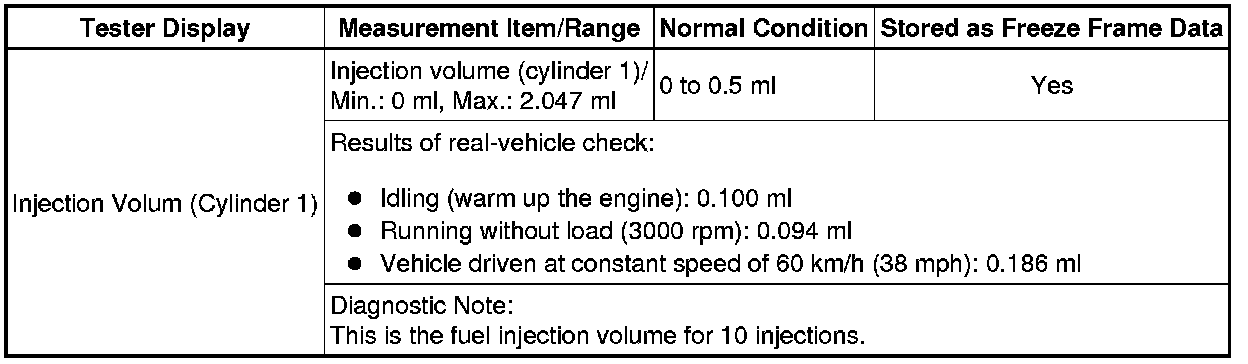

Injection Volume (Cylinder 1)

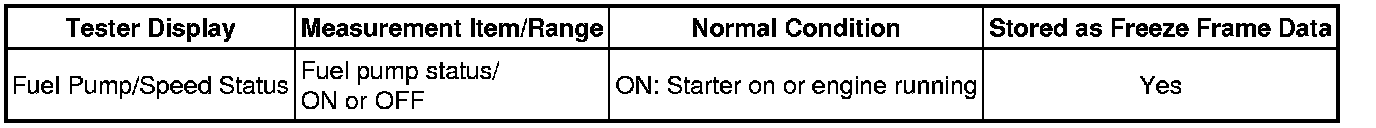

Fuel Pump/Speed Status





5. EVAP System 1 (All Data)

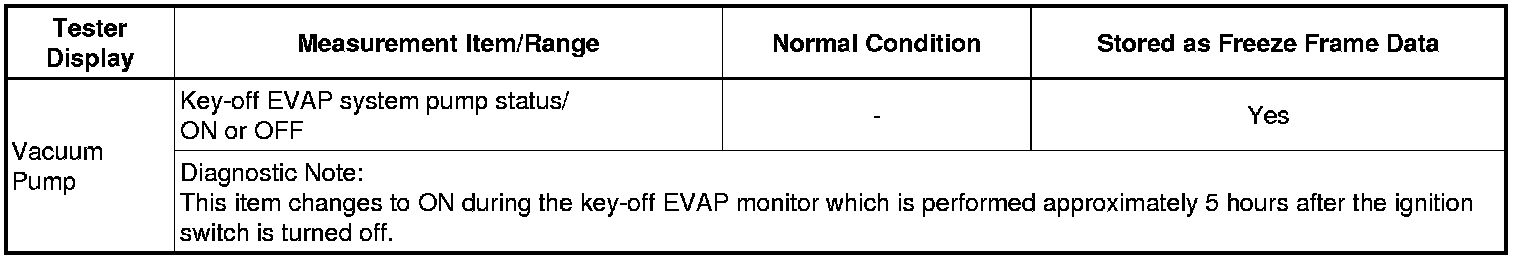

Vacuum Pump





6. Intake Control 1 (Gas Intake Control)

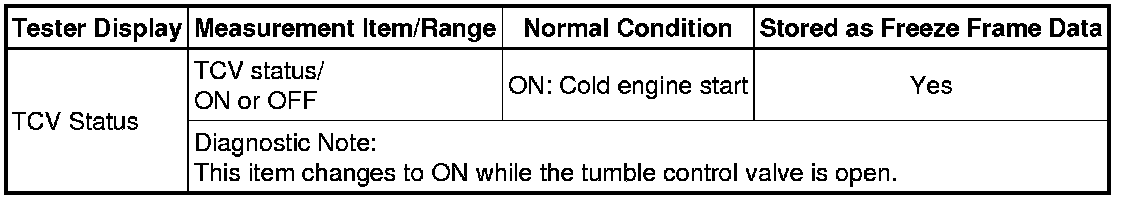

TCV Status





7. EVAP System 2 (Gas Evaporative)

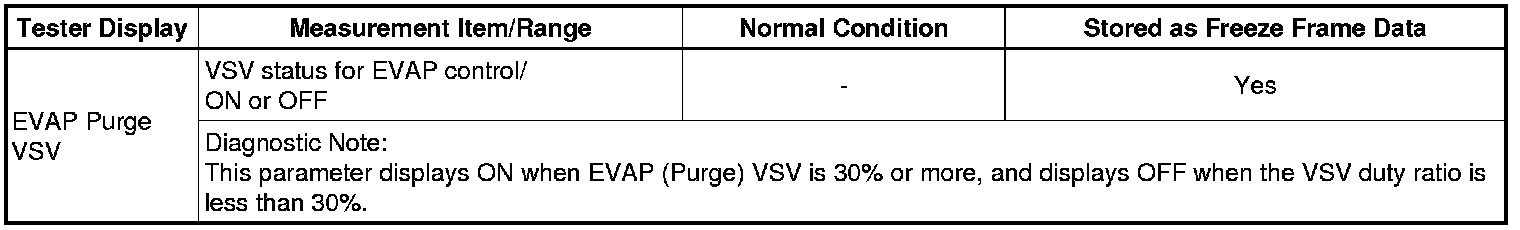

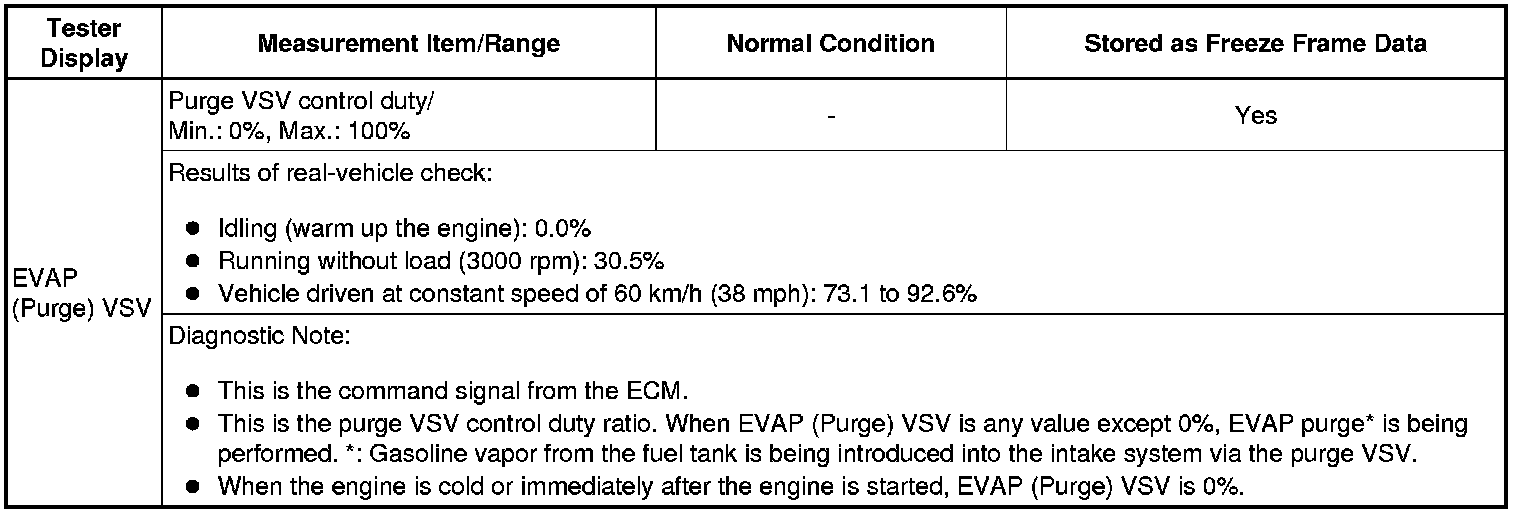

EVAP (Purge) VSV

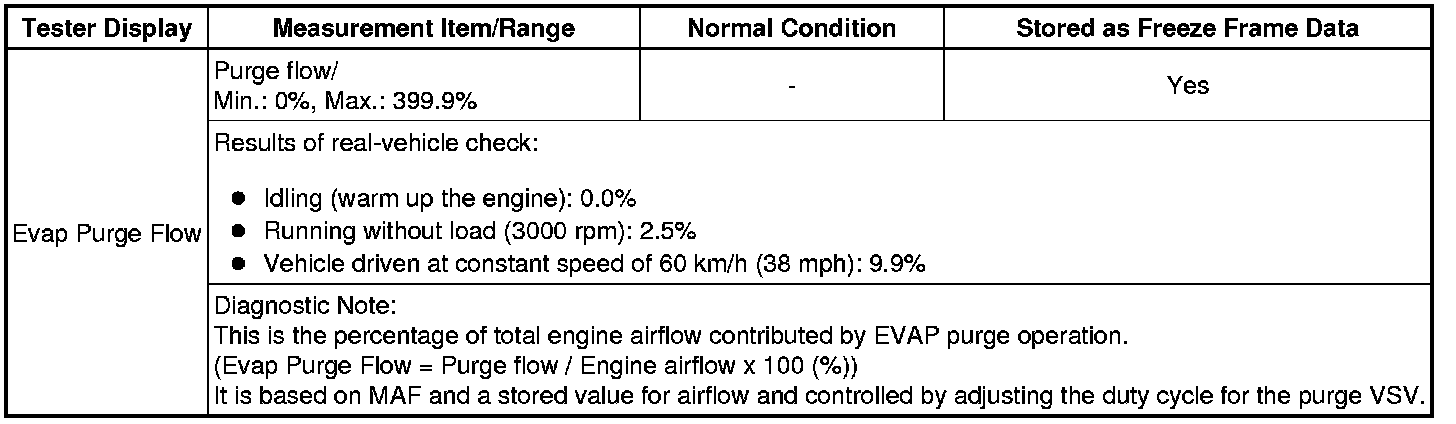

Evap Purge Flow





Purge Density Learn Value

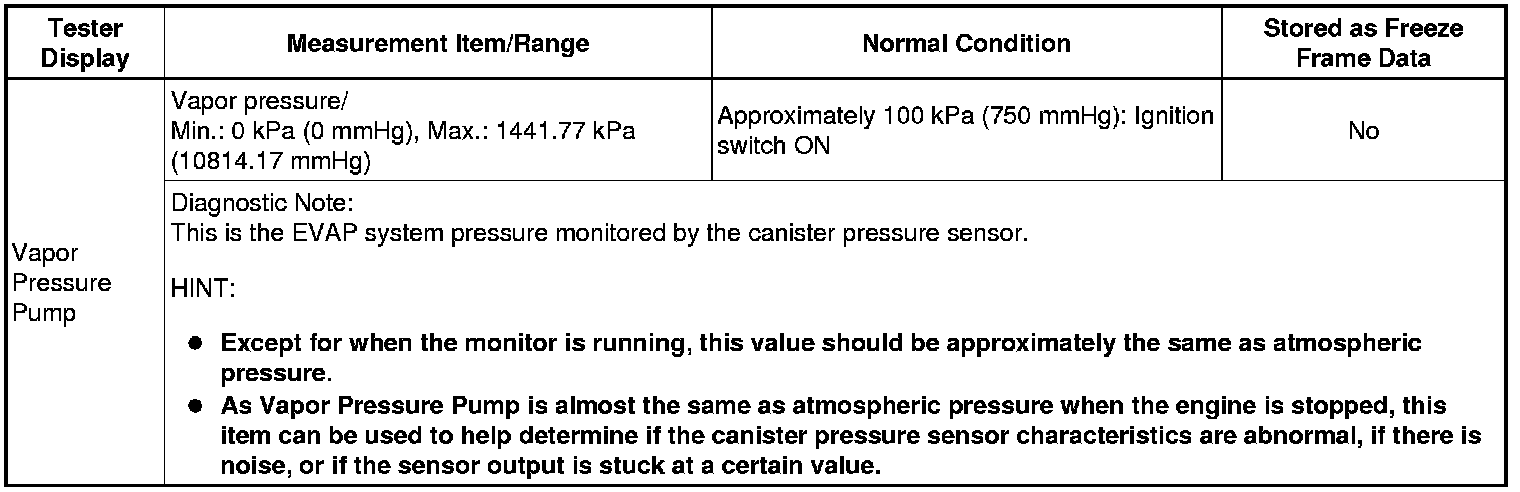

Vapor Pressure Pump

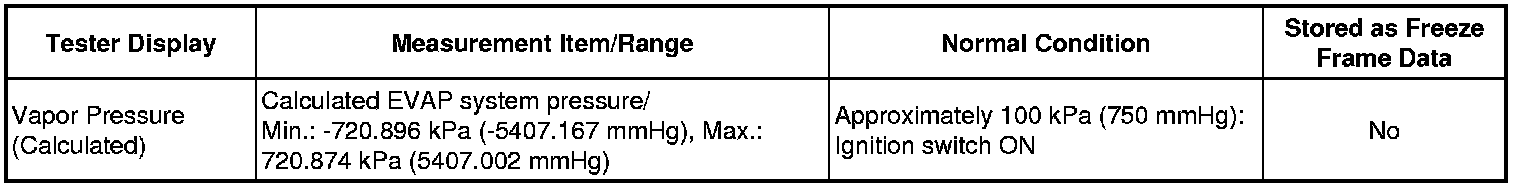

Vapor Pressure (Calculated)

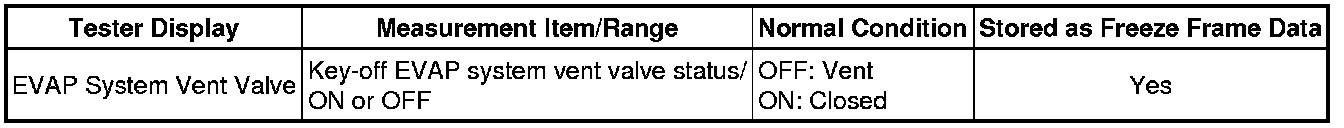

EVAP System Vent Valve





EVAP Purge VSV

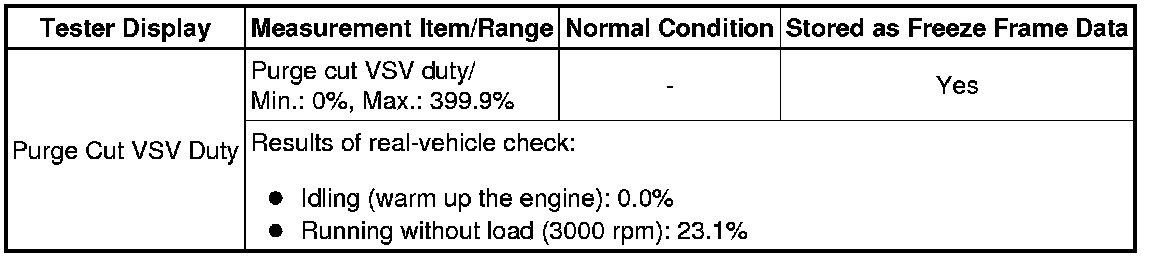

Purge Cut VSV Duty





8. Air Fuel Ratio Control 1 (All Data)

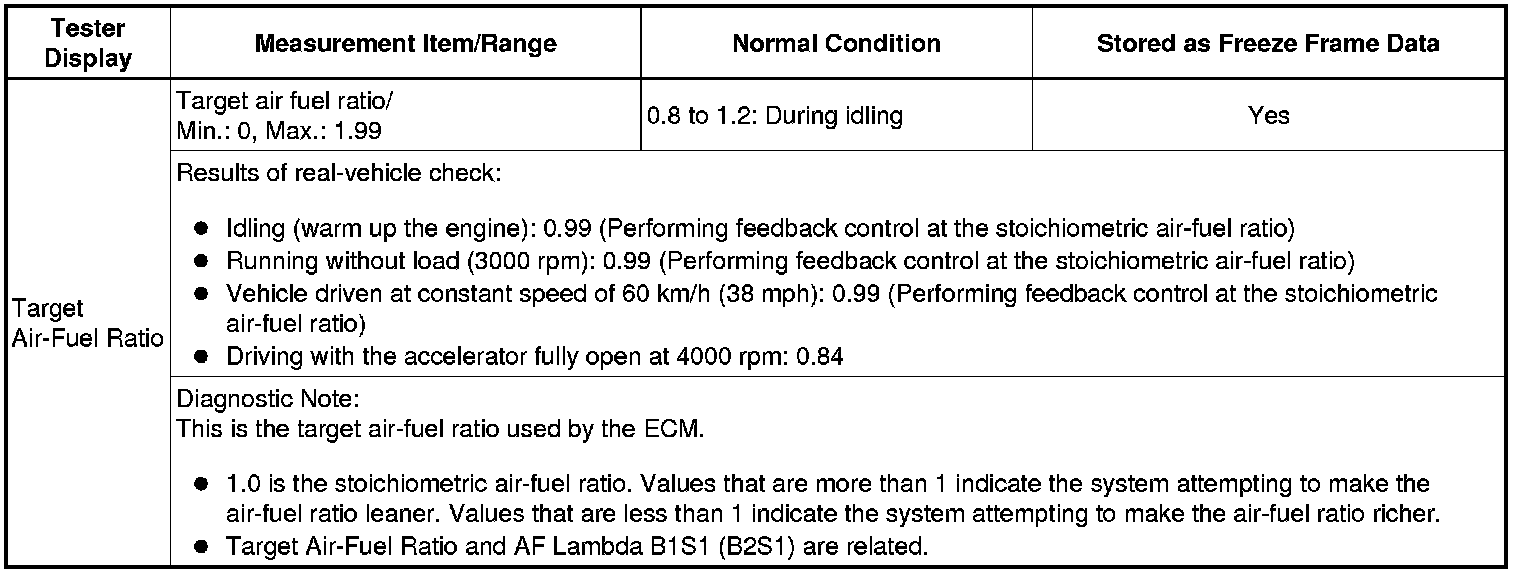

Target Air-Fuel Ratio





9. Air Fuel Ratio Control 2 (Gas A/F O2 Sensor)

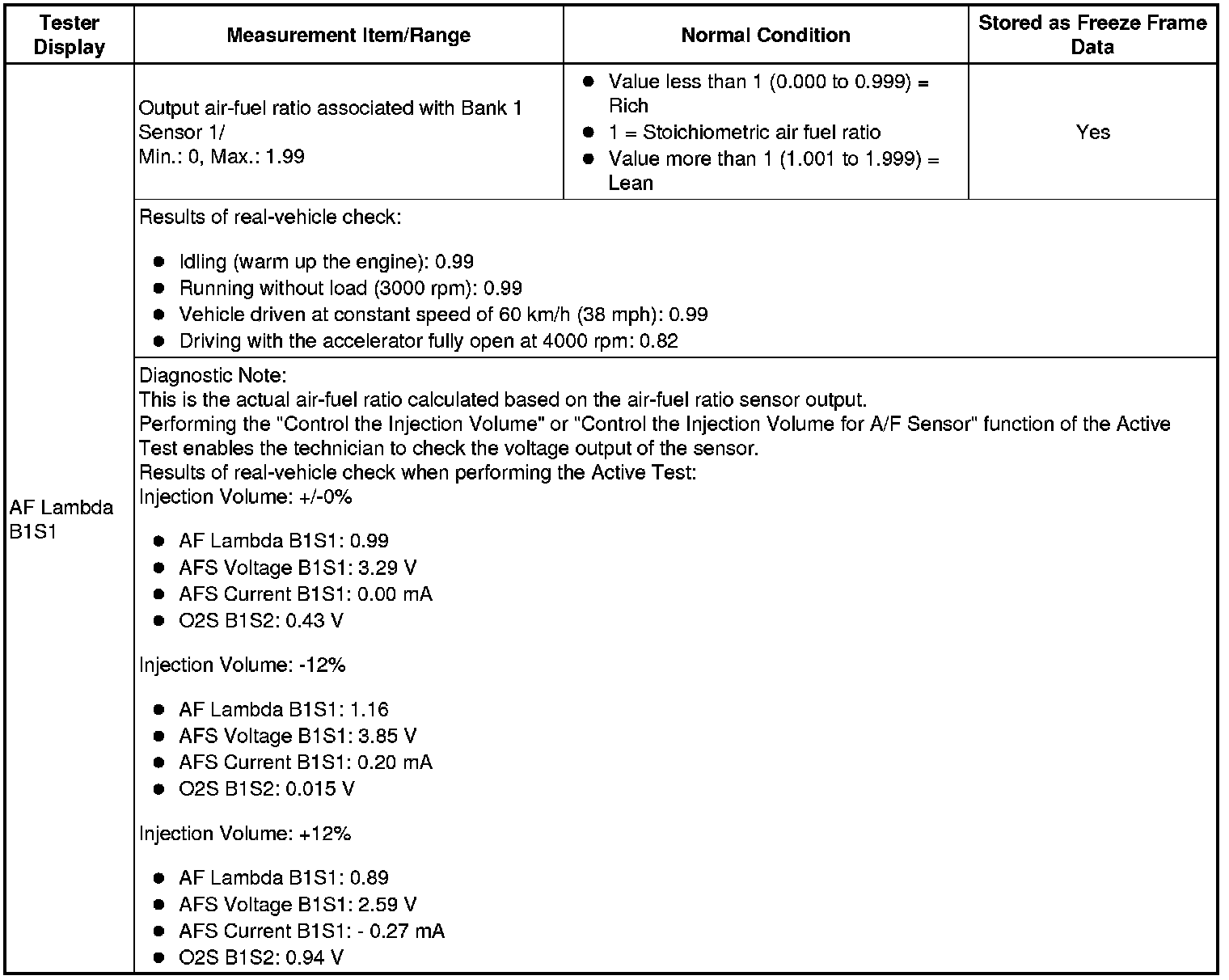

AF Lambda B1S1

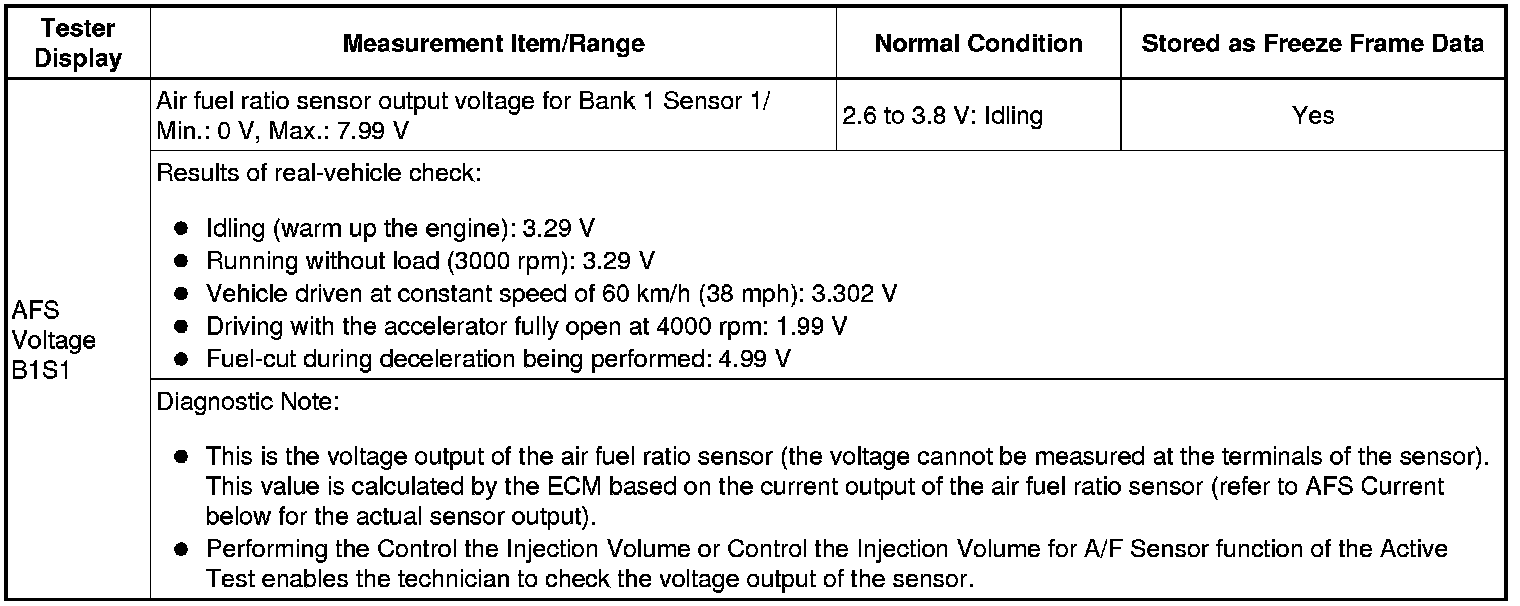

AFS Voltage B1S1

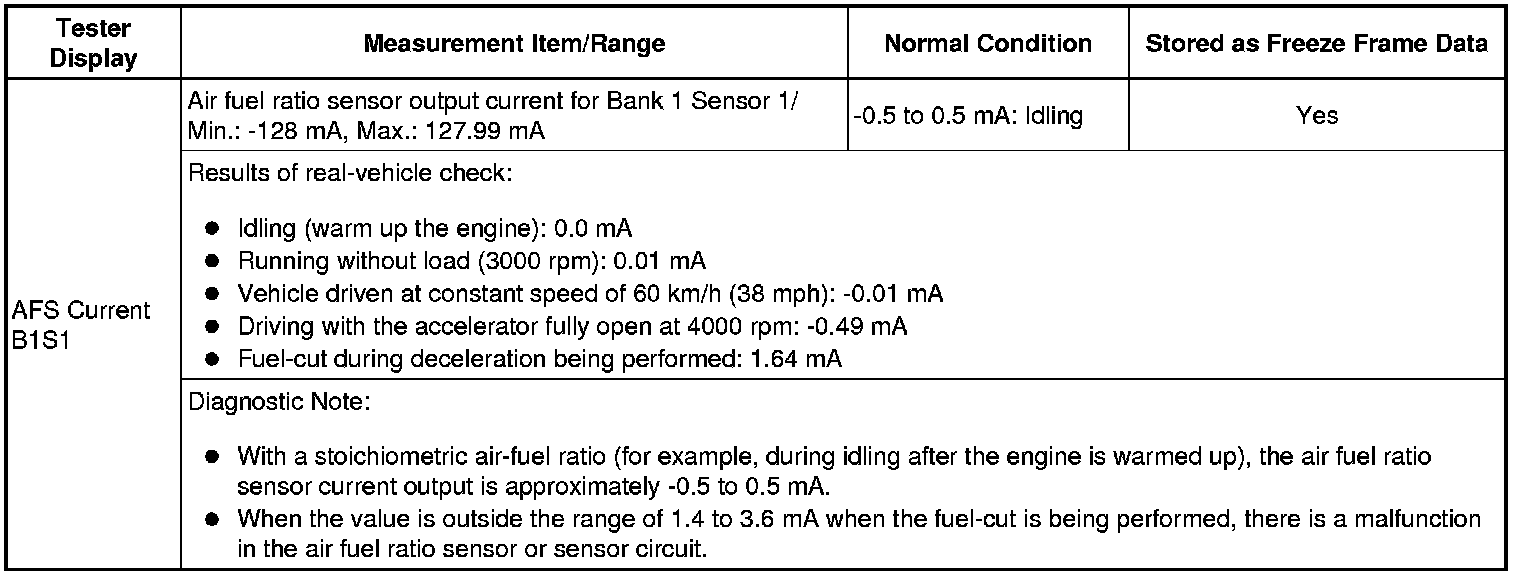

AFS Current B1S1

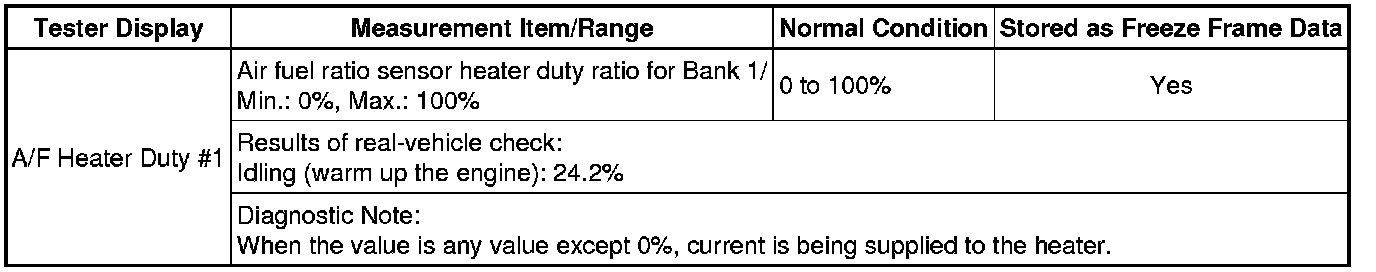

A/F Heater Duty #1

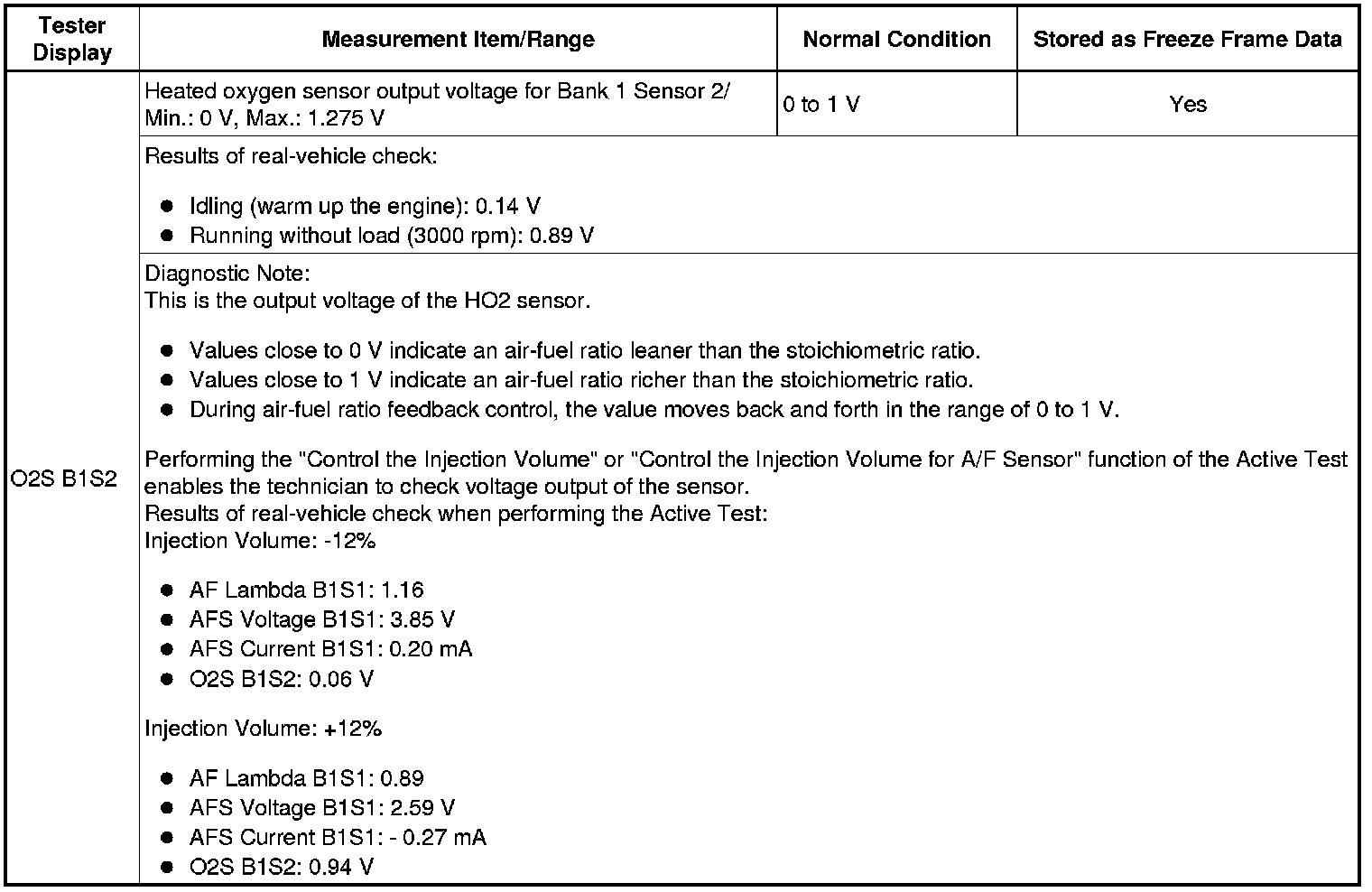

O2S B1S2

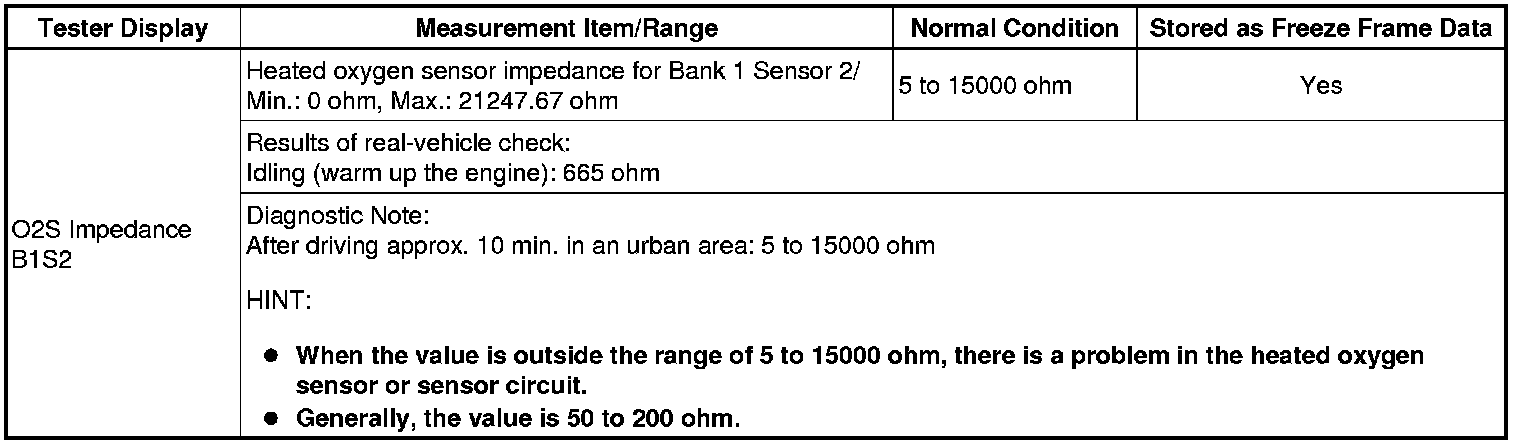

O2S Impedance B1S2

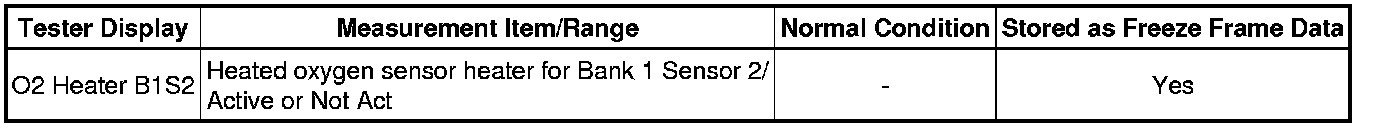

O2 Heater B1S2

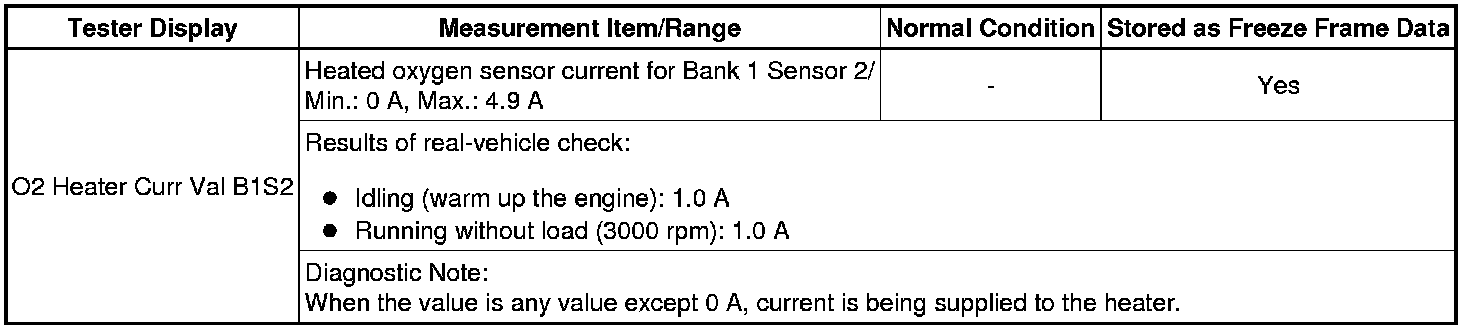

O2 Heater Curr Val B1S2





Short FT #1

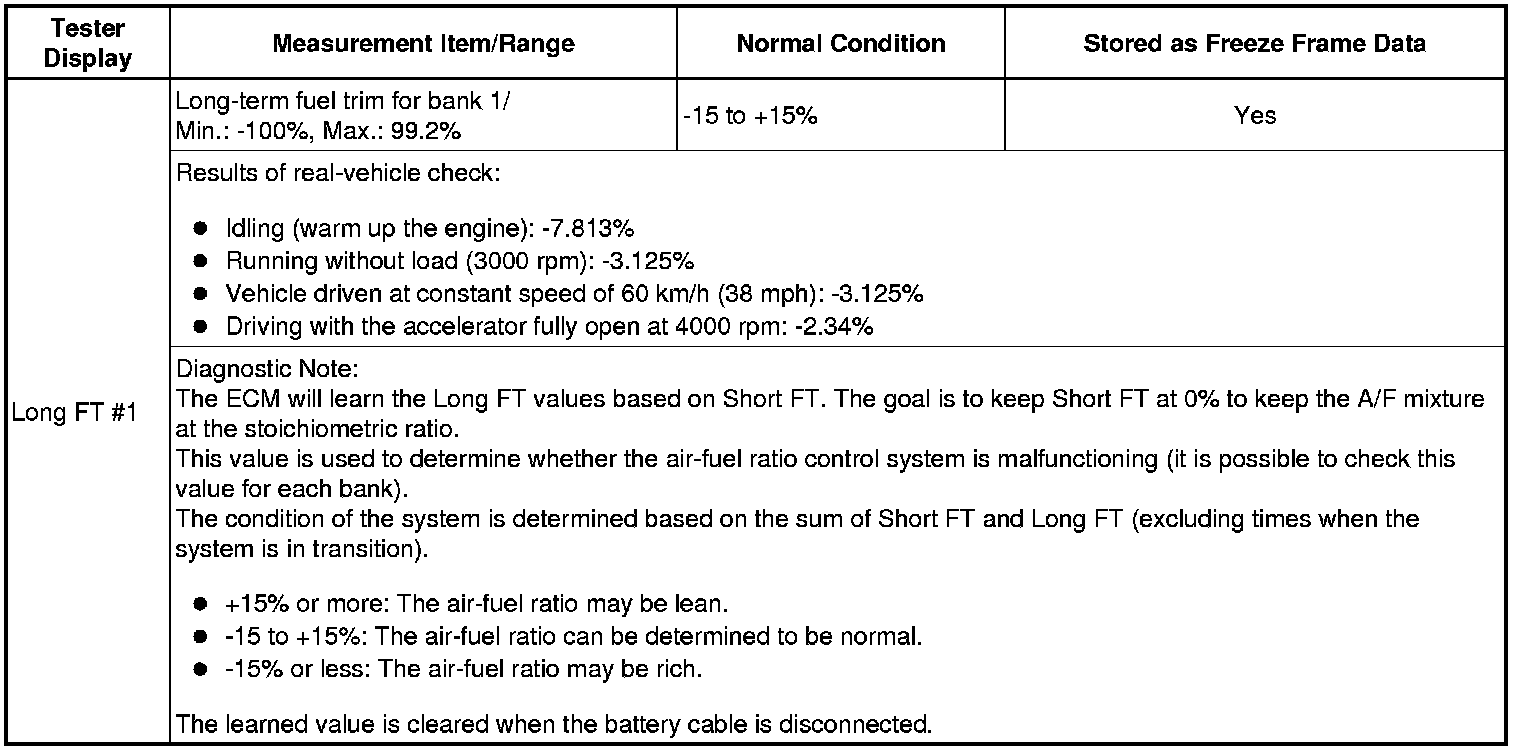

Long FT #1

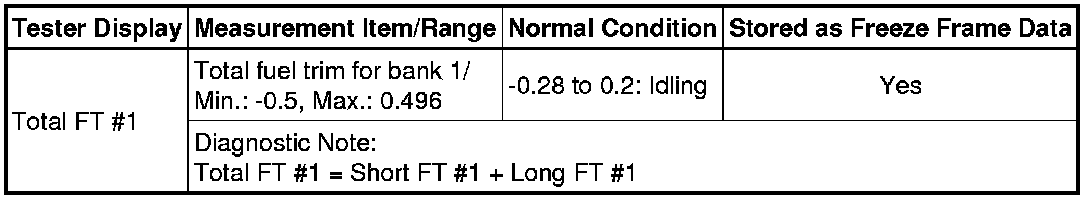

Total FT #1

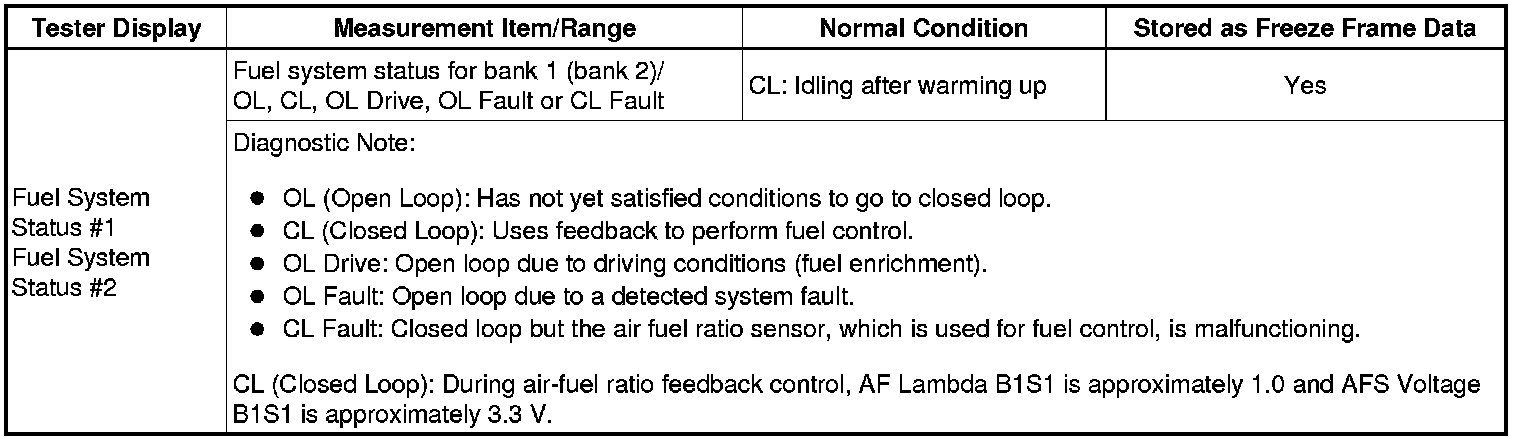

Fuel System Status #1, #2





10. Ignition System (Ignition)

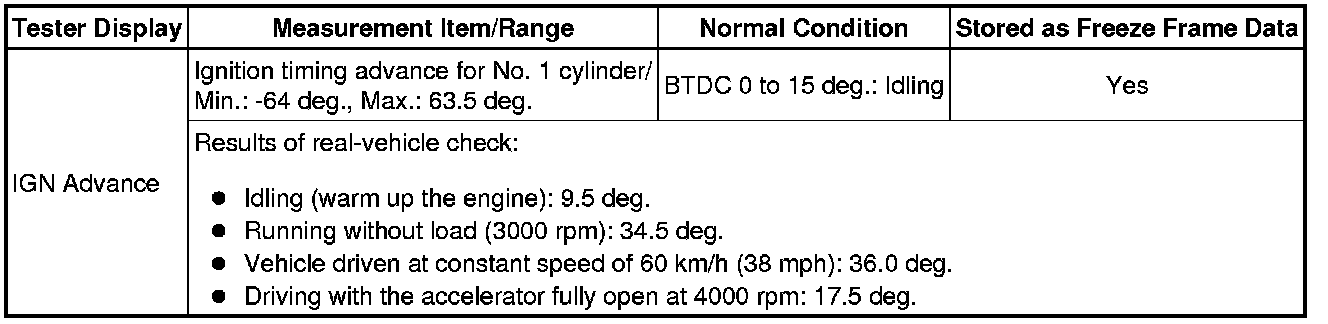

IGN Advance

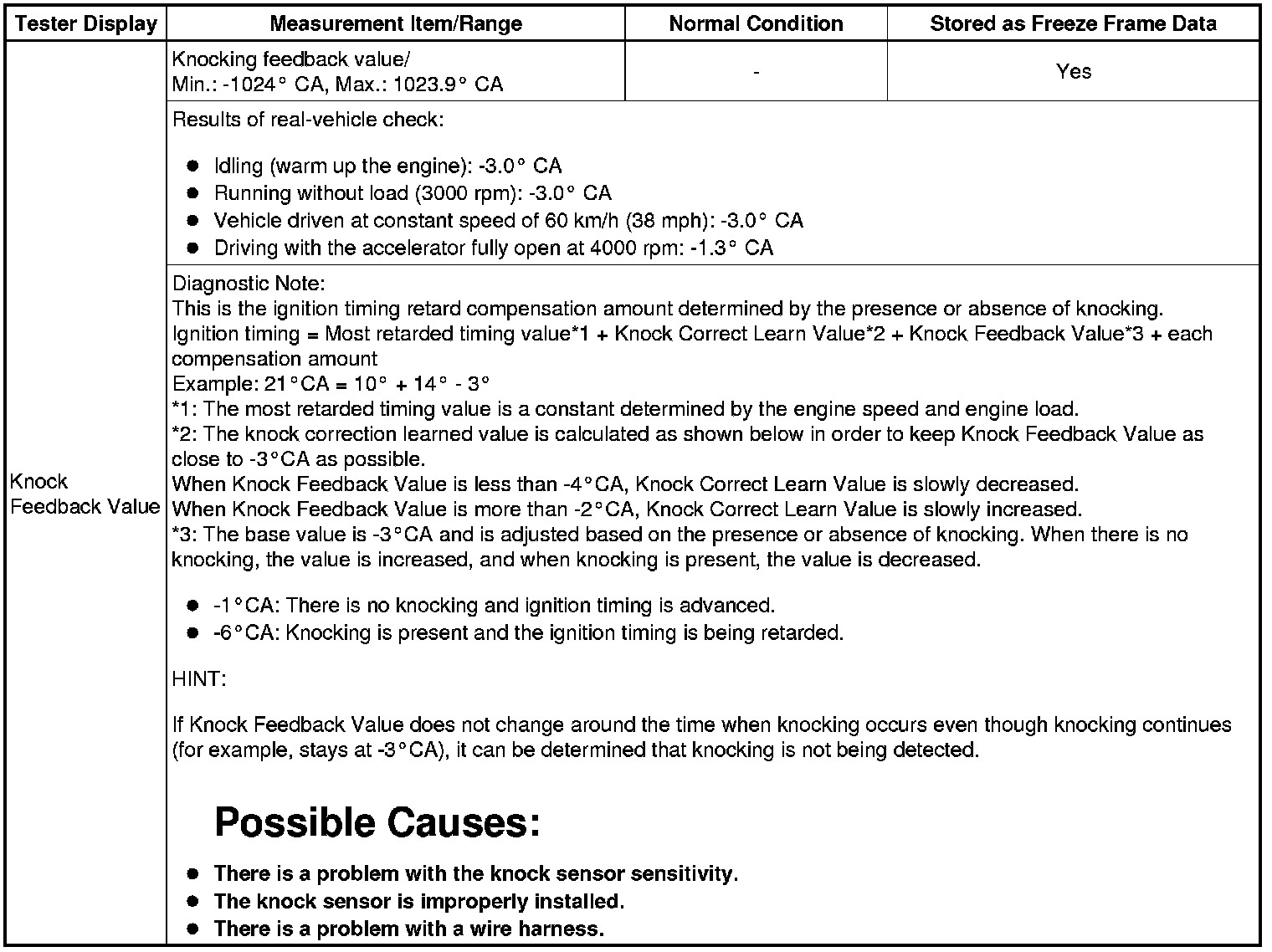

Knock Feedback Value








Knock Correct Learn Value





11. Intake Control 2 (Gas Intake Control)

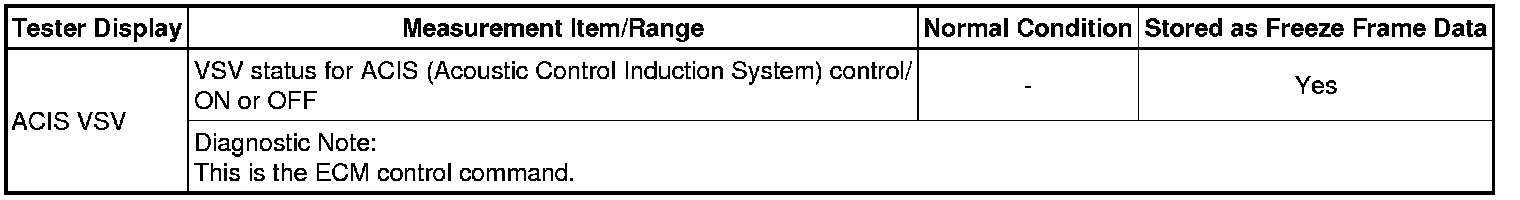

ACIS VSV

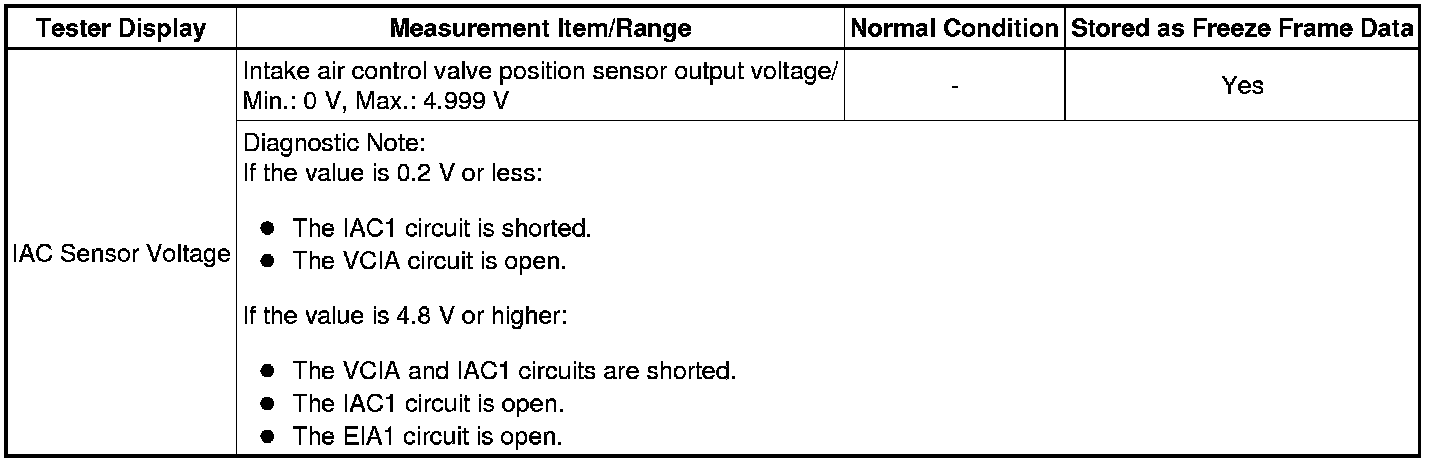

IAC Sensor Voltage

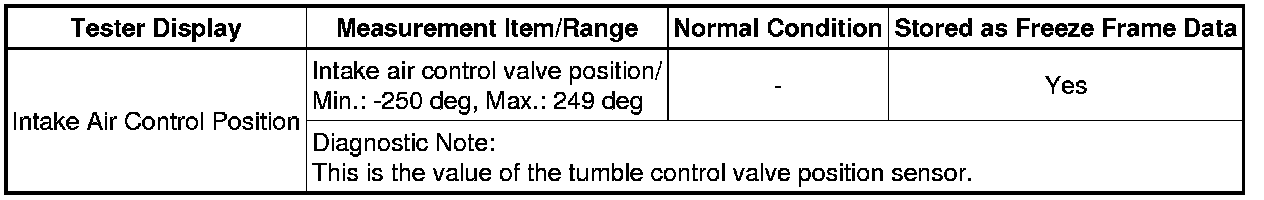

Intake Air Control Position





12. VVT Control (Gas Valve Control)

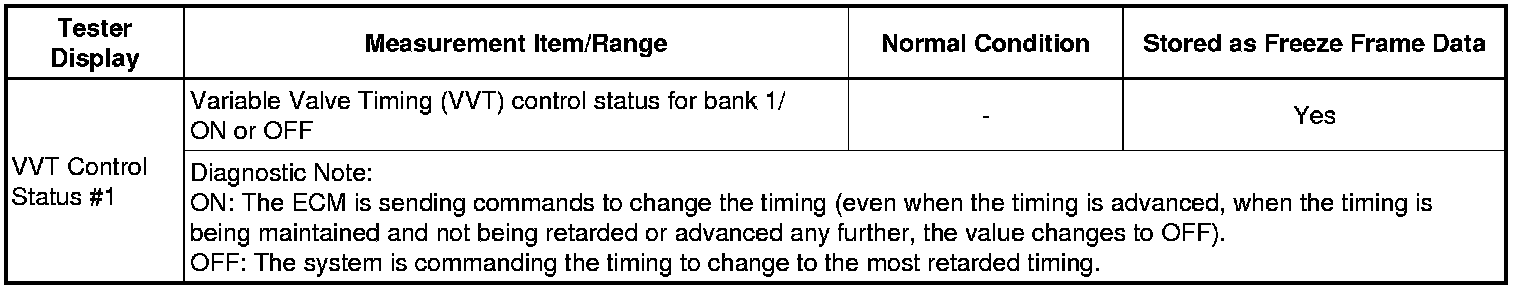

VVT Control Status #1

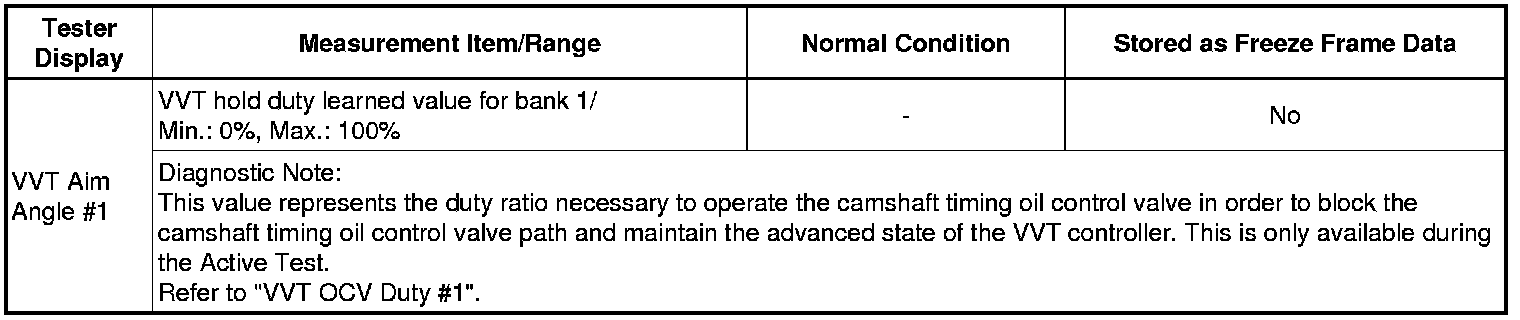

VVT Aim Angle #1

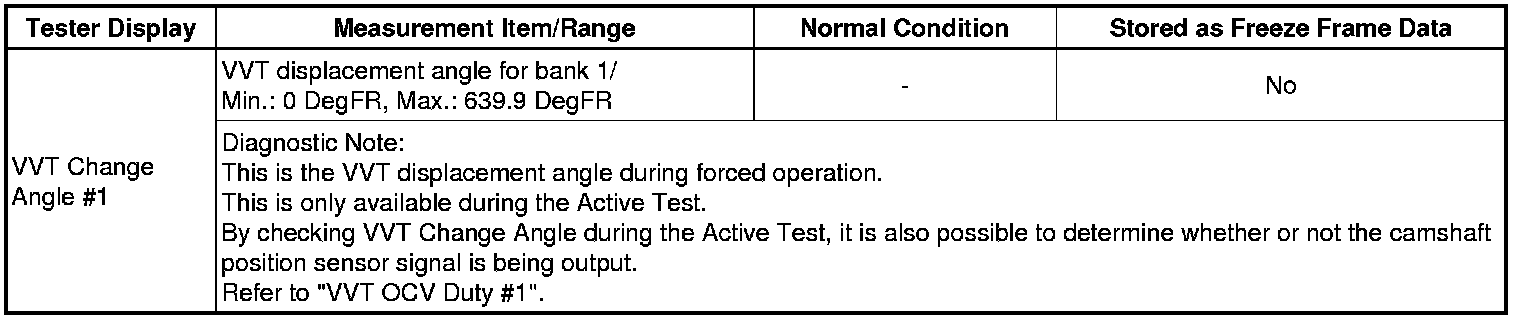

VVT Change Angle #1

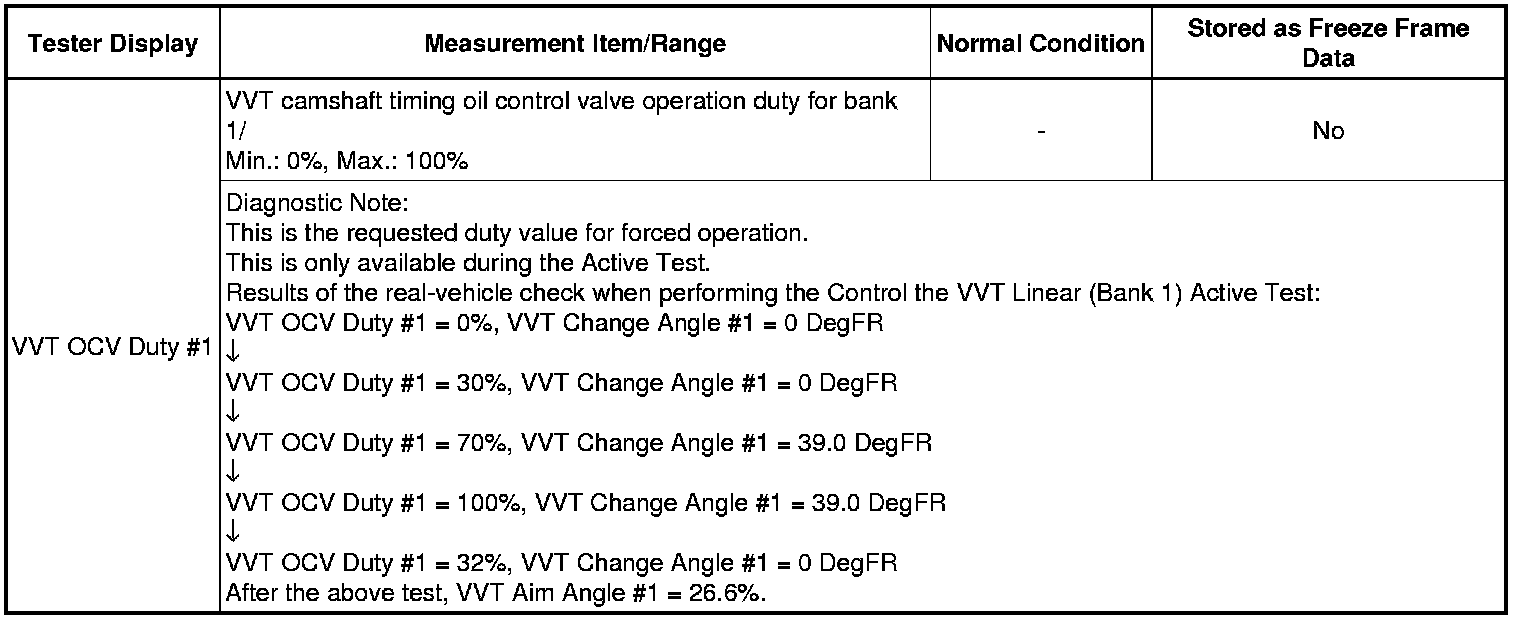

VVT OCV Duty #1

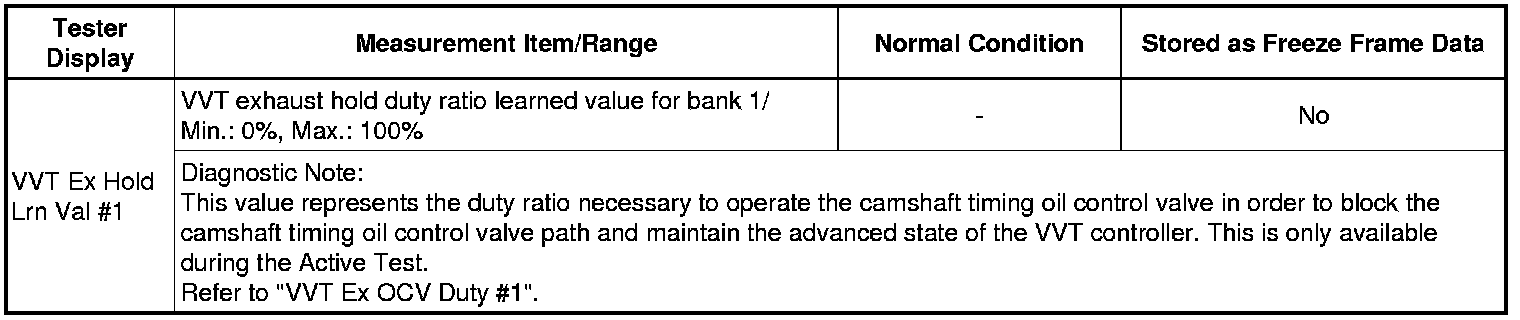

VVT Ex Hold Lrn Val #1

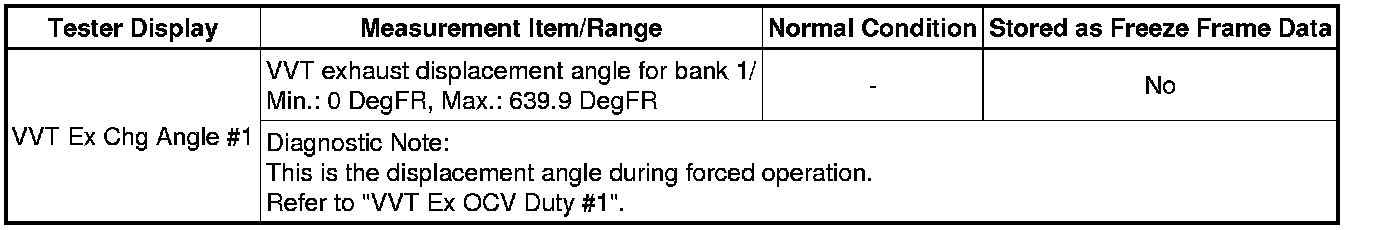

VVT Ex Chg Angle #1

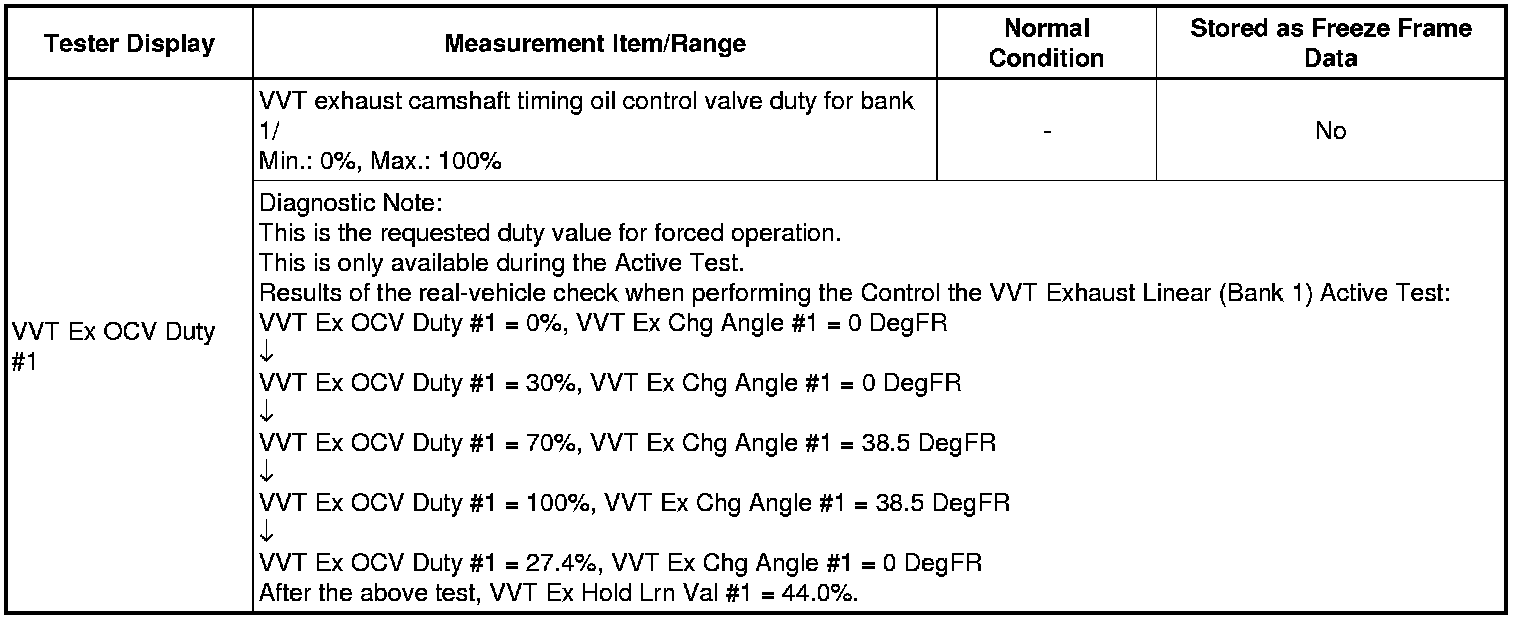

VVT Ex OCV Duty #1





13. Catalyst (Gas CAT Converter)

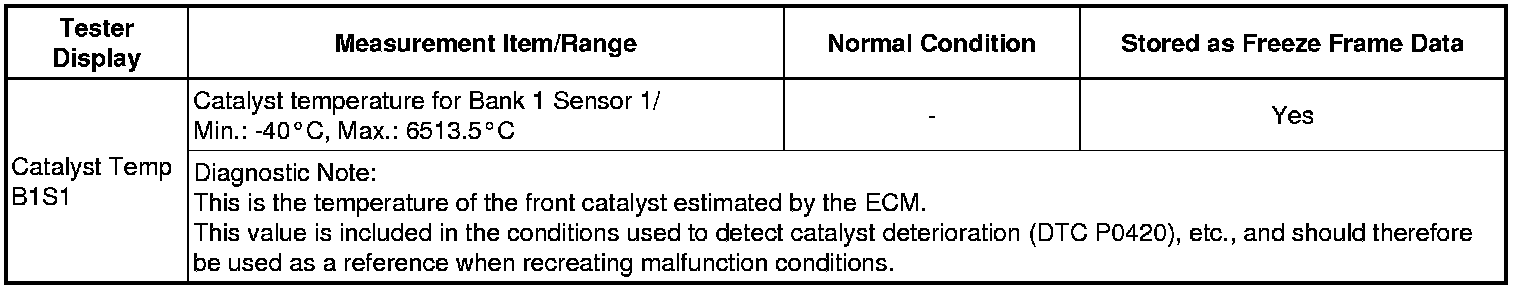

Catalyst Temp B1S1

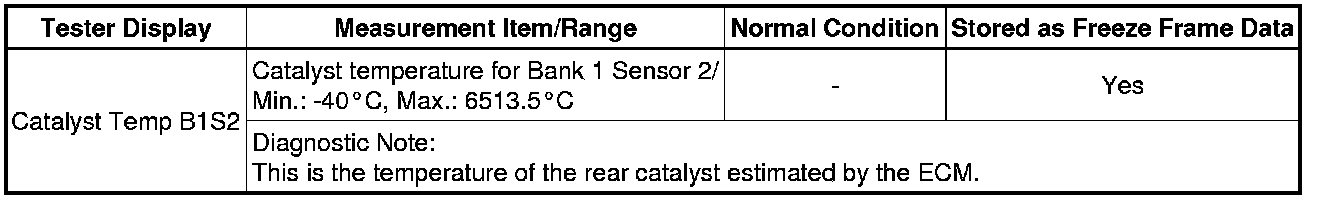

Catalyst Temp B1S2





14. Various Vehicle Conditions 2 (All Data)

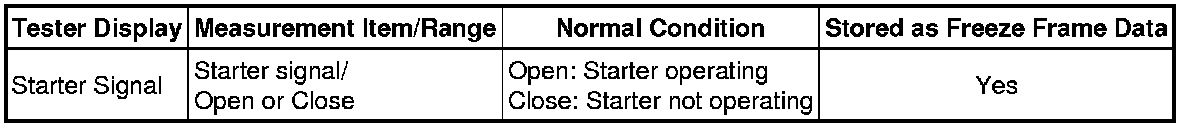

Starter Signal





Power Steering Signal





Neutral Position SW Signal

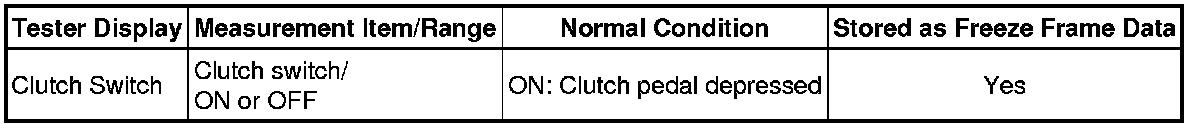

Clutch Switch

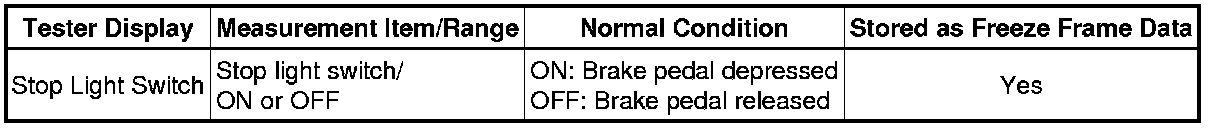

Stop Light Switch

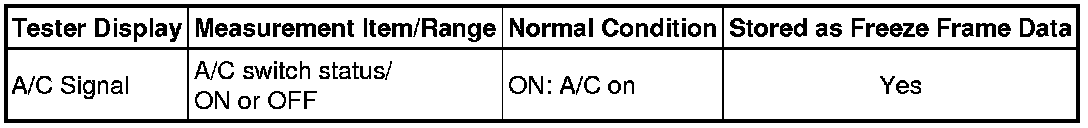

A/C Signal





Idle Up Signal

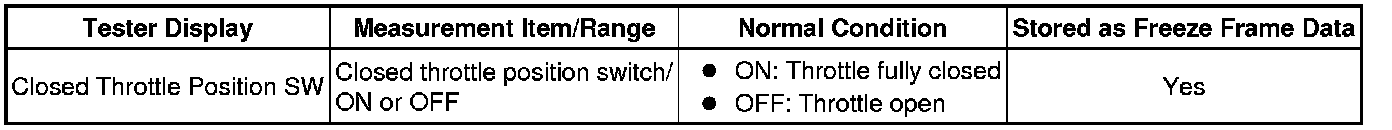

Closed Throttle Position SW

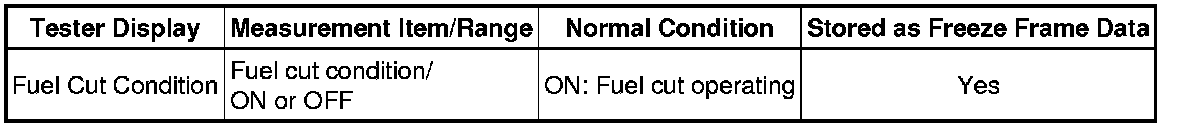

Fuel Cut Condition

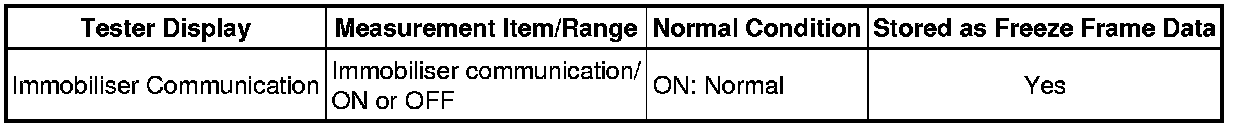

Immobiliser Communication

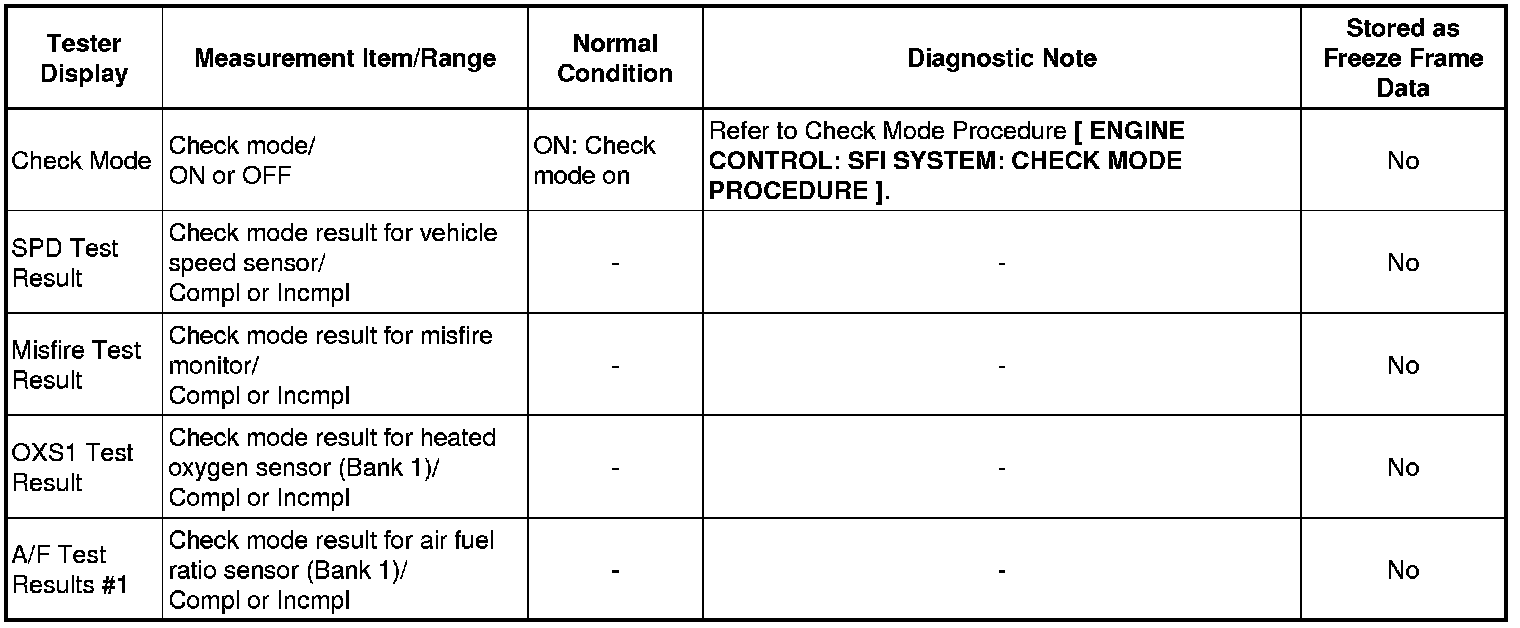

15. Check Mode (Check Mode)

Check Mode
