Home >> Scion >> 2011 >> tC L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Locations

Multiple Junction Connector: Locations

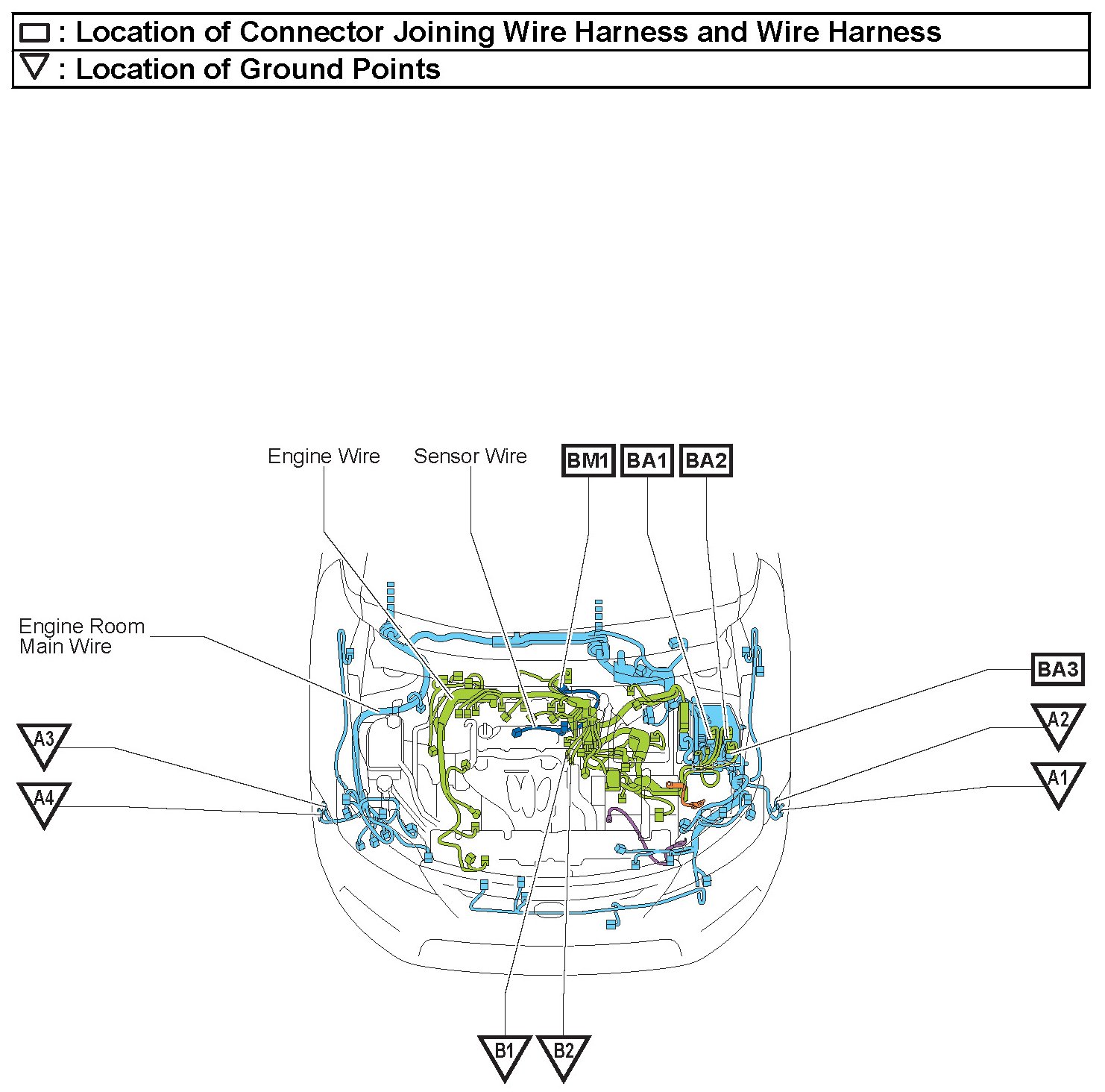

A1-B2, BA1-BM1:

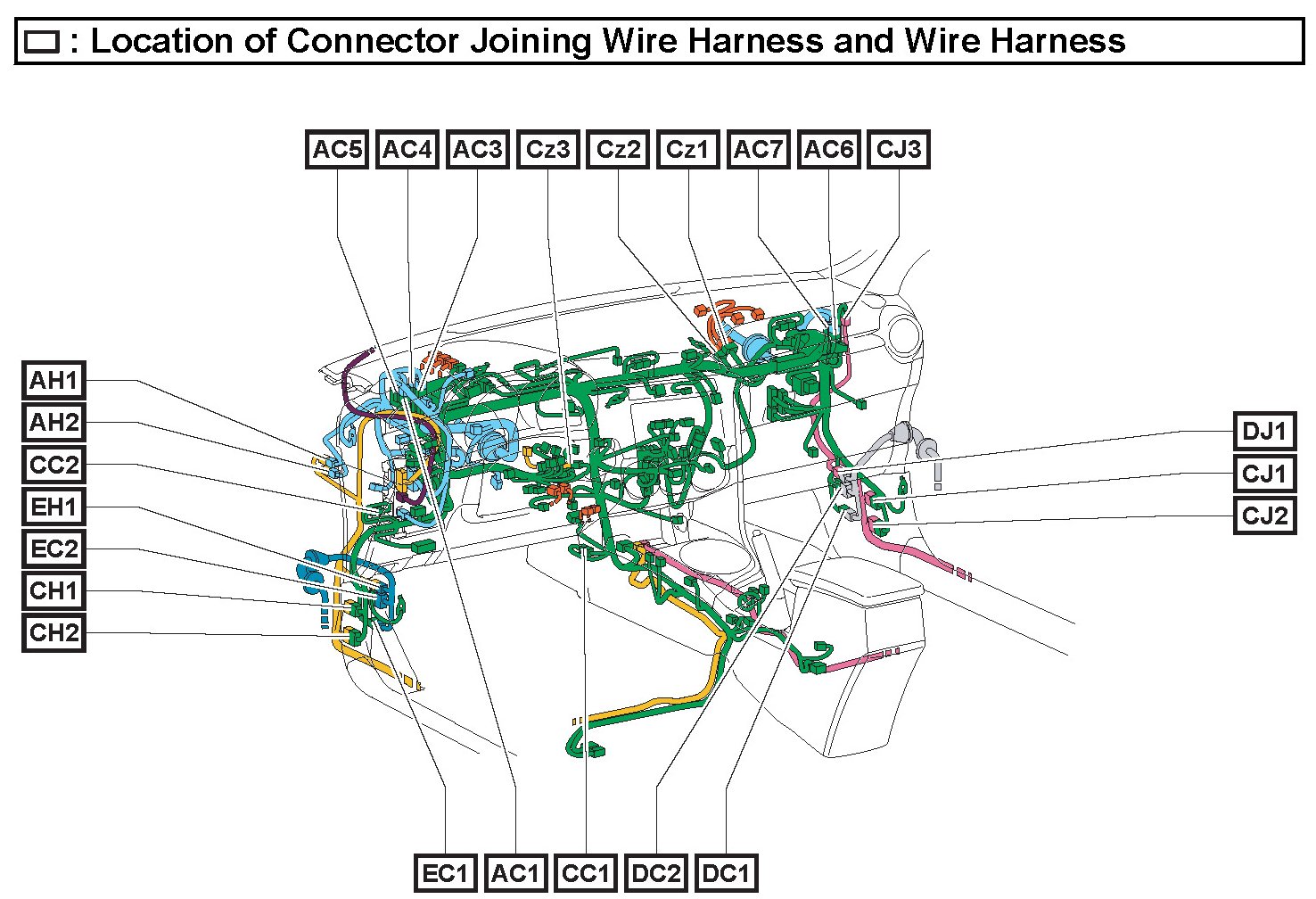

AC1-EH1:

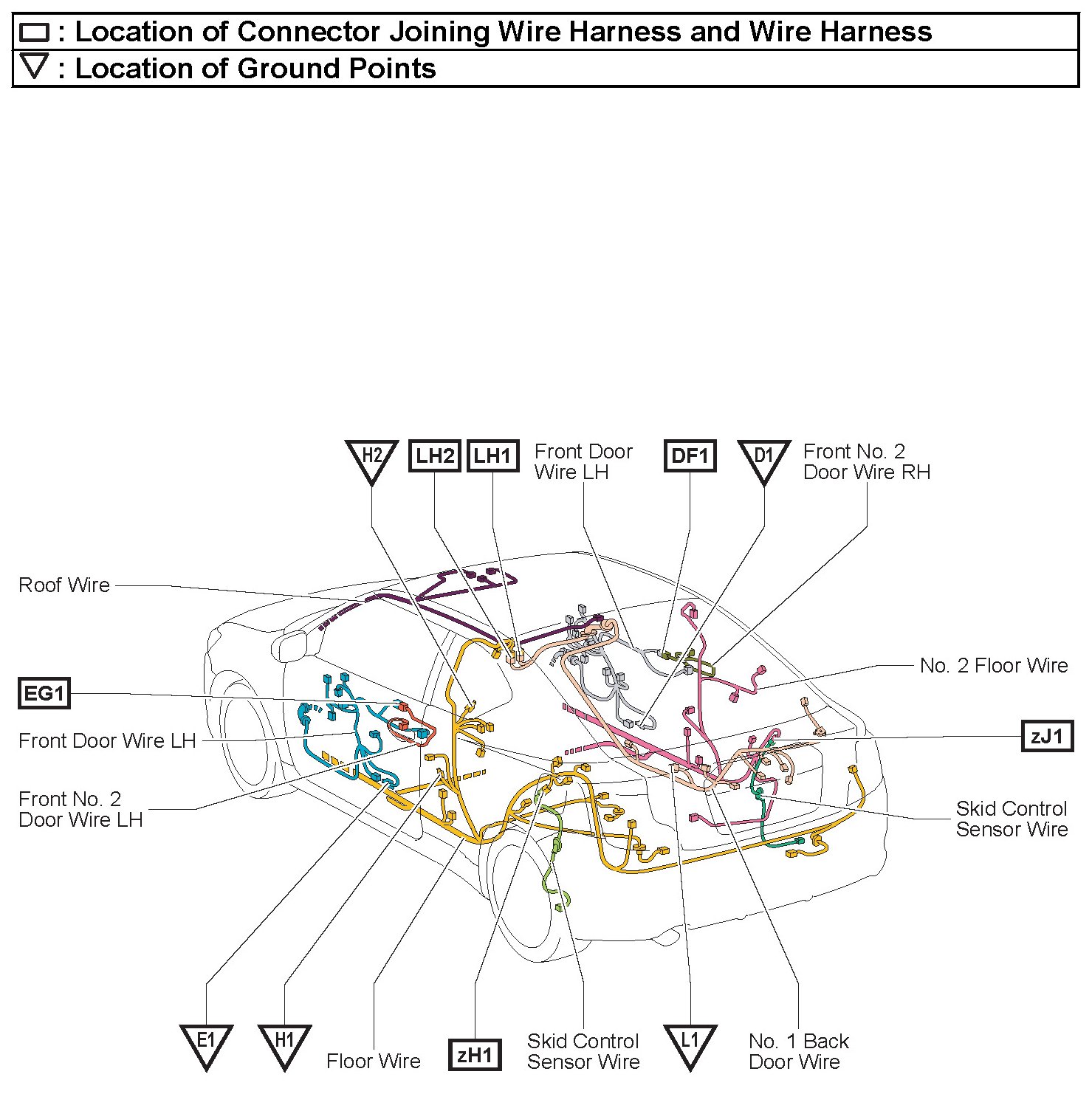

D1-L1, DF1-zJ1:

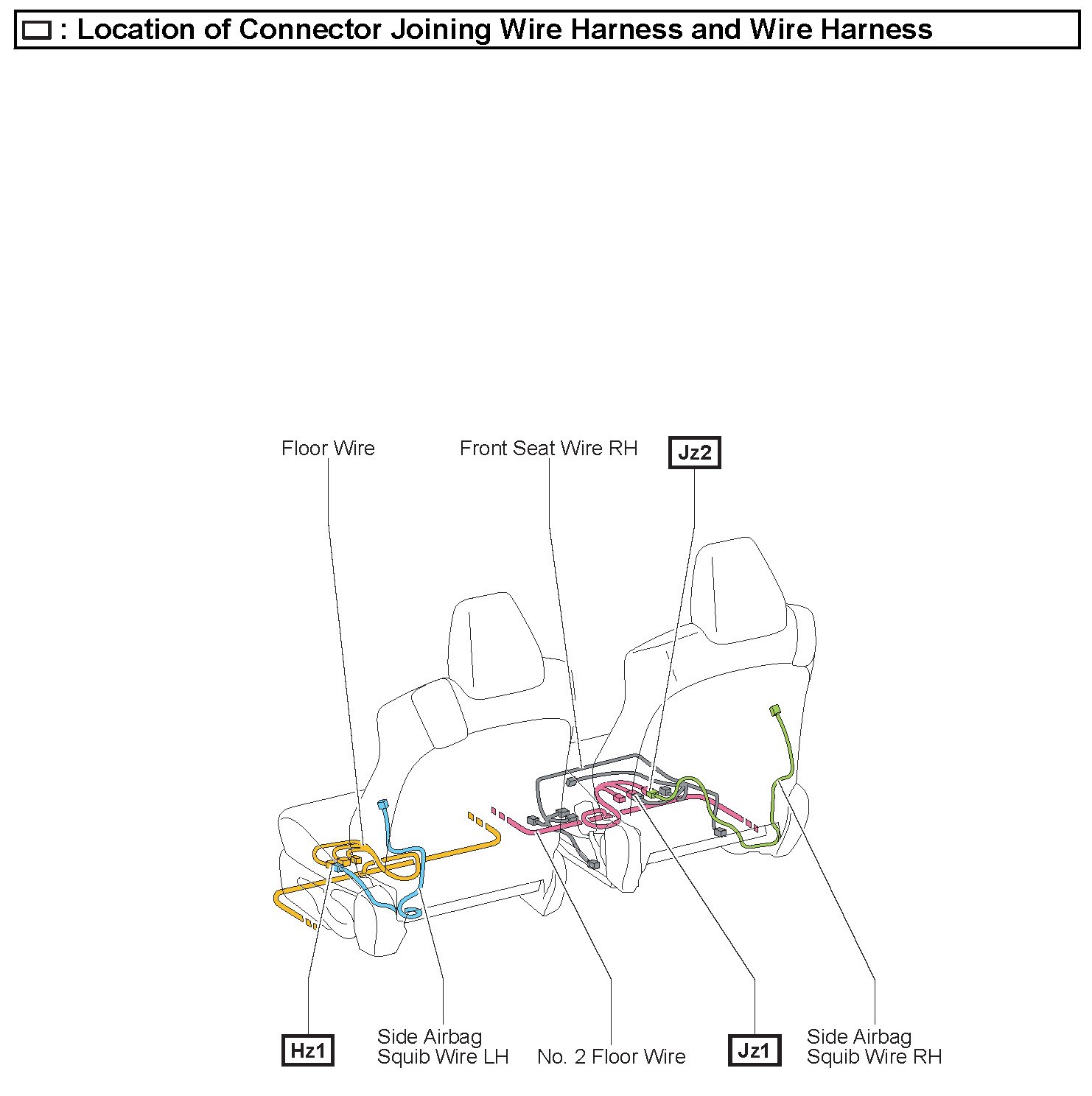

Hz1-Jz2:
