Room Light (w/o Sliding Roof)

LIGHTING (INT): ROOM LIGHT (w/o Sliding Roof): INSPECTION

1. INSPECT MAP LIGHT ASSEMBLY

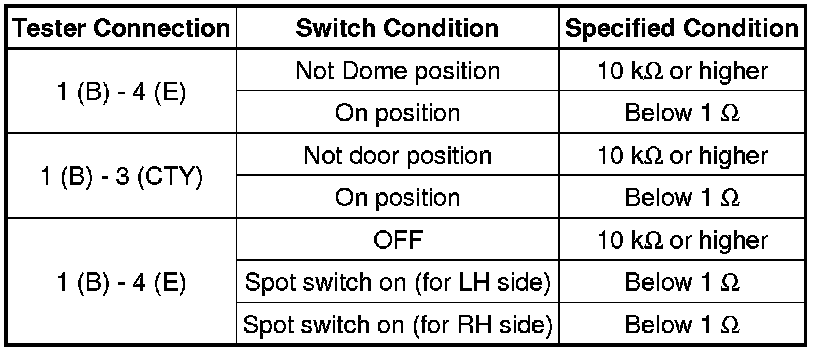

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





If the result is not as specified, replace the Map Light Assembly.
