Room Light (w/ Sliding Roof)

LIGHTING (INT): ROOM LIGHT (w/ Sliding Roof): INSPECTION

1. INSPECT MAP LIGHT ASSEMBLY

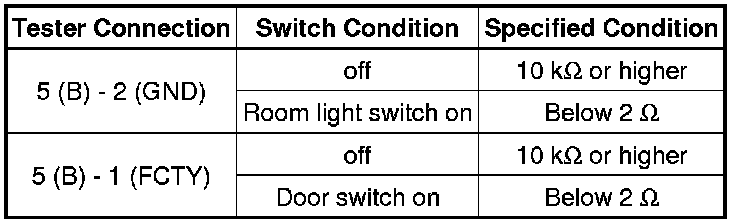

(a) Measure the resistance according to the value(s) in the table below.





OK:





If the result is not as specified, replace the map light assembly.

Text in Illustration
