Meter / Gauge System

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: DATA LIST / ACTIVE TEST

1. DATA LIST

HINT
Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTICE:
In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

(a) Warm up the engine.

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus:

(1) for Combination Meter: Body Electrical / Combination Meter / Data List.

(2) for Engine: Powertrain / Engine / Data List / All Data.

(3) for ABS/VSC/TRAC: Chassis / ABS/VSC/TRAC/ Data List / All Data.

(g) According to the display on the Techstream, read the Data List.

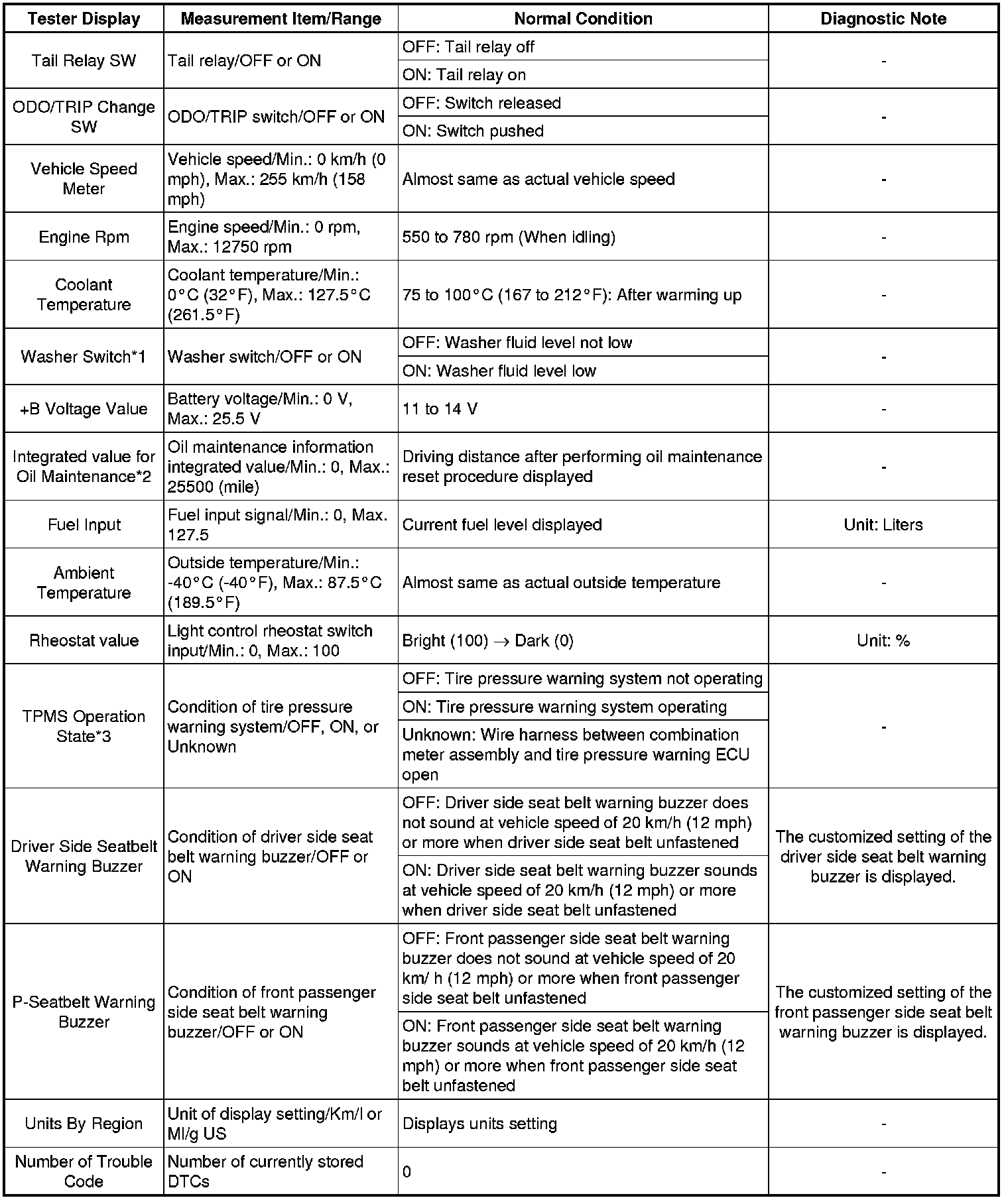

Combination Meter





* *1: w/ Washer Level Warning Light

* *2: w/ MAINT REQD Indicator Light

* *3: w/ Tire Pressure Warning System

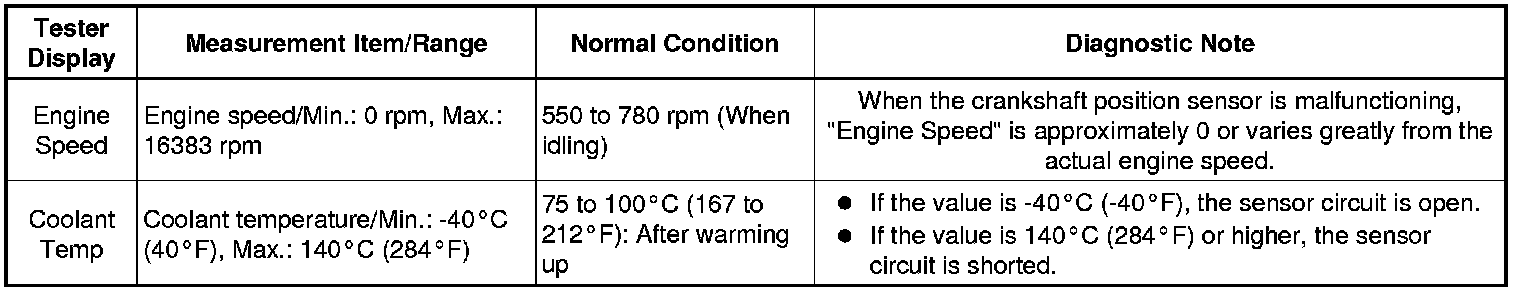

Engine

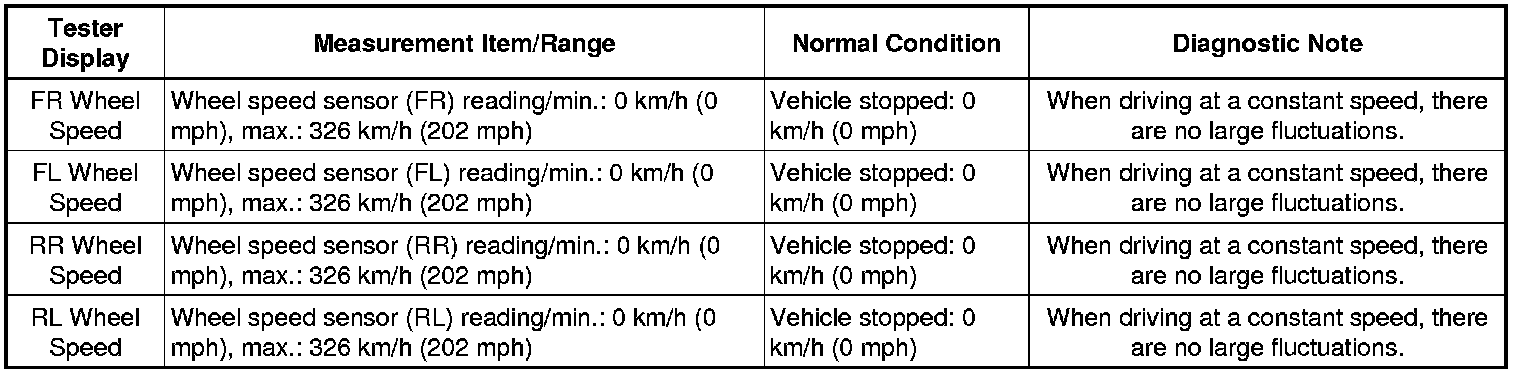

ABS/VSC/TRAC





2. ACTIVE TEST

Using the Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Combination Meter / Active Test.

(e) According to the display on the Techstream, perform the Active Test.

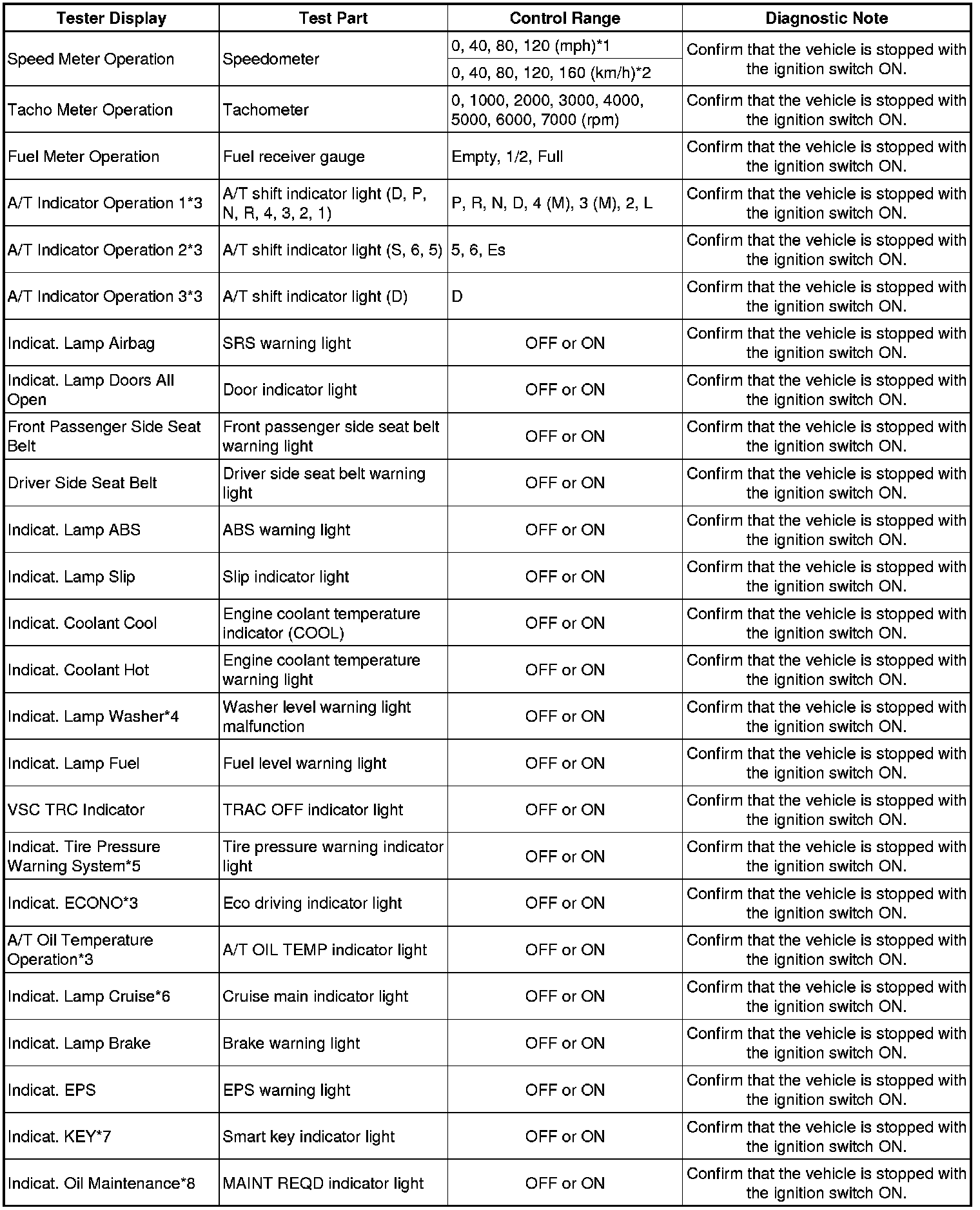

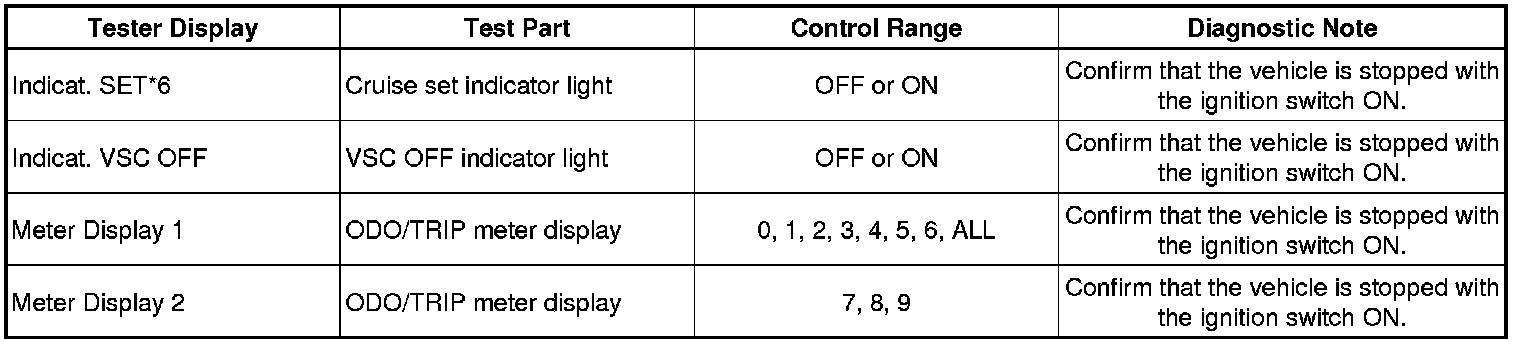

Combination Meter









* *1: for Canada

* *2: for U.S.A.

* *3: for Automatic Transaxle

* *4: w/ Washer Level Warning Light

* *5: w/ Tire Pressure Warning System

* *6: w/ Cruise Control System

* *7: w/ Smart Key System

* *8: w/ MAINT REQD Indicator Light
