Key Reminder Warning System

DOOR LOCK: KEY REMINDER WARNING SYSTEM: TERMINALS OF ECU

1. CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)





Text in Illustration





(a) Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly Removal.

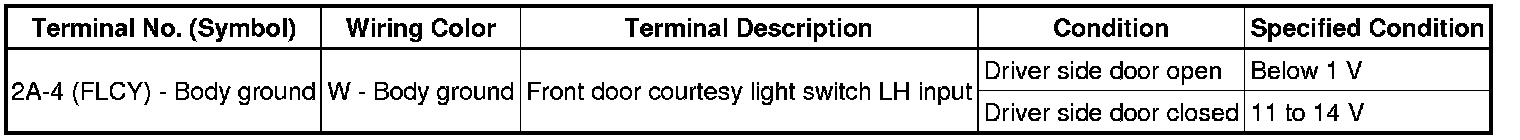

(b) Measure the voltage and resistance according to the value(s) in the table below.

HINT
Measure the values on the wire harness side with the connector disconnected.





If the result is not as specified, there may be a malfunction in the wire harness or instrument panel junction block assembly.

(c) Install the main body ECU (multiplex network body ECU) to the instrument panel junction block assembly Installation.

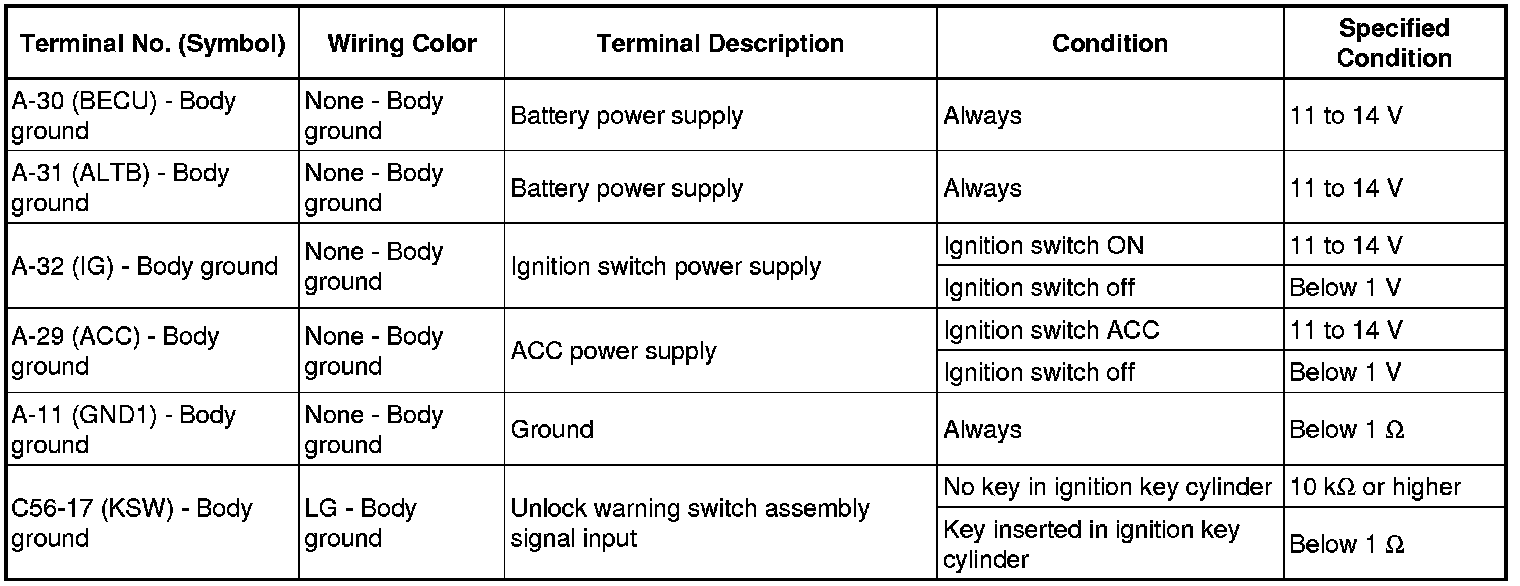

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the main body ECU (multiplex network body ECU) or instrument panel junction block assembly may have a malfunction.
