Torque Specifications





SPECIFICATIONS: HEATING / AIR CONDITIONING: TORQUE SPECIFICATIONS

REFRIGERANT LINE:





AIR CONDITIONING UNIT:

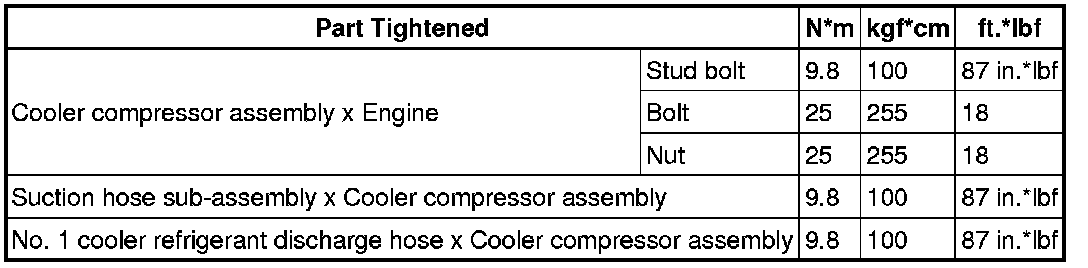

COMPRESSOR:

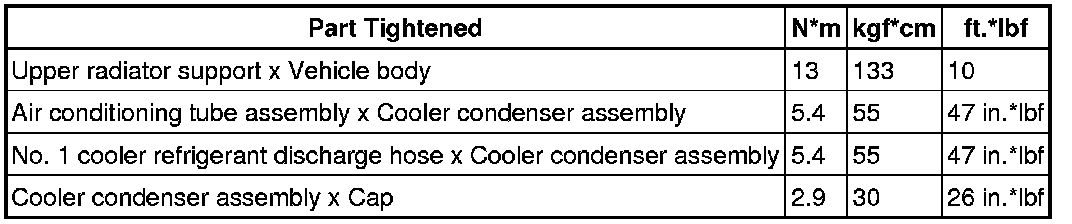

CONDENSER:





AIR CONDITIONING PRESSURE SENSOR:
