Control Assembly: Testing and Inspection

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL: INSPECTION

1. INSPECT NO. 1 HEATER CONTROL SUB-ASSEMBLY





(a) Check the heater control resistance.

(1) Using an ohmmeter, measure the resistance and check the results in accordance with the values in the table below.

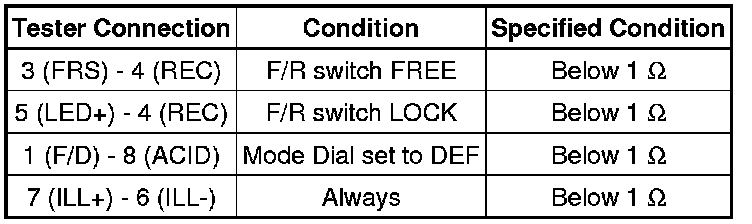

Standard Resistance:





If the result is not as specified, replace the No. 1 heater control sub-assembly.

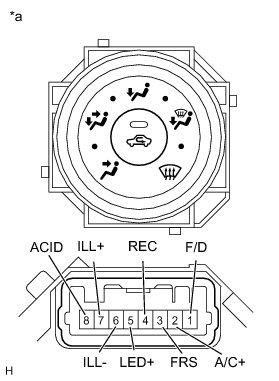

Text in Illustration





(b) Check the F/R indicator operation.

(1) Connect the positive (+) lead from the battery to terminal 2 (A/C+) and the negative (-) lead to terminal 4 (REC).

(2) Push the F/R switch in and check that the indicator lights up.

Standard:

Indicator lights up

If the result is not as specified, replace the heater control.

(c) Check the illumination operation.

(1) Connect the positive (+) lead from the battery to terminal 7 (ILL+) and the negative (-) lead to terminal 6 (ILL-) and check that the bulb illuminates.

Standard:

Bulb illuminates

If the result is not as specified, replace the bulb.

2. INSPECT NO. 2 HEATER CONTROL SUB-ASSEMBLY





(a) Check the heater control resistance.

(1) Using an ohmmeter, measure the resistance and check the results in accordance with the values in the table below.

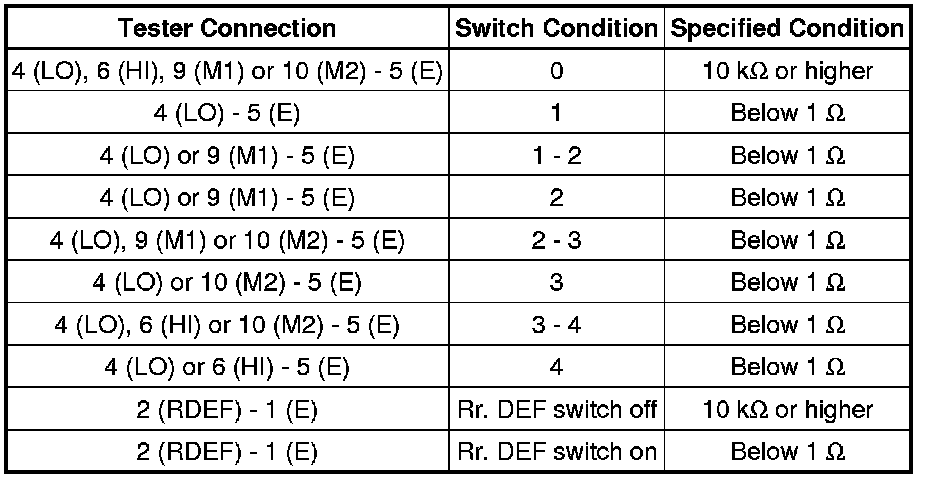

Standard Resistance:





If the result is not as specified, replace the No. 2 heater control sub-assembly.

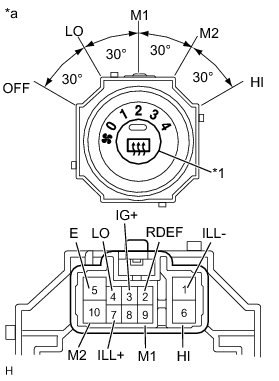

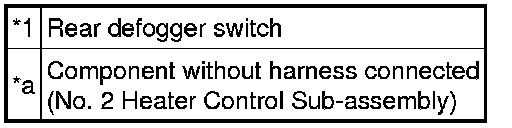

Text in Illustration





(b) Check the illumination operation.

(1) Connect the positive (+) lead from the battery to terminal 7 (ILL+) and the negative (-) lead to terminal 1 (ILL-) and check that the bulb illuminates.

Standard:

Bulb illuminates

If the result is not as specified, replace the bulb.

(c) Check the Rr. DEF indicator operation.

(1) Connect the positive (+) lead from the battery to terminal 3 (IG) and the negative (-) lead to terminal 5 (E).

(2) Push the Rr. DEF switch in and check that the indicator lights up.

Standard:

Indicator lights up

If the result is not as specified, replace the No. 2 heater control sub-assembly.

3. INSPECT NO. 3 HEATER CONTROL SUB-ASSEMBLY





(a) Check the heater control knob resistance.

(1) Using an ohmmeter, measure the resistance and check the results in accordance with the values in the table below.

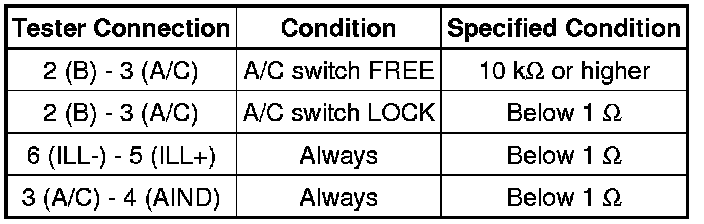

Standard Resistance:





If the result is not as specified, replace the No. 3 heater control sub-assembly.

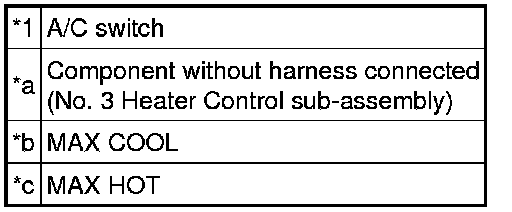

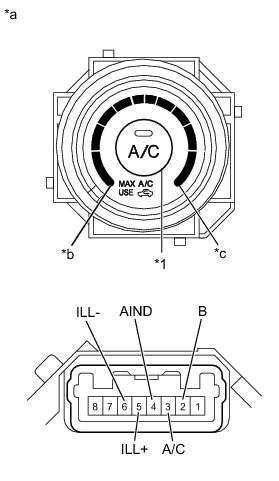

Text in Illustration





(b) Check the A/C indicator operation.

(1) Connect the positive (+) lead from the battery to terminal 2 (A/C+) and the negative (-) lead to terminal 4 (REC).

(2) Push the A/C switch in and check that the indicator lights up.

Standard:

Indicator lights up

If the result is not as specified, replace the No. 3 heater control sub-assembly.

(c) Check the illumination operation.

(1) Connect the positive (+) lead from the battery to terminal 5 (ILL+) and the negative (-) lead to terminal 6 (ILL-) and check that the bulb illuminates.

Standard:

Bulb illuminates

If the result is not as specified, replace the bulb.
