Electrical Specifications





SPECIFICATIONS: SEAT: SERVICE DATA

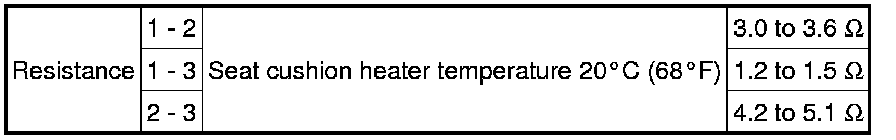

Front Seatback Heater

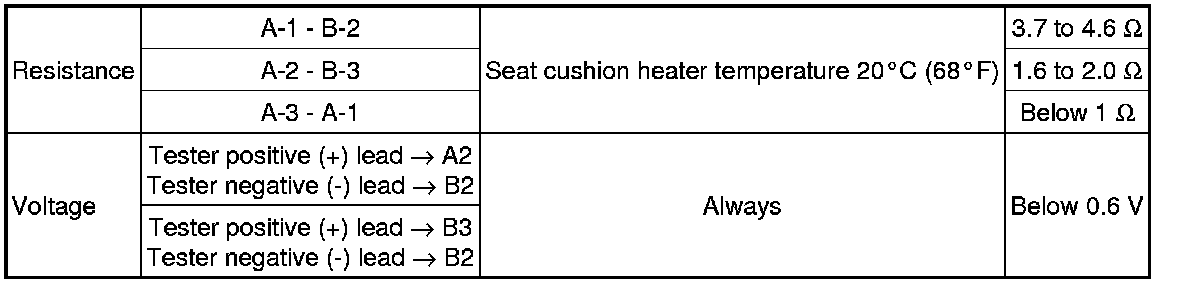

Front Seat Cushion Heater





HINT
As the circuit has a diode, perform the measurement with the tester in diode mode.
